Removal

AIR CONDITIONING: INFRARED RAY SENSOR: REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

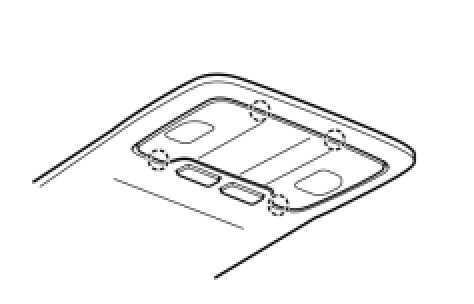

(a) Detach the 4 claws and remove the spot light lens.

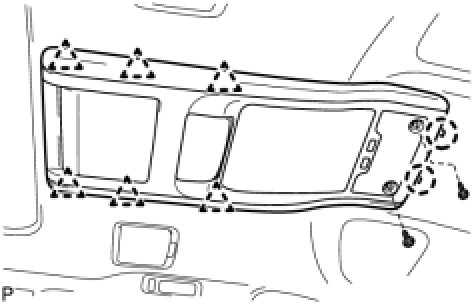

(b) Remove the 2 screws.

(c) Detach the 6 clips and 2 claws.

(d) Disconnect the 2 connectors and remove the roof console box.

2. REMOVE AIR CONDITIONING INFRARED RAYS SENSOR

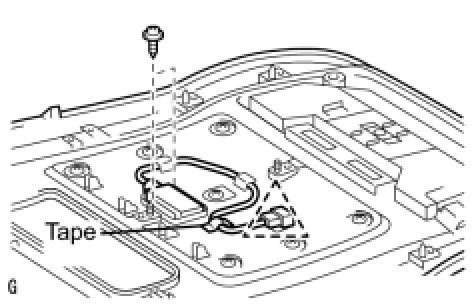

(a) Remove the tape.

(b) Remove the 2 screws.

(c) Detach the clamp and remove the sensor.
