Electric Parking Brake Switch: Testing and Inspection

PARKING BRAKE: ELECTRIC PARKING BRAKE SWITCH: INSPECTION

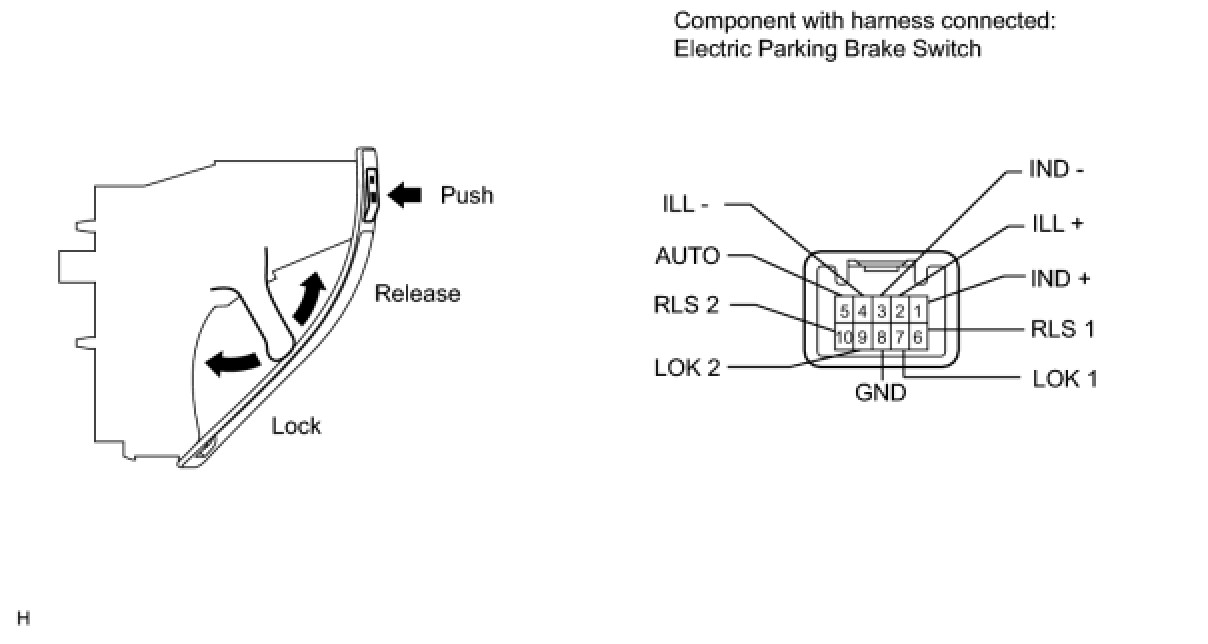

1. INSPECT ELECTRIC PARKING BRAKE SWITCH ASSEMBLY





(a) Measure the resistance between the terminals when the switch is operated.

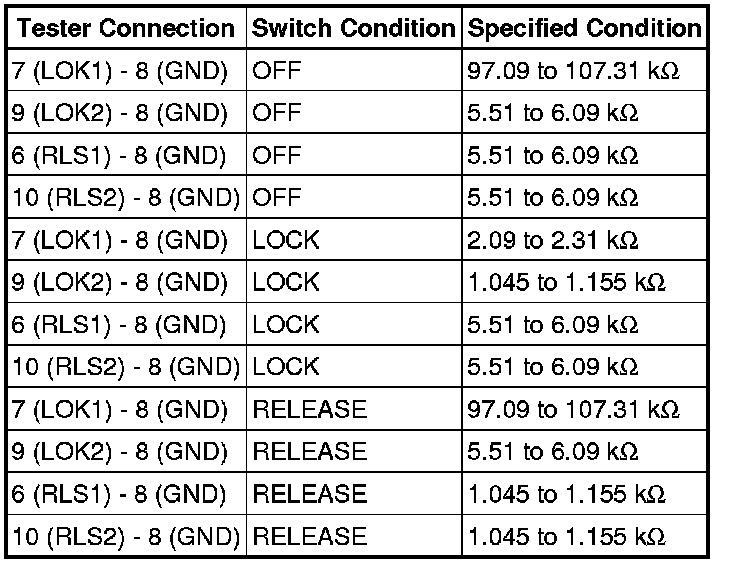

Standard resistance:





If the result is not as specified, replace the switch.
