Installation

PARKING BRAKE: ELECTRIC PARKING BRAKE SWITCH: INSTALLATION

1. INSTALL ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

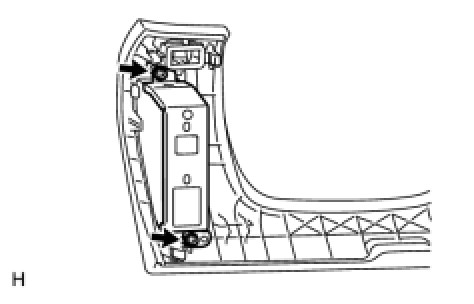

(a) Install the bracket to the No. 1 instrument panel safety pad with the 2 screws.

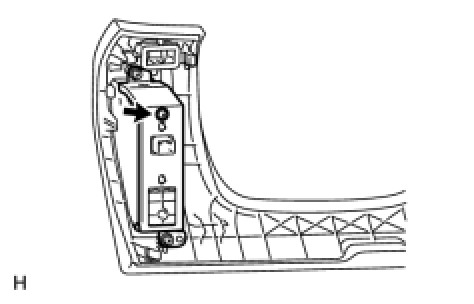

(b) Install the electric parking brake switch to the No. 1 instrument panel safety pad.





(c) Install the screw.

(d) Connect the connector.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

3. INSTALL SWITCH BASE HOLE COVER





(a) Attach the claw and install the cover to the instrument panel safety pad.

4. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

5. INSTALL INSTRUMENT SIDE PANEL LH Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

8. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.

9. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
