Power Seat Switch (for 5-Passenger with Ottoman)

SEAT: POWER SEAT SWITCH (for 5-Passenger with Ottoman): INSPECTION

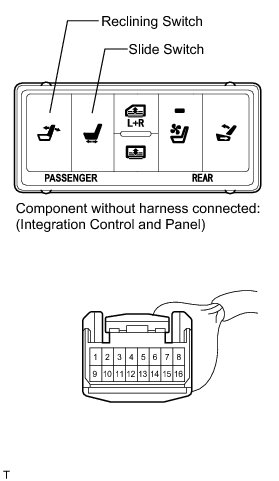

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY

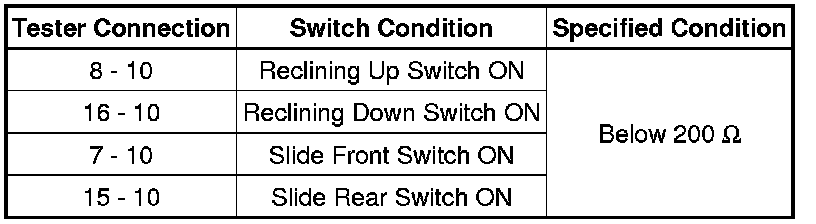

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the integration control and panel.
