Power Seat Switch (except 5-Passenger with Ottoman)

SEAT: POWER SEAT SWITCH (except 5-Passenger with Ottoman): INSPECTION

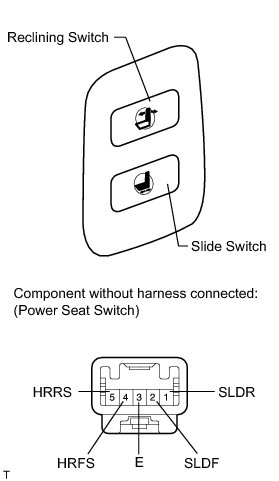

1. INSPECT POWER SEAT SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

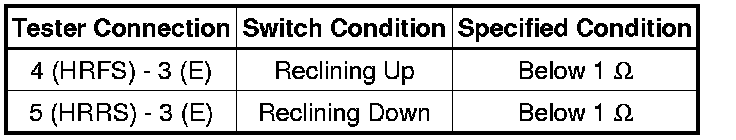

Standard resistance (Reclining switch):

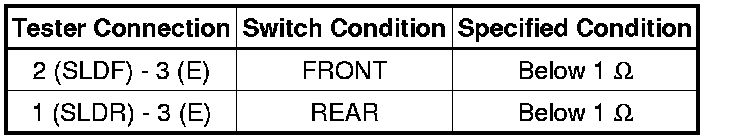

Standard resistance (Slide switch):





If the result is not specified, replace the power seat switch assembly.
