Removal

SEAT: POWER SEAT SWITCH (for 5-Passenger with Ottoman): REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

4. REMOVE NO. 3 BOX PANEL Removal

5. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY Removal

6. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

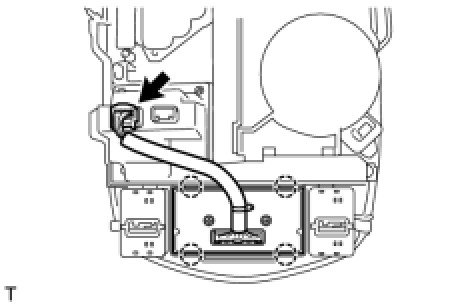

(a) Disconnect the connector.

(b) Detach the 4 claws and remove integration control and panel.
