Removal

DOOR LOCK: DOOR CONTROL SWITCH: REMOVAL

1. REMOVE DOOR CONTROL SWITCH ASSEMBLY

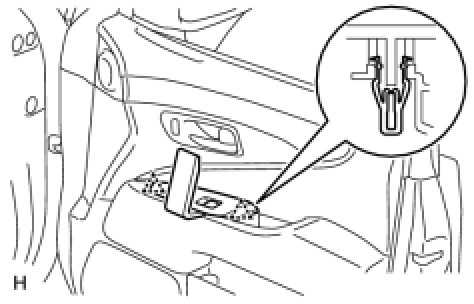

(a) Using a moulding remover, detach the 2 clamps and armrest base assembly.





(b) Disconnect the 2 connectors.

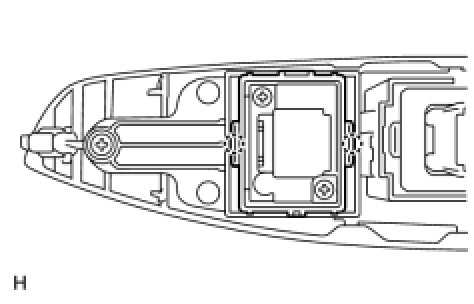

(c) Detach the 2 claws and remove the door control switch.
