Collision Avoidance System Switch: Testing and Inspection

PRE-COLLISION: PRE-COLLISION BRAKE CANCEL SWITCH: INSPECTION

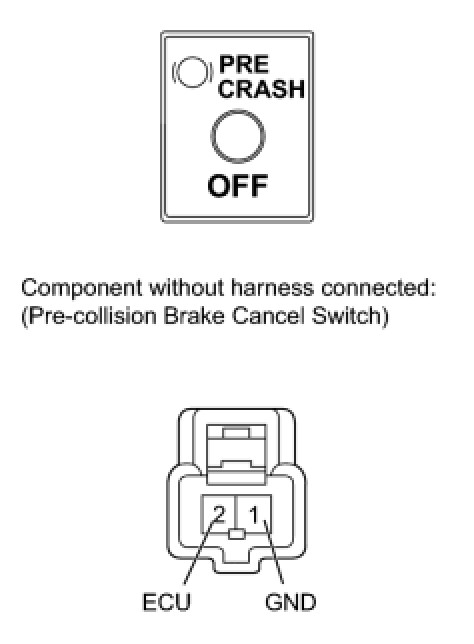

1. INSPECT PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLY

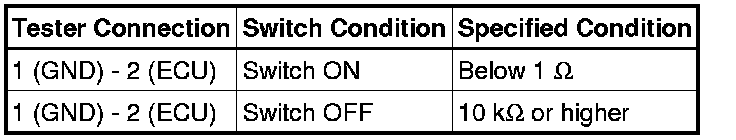

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the switch assembly.
