Installation

PRE-COLLISION: PRE-COLLISION BRAKE CANCEL SWITCH: INSTALLATION

1. INSTALL PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLY

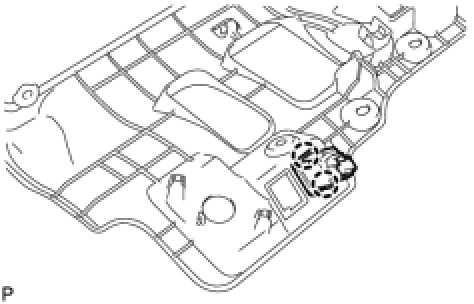

(a) Attach the 2 claws to install the switch.

2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
