Lexus
>>
2012
>>
LS 460 AWD V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Accessories and Optional Equipment
>>
Collision Avoidance Sensor
>>
Locations
>>
Pre-Collision System (w/o Driver Monitor Camera)
Pre-Collision System (w/o Driver Monitor Camera)

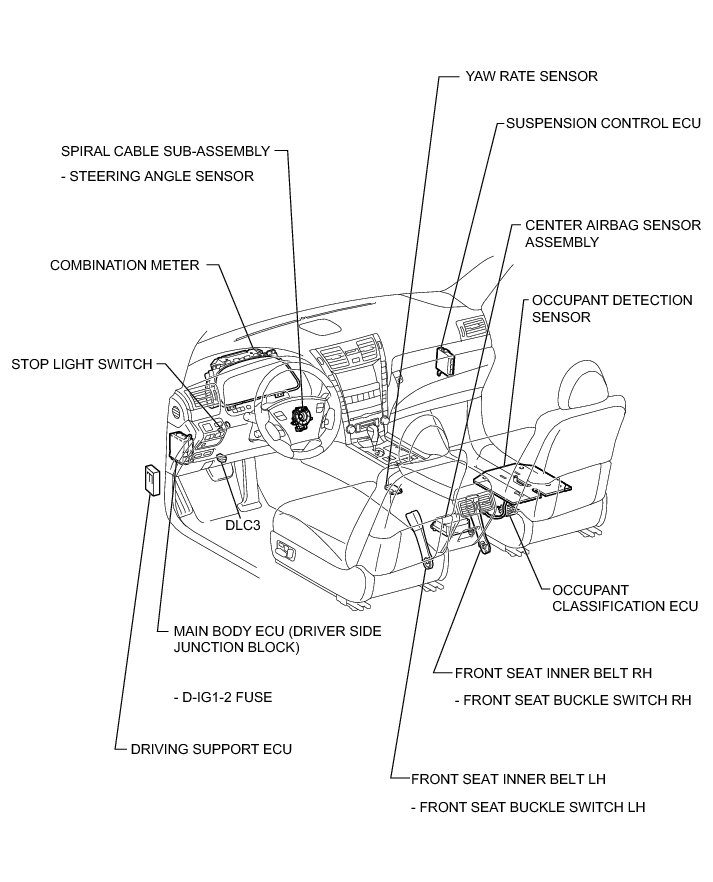

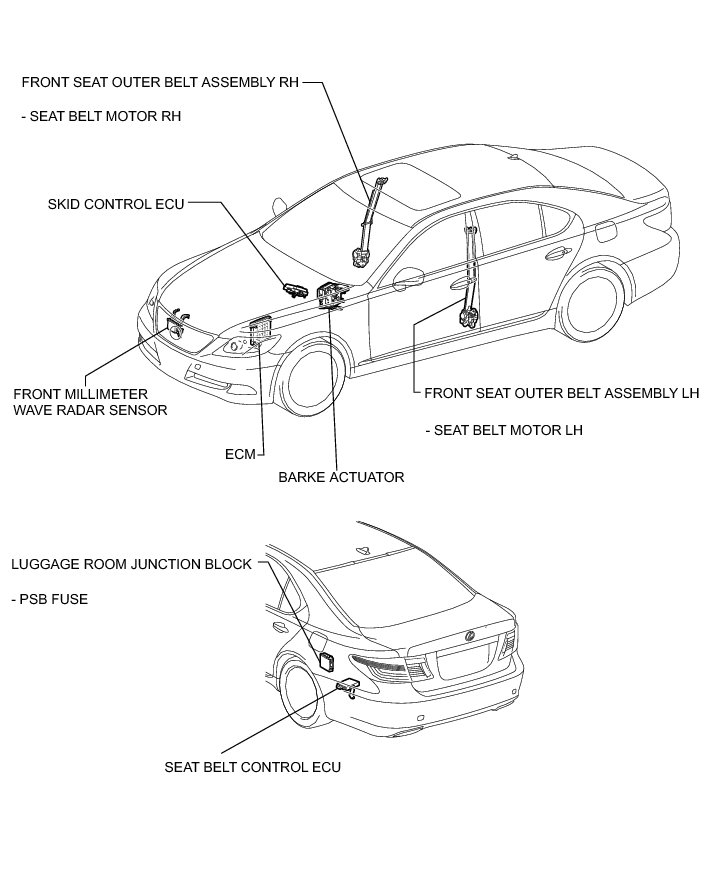

PRE-COLLISION: PRE-COLLISION SYSTEM (w/o Driver Monitor Camera): PARTS LOCATION
