Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Collision Avoidance Sensor >> Locations >> Pre-Collision System (w/ Driver Monitor Camera)

Pre-Collision System (w/ Driver Monitor Camera)

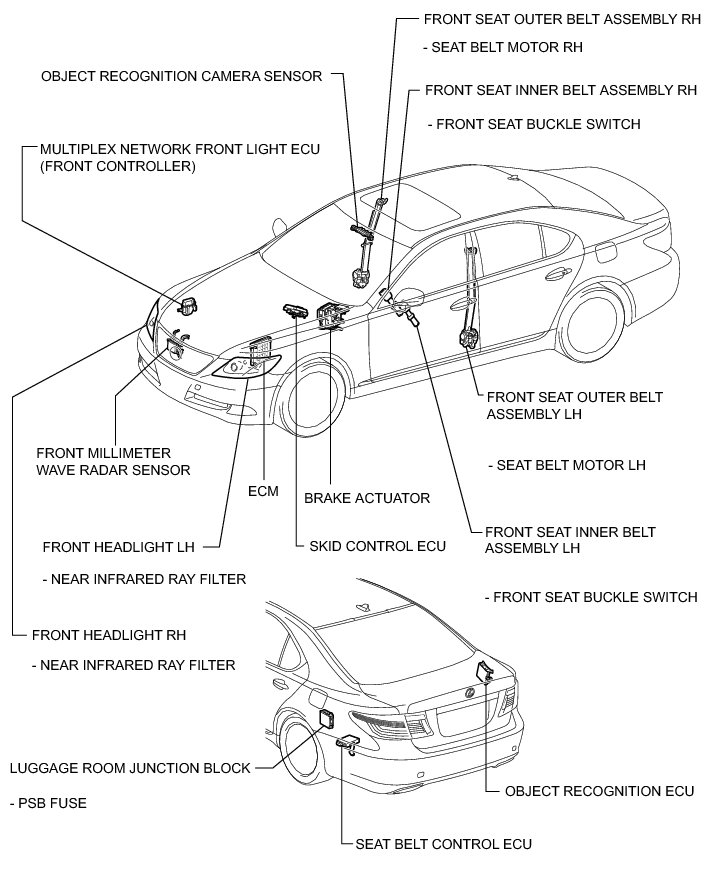

PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor Camera): PARTS LOCATION
