Seat Belt Warning System

SEAT BELT: SEAT BELT WARNING SYSTEM: DATA LIST / ACTIVE TEST

1. PERFORM ACTIVE TEST

HINT
Using the Techstream to perform Active Test allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Combination Meter / Active Test.

(e) According to display on the Techstream, perform the "Active Test".

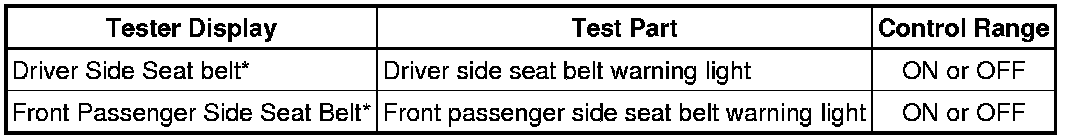

Combination Meter:





HINT
*: Confirm that the vehicle is stopped with the engine idling.
