Seat Belt Warning System

SEAT BELT: SEAT BELT WARNING SYSTEM: TERMINALS OF ECU

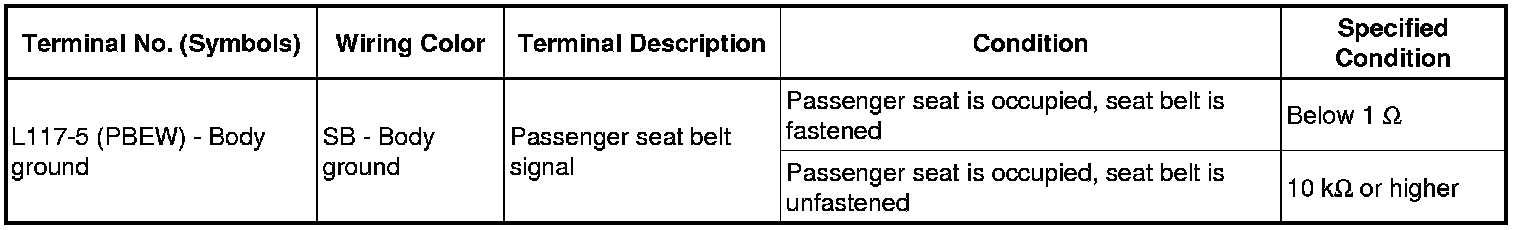

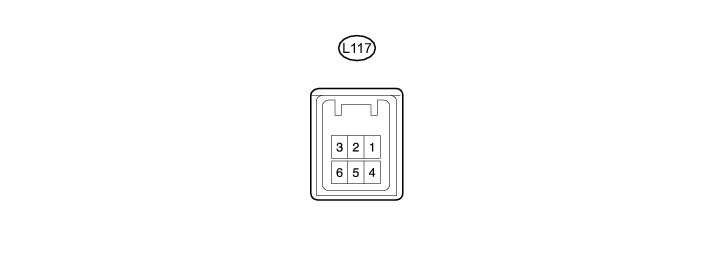

1. CHECK No. 1 METER ECU





(a) Measure the resistance according to the value(s) in the table below.





* If the result is not as specified, the ECU may have a malfunction.

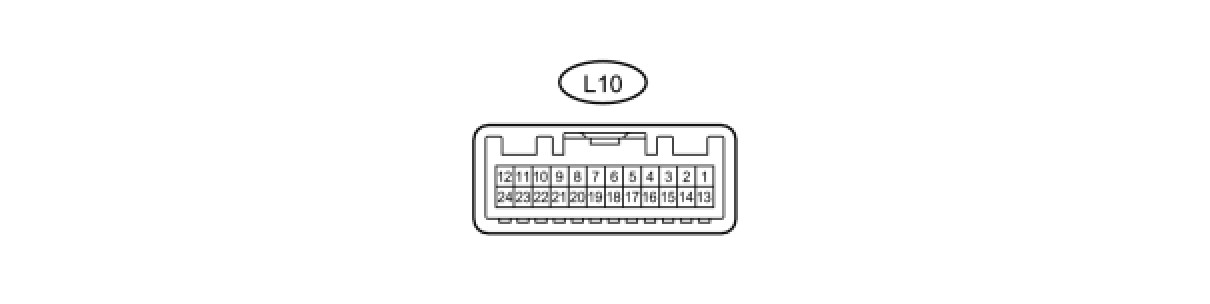

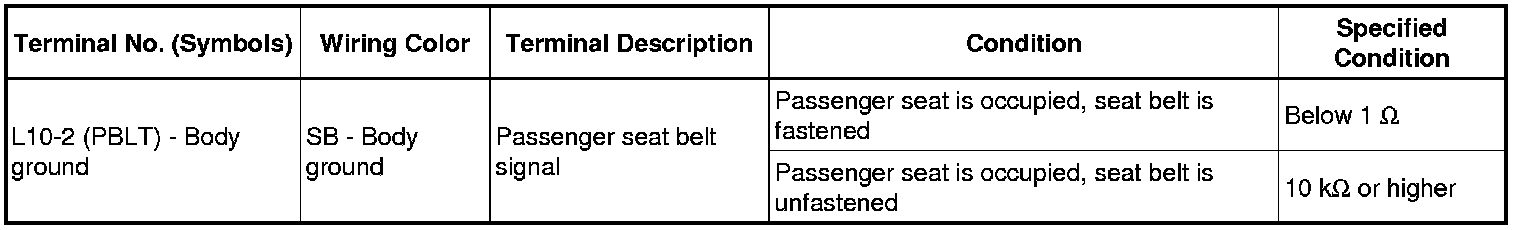

2. CHECK INTEGRATION CONTROL AND PANEL (w/o Multi-display)





(a) Measure the resistance according to the value(s) in the table below.





* If the result is not as specified, the panel may have a malfunction.

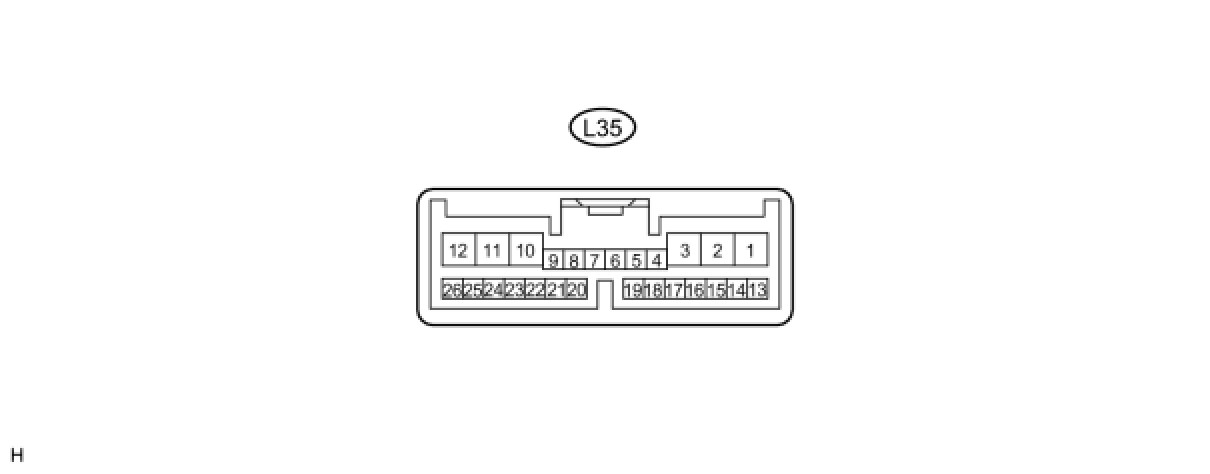

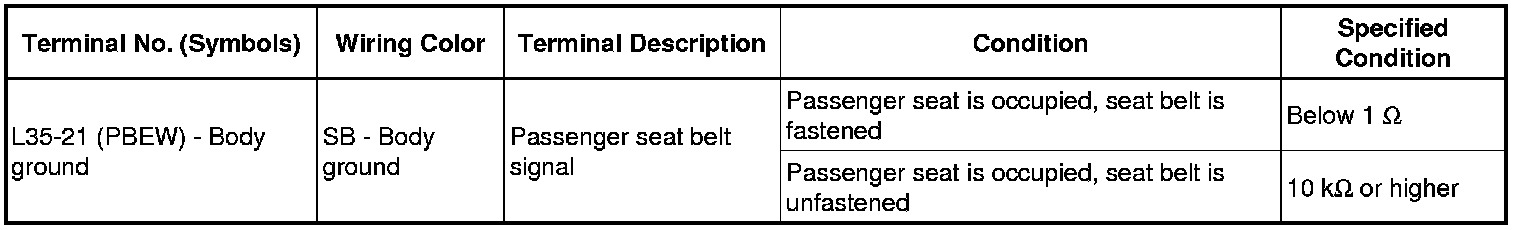

3. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY (w/ Multi-display)





(a) Measure the resistance according to the value(s) in the table below.





* If the result is not as specified, the display may have a malfunction.

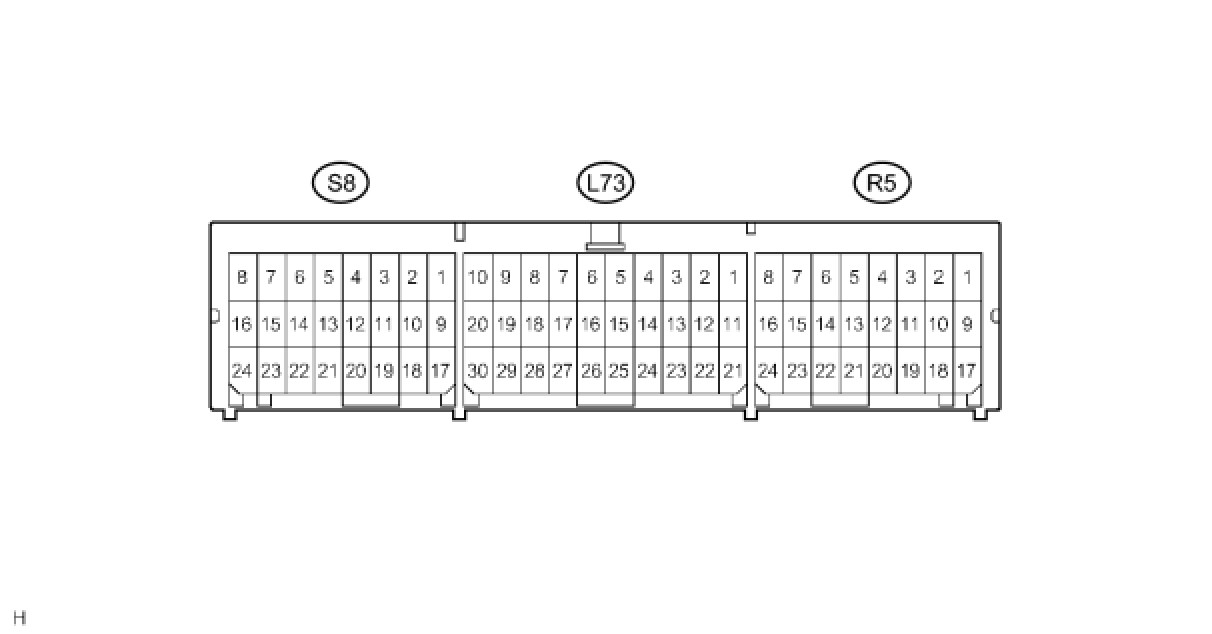

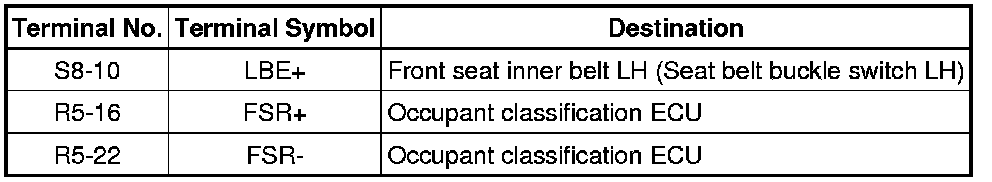

4. CENTER AIRBAG SENSOR

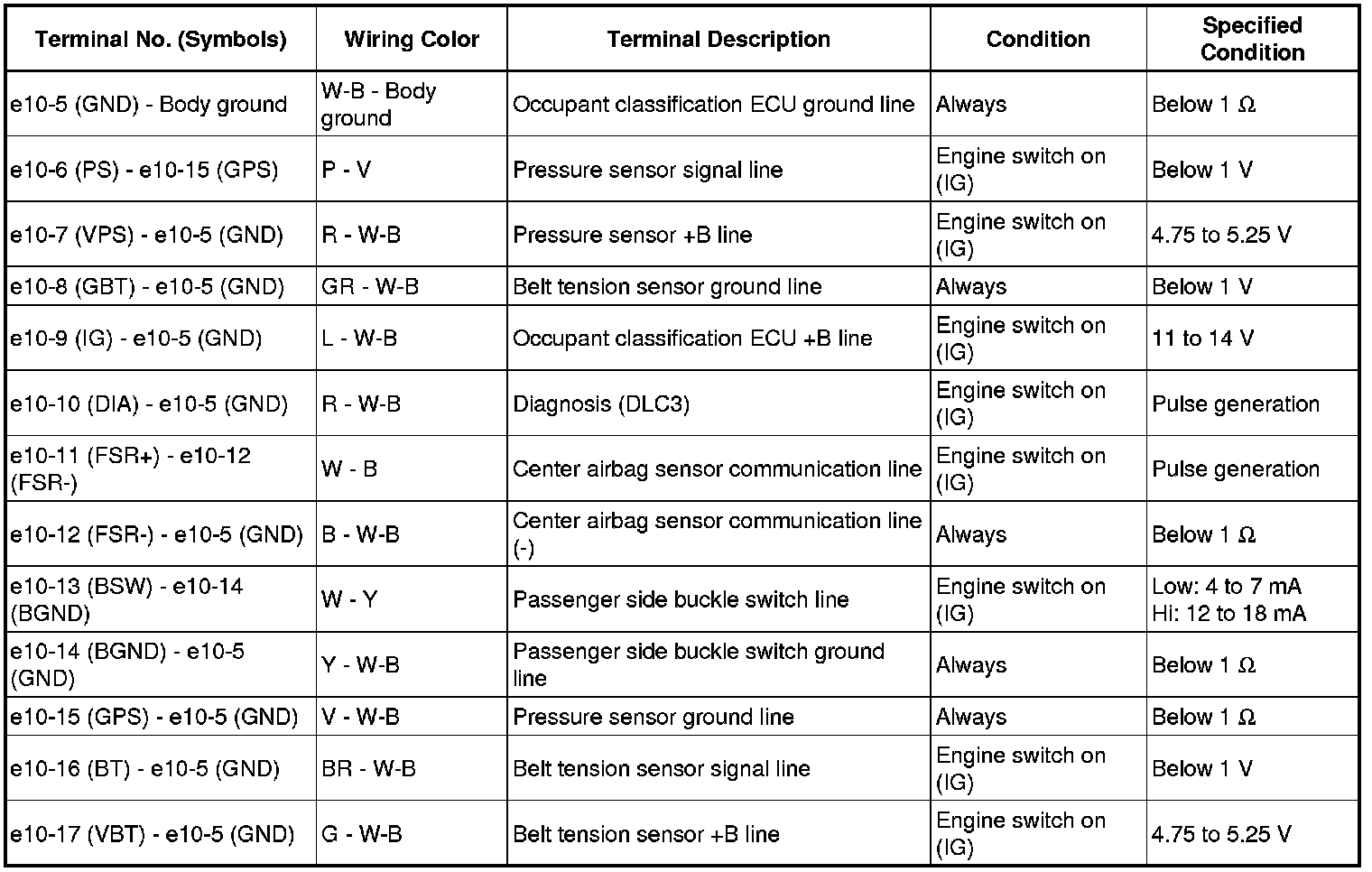

5. CHECK OCCUPANT CLASSIFICATION ECU





(a) Measure the resistance and voltage according to the value(s) in the table below.





* If the result is not as specified, the ECU may have a malfunction.
