Front Seat Inner Belt Assembly

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

(a) Check the buckle switch.

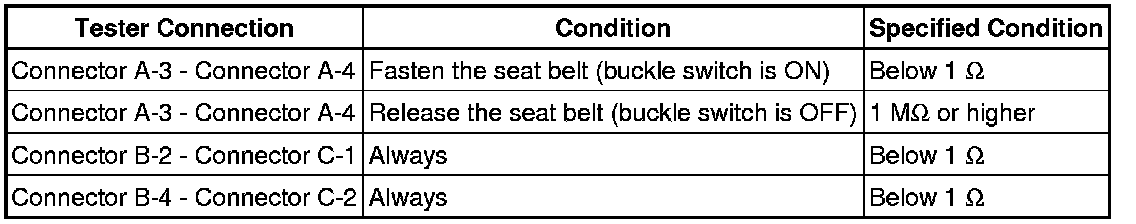

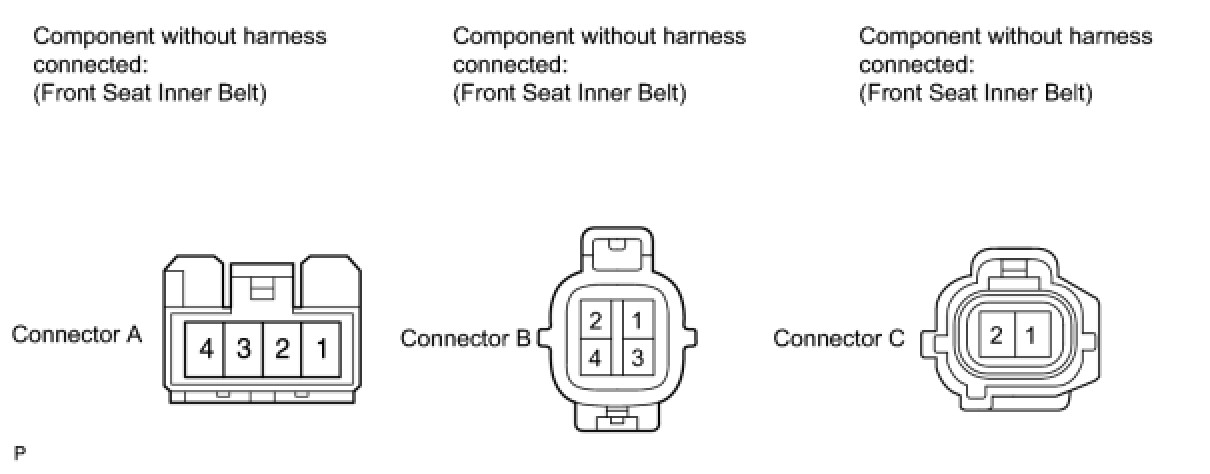

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the inner belt assembly.





(b) Check that the LED illuminates.

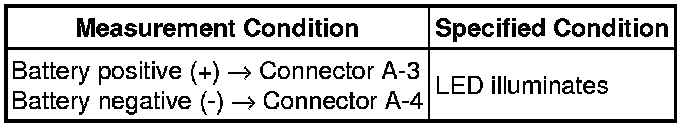

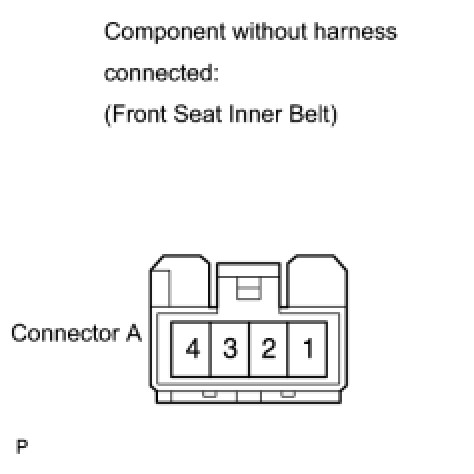

(1) Apply battery voltage to the front seat inner belt and check that the LED illuminates.

OK:





If the result is not as specified, replace the inner belt assembly.

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH





(a) Check the buckle switch.

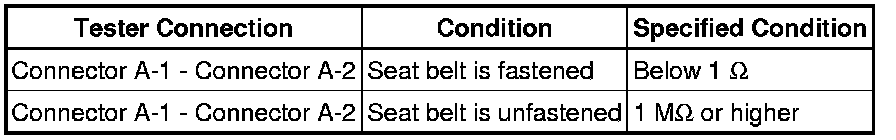

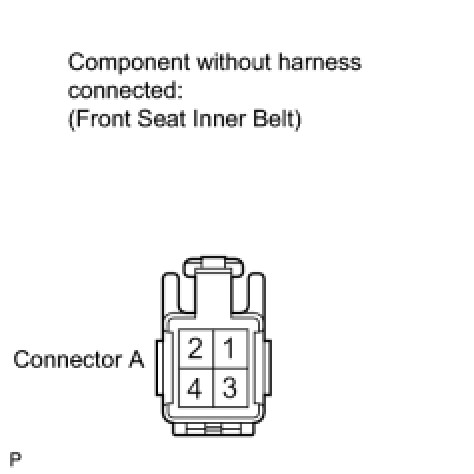

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the inner belt assembly.





(b) Check that the LED illuminates.

(1) Apply battery voltage to the front seat inner belt and check that the LED illuminates.

OK:





If the result is not as specified, replace the inner belt assembly.
