Removal

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for 5-Passenger with Ottoman): REMOVAL

1. REMOVE REAR SEAT ASSEMBLY

(a) Remove the rear seat assembly Removal.

2. REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY

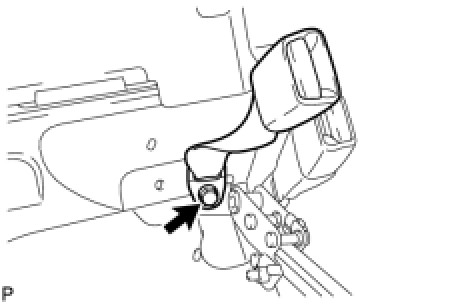

(a) Remove the bolt and seat belt.

3. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

(a) Remove the bolt and belt.





4. REMOVE REAR SEAT INNER BELT ASSEMBLY LH

(a) Remove the bolt and belt.
