SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for 5-Passenger with Ottoman): INSTALLATION

1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH





(a) Install the seat belt with the bolt.

Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

2. INSTALL REAR SEAT INNER BELT ASSEMBLY RH





(a) Install the seat belt with the bolt.

Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

3. INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY





(a) Install the belt with the bolt.

Torque : 42 Nm (428 kgf-cm, 31 ft-lbf)

NOTICE:

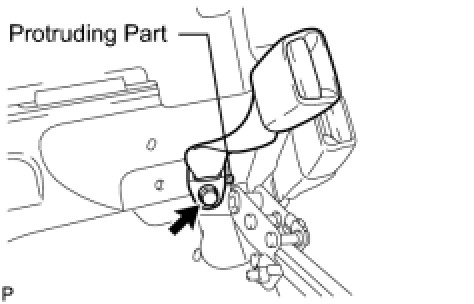

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

4. INSTALL REAR SEAT ASSEMBLY

(a) Install the rear seat assembly Installation.
