Removal

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY Removal

2. REMOVE FRONT SEAT ASSEMBLY

(a) Remove the front seat assembly Removal.

3. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

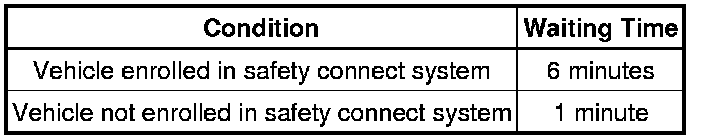

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:

* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

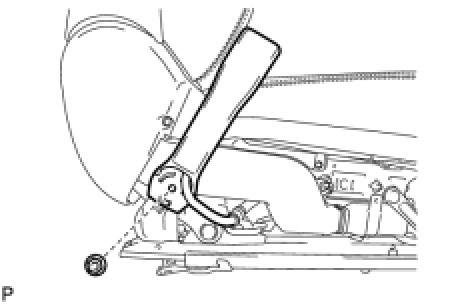

5. REMOVE FRONT SEAT INNER BELT ASSEMBLY

(a) for Driver Seat:

Disconnect the 3 connectors and detach the 5 clamps.

(b) for Passenger Seat:

Disconnect the 2 connectors and detach the clamp.
