Installation

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: INSTALLATION

HINT
* A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY





(a) for 4-Passenger with Ottoman:

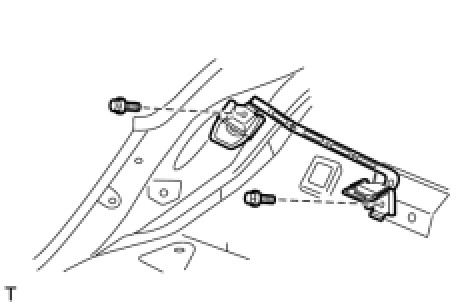

(1) for Passenger Side:

Install the anchor bracket with the 2 bolts.

Torque : 33 Nm (337 kgf-cm, 24 ft-lbf)

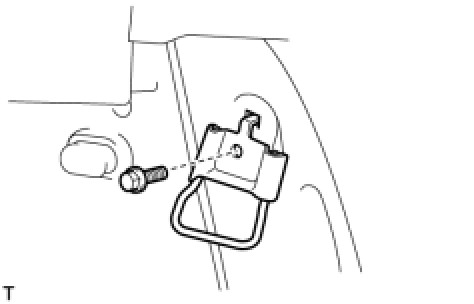

(2) for Driver Side:





Install the anchor bracket with the bolt.

Torque : 33 Nm (337 kgf-cm, 24 ft-lbf)

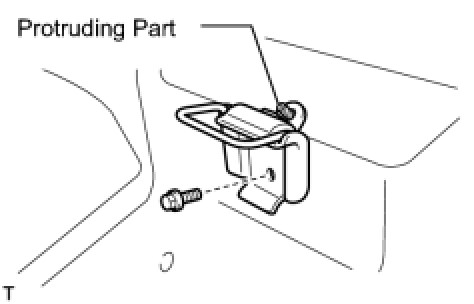

(b) Except 4-Passenger with Ottoman:

Align the claw with the positioning hole and install the 2 anchor brackets with the 2 bolts.

Torque : 33 Nm (337 kgf-cm, 24 ft-lbf)

2. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY INNER





(a) Except 4-Passenger with Ottoman:

(1) Align the hole with the positioning pin and install the 2 anchor brackets with the 2 bolts.

Torque : 33 Nm (337 kgf-cm, 24 ft-lbf)





(b) for 4-Passenger with Ottoman:

Align the hole with the positioning pin and install the anchor bracket with the bolt.

Torque : 33 Nm (337 kgf-cm, 24 ft-lbf)

3. INSTALL REAR SEAT ASSEMBLY

(a) for Power Seat:

Install the rear seat assembly Installation.

(b) for Ottoman:

Install the rear seat assembly Installation.

(c) for Fixed Seat Type:

Install the rear seat assembly Installation.
