Installation

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT PASSENGER AIRBAG ASSEMBLY: INSTALLATION

1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

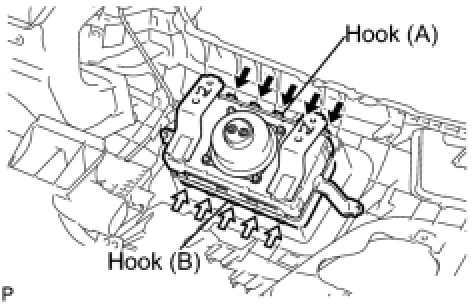

(a) Attach the 5 hooks (A).





(b) Attach the 5 hooks (B) and install the front passenger airbag on the instrument panel.

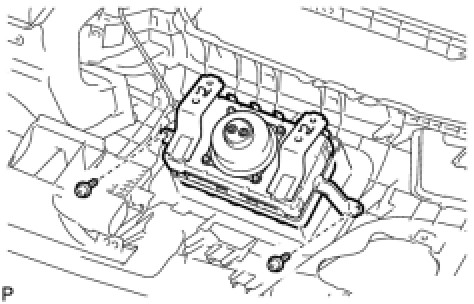

(c) Install the 2 screws.

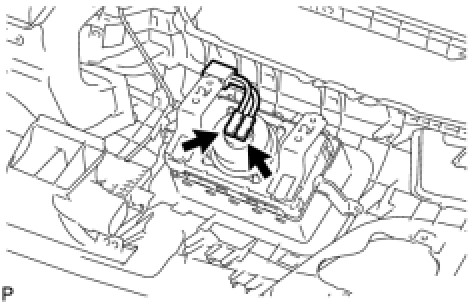

(d) Connect the 2 connectors and install the instrument panel wire assembly to the front passenger airbag.





NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

2. INSTALL NO. 3 HEATER TO REGISTER DUCT Reassembly

3. INSTALL DEFROSTER NOZZLE ASSEMBLY Reassembly

4. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT Reassembly

5. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT Reassembly

6. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Install the instrument panel safety pad sub-assembly Installation.

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

CAUTION:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

8. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
