Suspension Main Relay: Testing and Inspection

SUSPENSION CONTROL: SUSPENSION CONTROL RELAY: ON-VEHICLE INSPECTION

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
w/ Navigation System (for HDD):

After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





3. REMOVE SUSPENSION CONTROL RELAY (A/SUS)

(a) Remove the suspension control relay from the engine room No. 1 relay block.

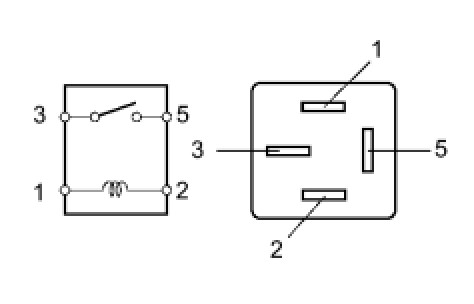

4. INSPECT SUSPENSION CONTROL RELAY

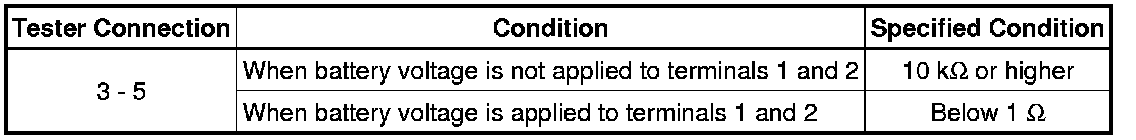

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the suspension control relay.

5. INSTALL SUSPENSION CONTROL RELAY

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

8. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

9. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
