Power Steering

POWER STEERING: POWER STEERING ECU: INSTALLATION

1. INSTALL POWER STEERING ECU

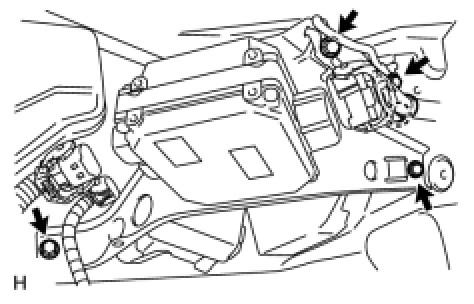

(a) Attach the claw and install the power steering ECU with the 4 bolts.

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

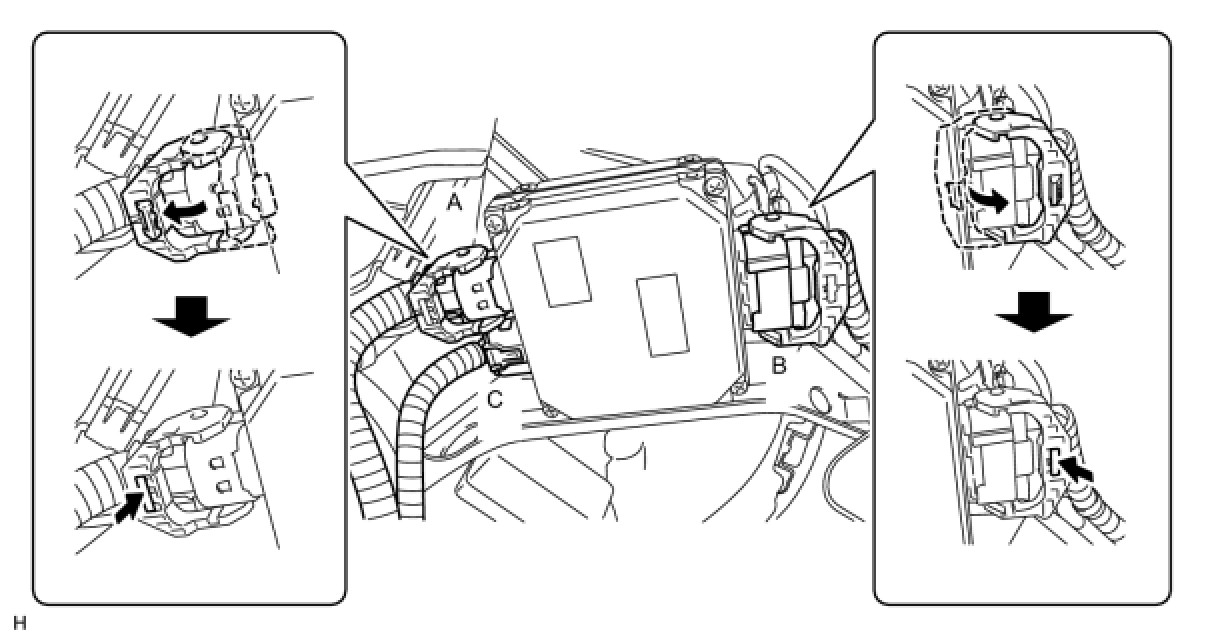

(b) Connect connector C to the power steering ECU.





(c) Connect the 2 power steering ECU connectors A and B and securely lock the connectors.

2. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY

(a) Install the inlet cover with the 2 clips.

3. INSTALL ENGINE ROOM SIDE COVER

(a) Install the side cover with the 4 clips.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

5. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

6. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

7. PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION

(a) Perform variable gear ratio steering system calibration Calibration.
