Variable Gear Ratio Steering System
Variable Gear Ratio Steering System
STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: PARTS LOCATION

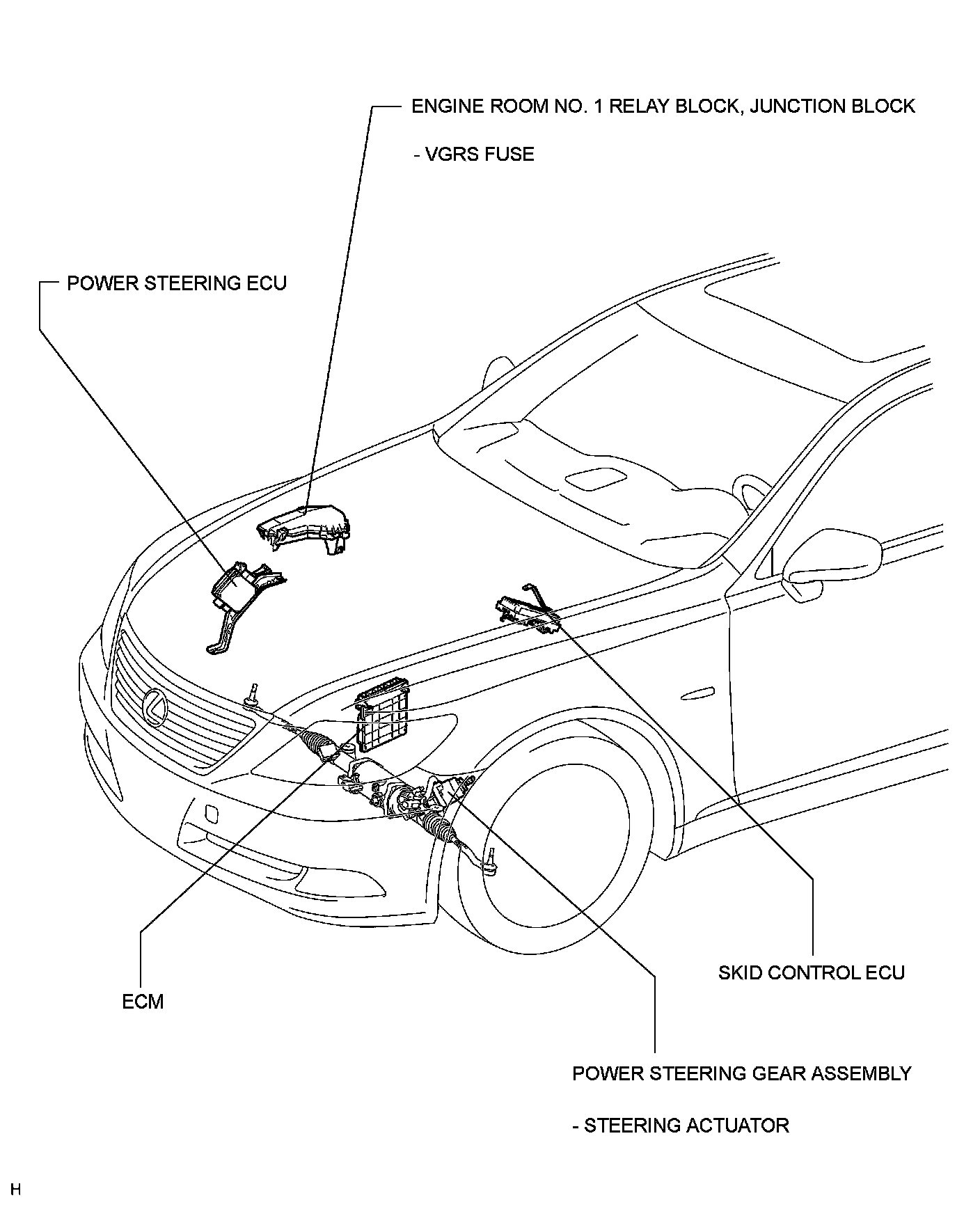

Engine Compartment:

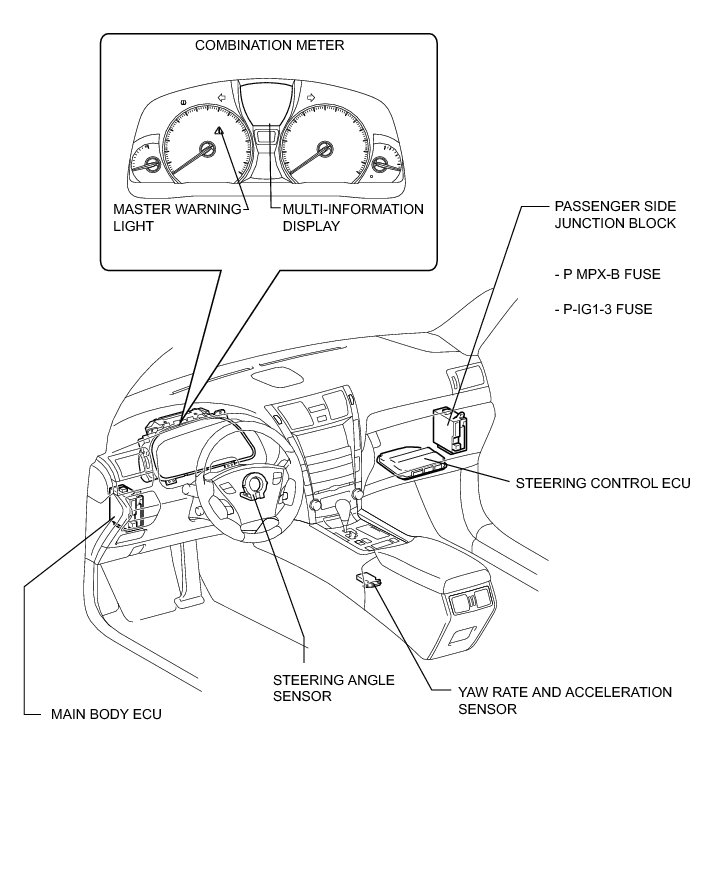

Instrument Panel:
