Removal

PARKING BRAKE: ELECTRIC PARKING BRAKE ECU: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

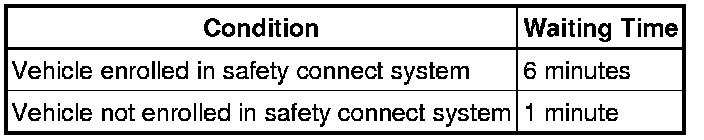

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal

4. REMOVE REAR FLOOR FINISH PLATE Removal

5. REMOVE DECK TRIM SIDE BOARD LH Removal

6. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Removal

7. REMOVE ELECTRIC PARKING BRAKE ECU

(a) Disconnect the 2 connectors.





(b) Remove the 2 nuts and seat belt control ECU.

(c) Disconnect the 2 connectors.





(d) Remove the 2 nuts and parking brake ECU.
