System Diagram

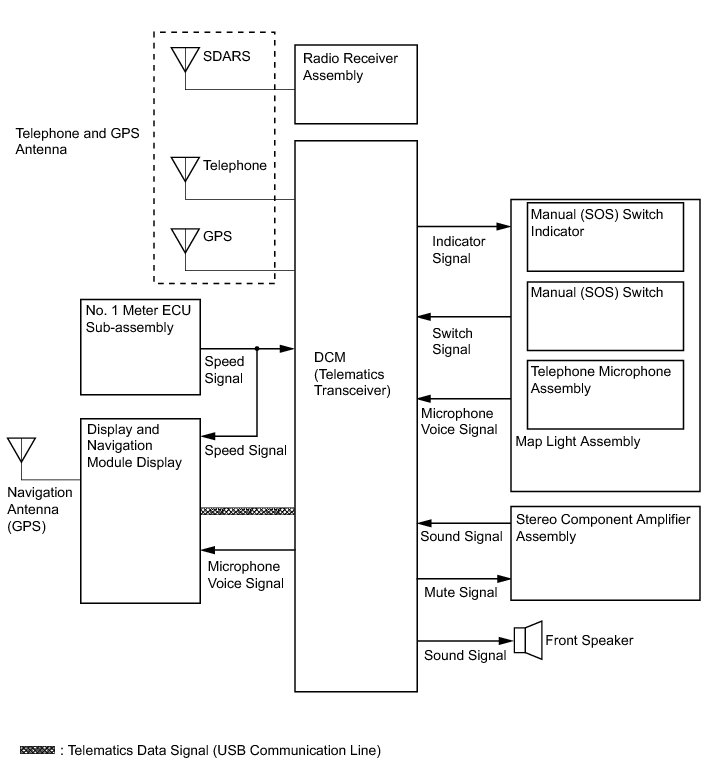

CELLULAR COMMUNICATION: LEXUS ENFORM SYSTEM: SYSTEM DIAGRAM

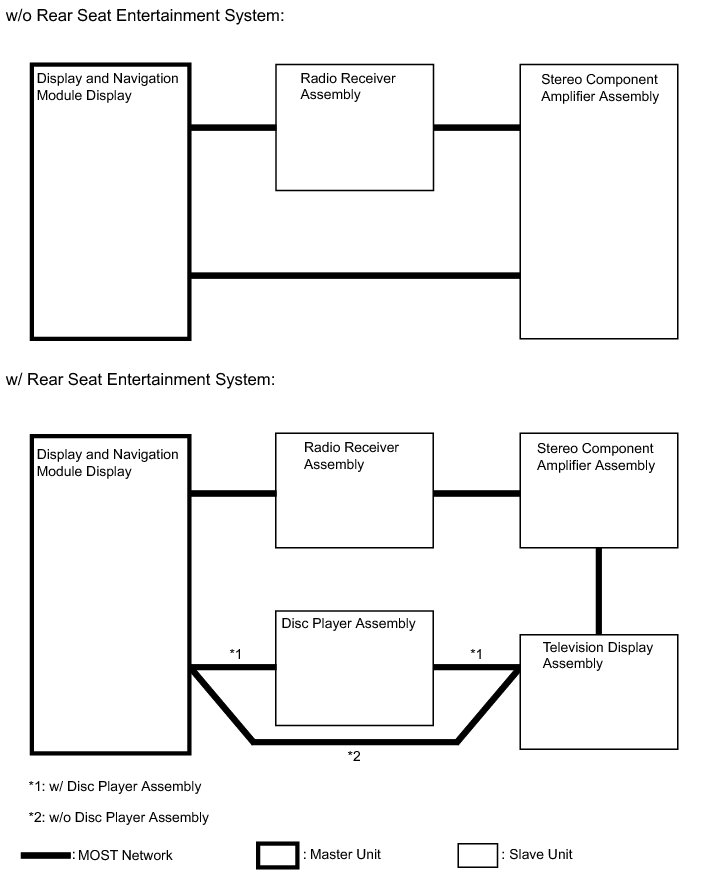

1. MOST NETWORK COMMUNICATION LINE





2. OTHER
