System Description

CELLULAR COMMUNICATION: LEXUS ENFORM SYSTEM: SYSTEM DESCRIPTION

1. DESCRIPTION

* LEXUS ENFORM allows the vehicle to receive information from the XM radio satellite and call center and links the information to the navigation system. LEXUS ENFORM permits the driver to use the received information, such as destination information, weather information, sports news and stock information on the navigation system display and navigation module display.*1 The equipment for receiving this service is installed as standard equipment.*2

* LEXUS ENFORM provides the following services: Destination Assist, eDestination, Lexus Insider, XM NavTraffic, XM NavWeather, XM Stocks, XM Sports, Maintenance Reminder, Voice Command, and Safety Connect. For details about Safety Connect, refer to Safety Connect System System Description.

* LEXUS ENFORM consists mainly of a telephone microphone assembly, DCM (telematics transceiver), display and navigation module display, and telephone and GPS antenna.

HINT
* *1: LEXUS ENFORM is available in the continental U.S., excluding Alaska and Hawaii. In addition, Canada, Mexico and unincorporated territories of the U.S. such as Puerto Rico are not included in the service area.
* *2: LEXUS ENFORM requires a Safety Connect subscription. XM NavTraffic and XM NavWeather require separate subscriptions to receive their services. XM Sports and XM Stocks are included with the XM Radio subscription if the vehicle is equipped with LEXUS ENFORM.

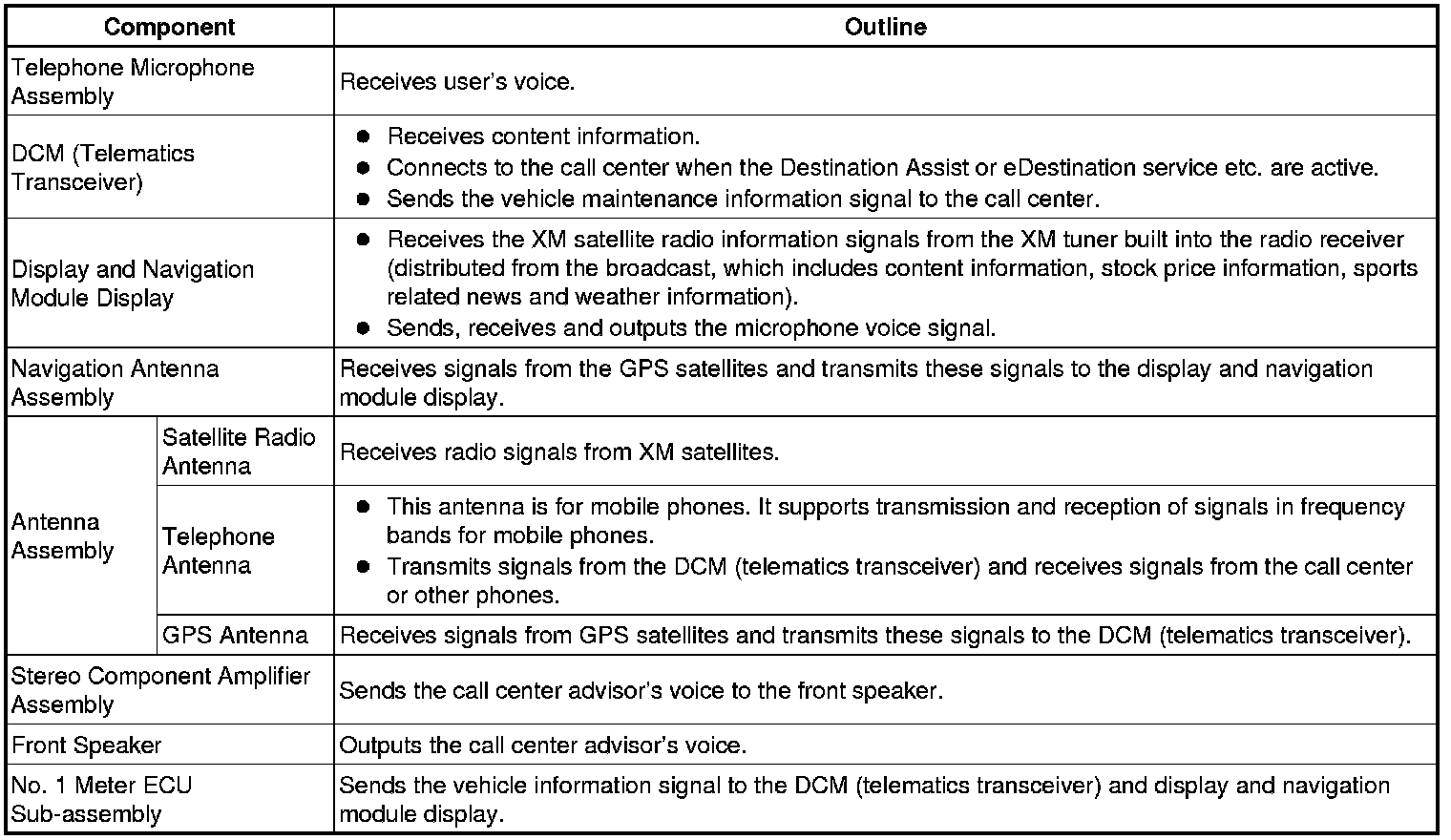

2. FUNCTION OF MAIN COMPONENTS

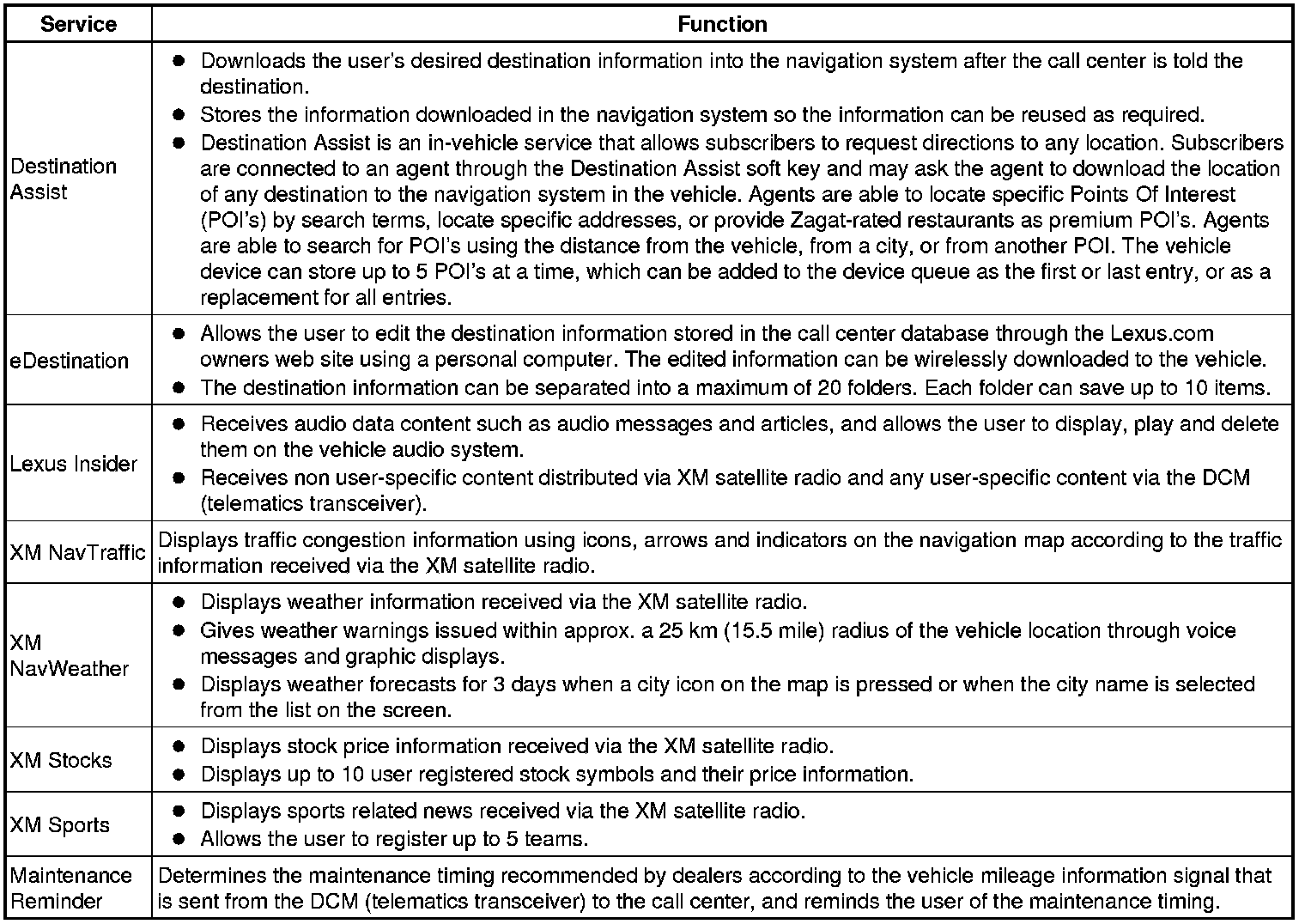

3. SERVICES FUNCTION
