Removal

1UR-FSE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: REMOVAL

1. REMOVE NO. 2 ENGINE UNDER COVER (for 2WD) Removal

2. REMOVE NO. 2 ENGINE UNDER COVER (for AWD) Removal

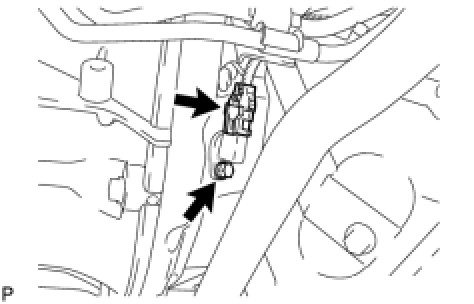

3. REMOVE CRANKSHAFT POSITION SENSOR

(a) Disconnect the crankshaft position sensor connector.





(b) Remove the bolt and crankshaft position sensor.
