Installation

1UR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: INSTALLATION

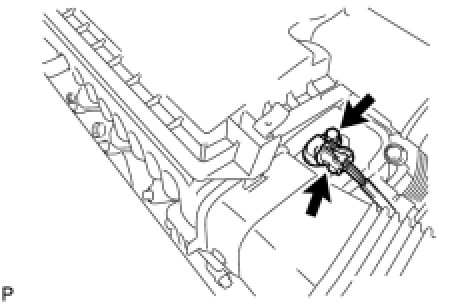

1. INSTALL CAMSHAFT POSITION SENSOR

(a) Install the camshaft position sensor with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)





(b) Connect the camshaft position sensor connector.

2. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
