Disassembly

1UR-FSE FUEL: FUEL PRESSURE REGULATOR: DISASSEMBLY

1. REMOVE FUEL SENDER GAUGE ASSEMBLY

(a) Disconnect the fuel sender gauge connector from the fuel suction plate.





(b) Press down on the sender gauge claw labeled A. Then slide the sender gauge upward.

NOTICE:
Do not touch the sender plate's resistance plate area or the contact area.

2. REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY

(a) Disconnect the fuel pump connector from the fuel suction plate.





(b) Using needle nose pliers, remove the E-ring.





(c) Remove the fuel suction plate and spring from the sub-tank.

3. REMOVE FUEL FILTER

(a) Disengage the 2 claws and remove the filter from the sub-tank.





4. REMOVE JET PUMP

(a) Using a screwdriver with the tip taped, remove the jet pump from the sub-tank.

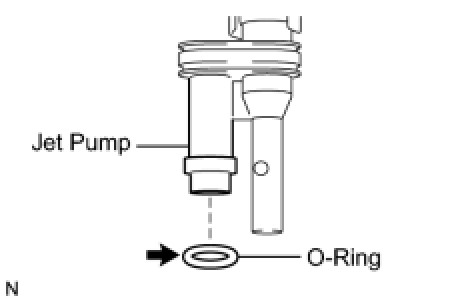

(b) Remove the O-ring from the jet pump.





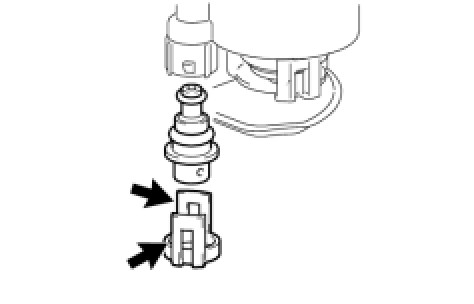

5. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

(a) Detach the 2 claws of the fuel filter and remove the cap.





(b) Remove the fuel pressure regulator from the fuel filter.

(c) Remove the 2 O-rings from the pressure regulator.
