Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Actuator >> Service and Repair >> Camshaft Timing Control Motor >> Components

Components

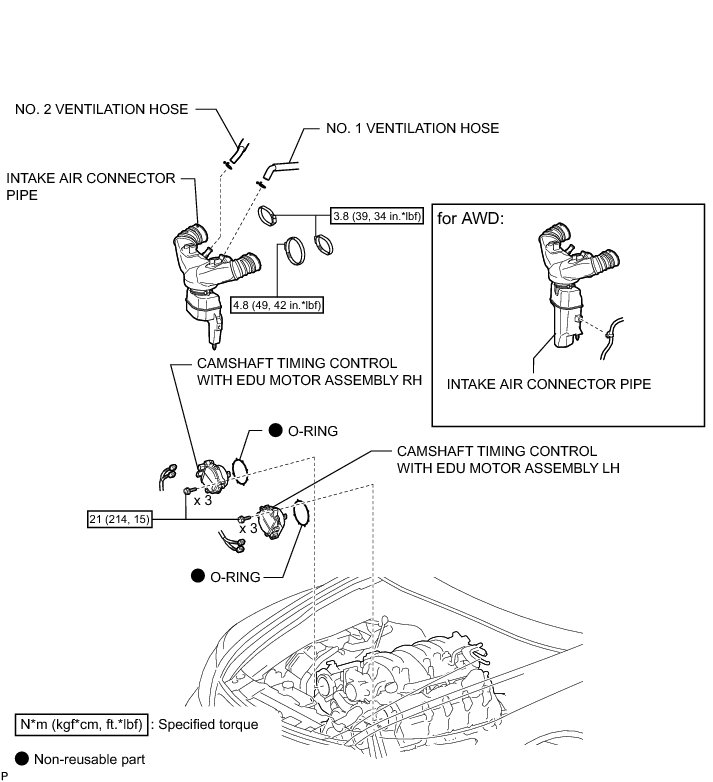

1UR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING CONTROL MOTOR: COMPONENTS
