Installation

1UR-FSE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

1. INSTALL VVT SENSOR

(a) Install the 4 VVT sensors with the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)





(b) Connect the 4 VVT sensor connectors.

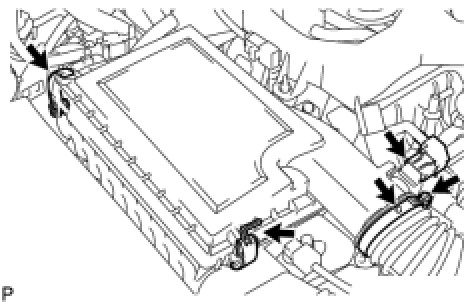

2. INSTALL AIR CLEANER ASSEMBLY RH

(a) Install the air cleaner case with the 2 nuts and clip.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)





(b) Install the element to the air cleaner case.

(c) Install the air cleaner cap to the air cleaner case with the 2 clips.

Torque : 3.8 Nm (39 kgf-cm, 34 in-lbf)





HINT
* Insert the protrusion of the air cleaner hose into the hole of the hose clamp.
* The hose clamp can be tightened within the range of 2.0 N*m (20 kgf*cm, 18 in.*lbf) to 5.5 N*m (56 kgf*cm, 49 in.*lbf).

(d) Connect the MAF meter connector.

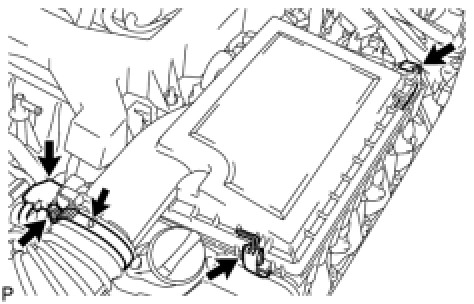

3. INSTALL AIR CLEANER ASSEMBLY LH

(a) Install the air cleaner case with the 2 nuts and clip.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)





(b) Install the element to the air cleaner case.

(c) Install the air cleaner cap to the air cleaner case with the 2 clips.

Torque : 3.8 Nm (39 kgf-cm, 34 in-lbf)





HINT
* Insert the protrusion of the air cleaner hose into the hole of the hose clamp.
* The hose clamp can be tightened within the range of 2.0 N*m (20 kgf*cm, 18 in.*lbf) to 5.5 N*m (56 kgf*cm, 49 in.*lbf).

(d) Connect the MAF meter connector.

4. INSTALL NO. 1 AIR CLEANER INLET Installation

5. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

6. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
