Removal

1UR-FSE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR (for AWD): REMOVAL

1. REMOVE ENGINE AND TRANSMISSION

(a) Remove the engine and transmission Removal.

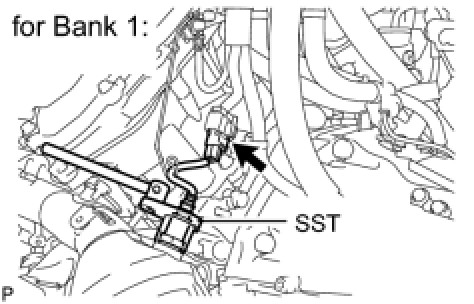

2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

(a) Disconnect the air fuel ratio sensor connector.





(b) Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.

SST : 09224-00010

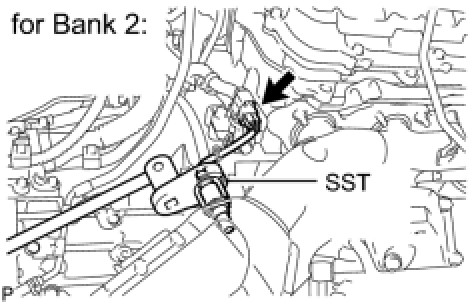

3. REMOVE AIR FUEL RATIO SENSOR NO.2 (for Bank 2 Sensor 1)

(a) Disconnect the air fuel ratio sensor connector.





(b) Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.

SST : 09224-00010
