Air Fuel Ratio Sensor

1UR-FSE ENGINE CONTROL SYSTEM: AIR FUEL RATIO SENSOR (for AWD): INSPECTION

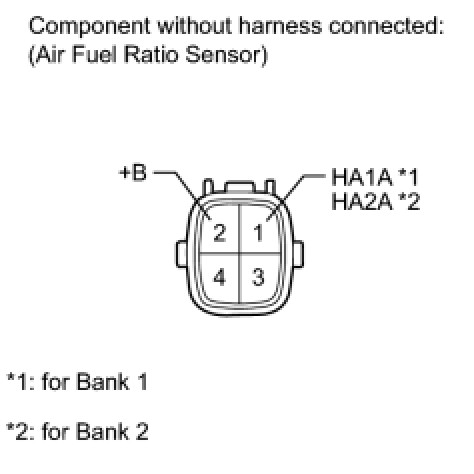

1. INSPECT AIR FUEL RATIO SENSOR

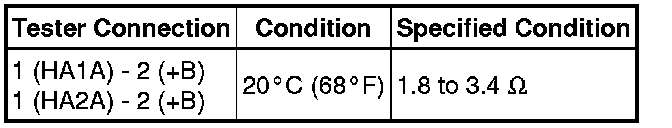

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the air fuel ratio sensor.
