Rear Heater Control Panel LIN Communication Malfunction

MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM: Rear Heater Control Panel LIN Communication Malfunction
- Rear Heater Control Panel LIN Communication Malfunction

DESCRIPTION

The LIN communication of the components related to the rear heater occurs between the air conditioning amplifier and rear power seat module switch.

HINT
For vehicles with rear cooler unit only.

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When using the Techstream with the engine switch off to troubleshoot:

Connect the Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.

PROCEDURE

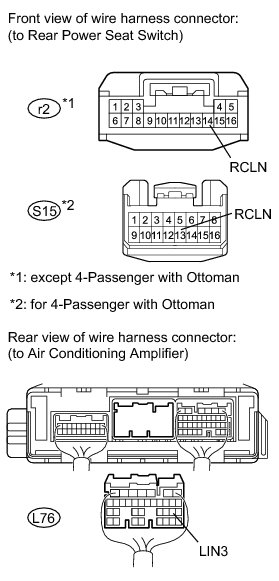

1. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - REAR POWER SEAT MODULE SWITCH)

(a) Disconnect the L76 amplifier connector.





(b) Disconnect the r2*1 or S15*2 module switch connector.

HINT
*1: except 4-Passenger with Ottoman

*2: for 4-Passenger with Ottoman

(c) Measure the resistance and voltage according to the value(s) in the table below.

Standard resistance:

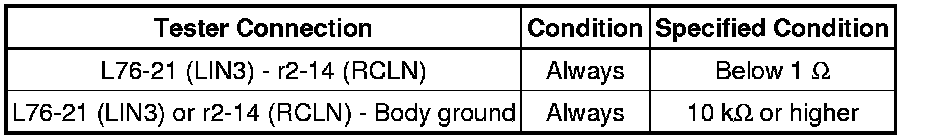

except 4-Passenger with Ottoman:

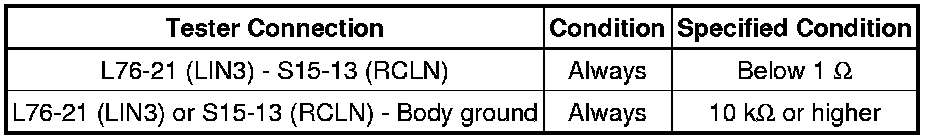

for 4-Passenger with Ottoman:





Standard voltage:

except 4-Passenger with Ottoman:





for 4-Passenger with Ottoman:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

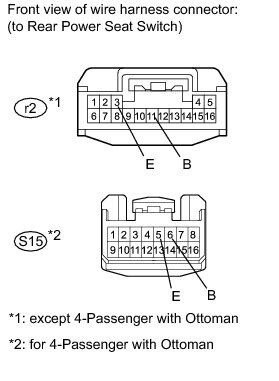

2. CHECK REAR POWER SEAT MODULE SWITCH (BATTERY VOLTAGE AND GROUND)

(a) Disconnect the r2*1 or S15*2 module switch connector.

HINT
*1: except 4-Passenger with Ottoman

*2: for 4-Passenger with Ottoman





(b) Measure the resistance and voltage according to the value(s) in the table below.

Standard resistance:

except 4-Passenger with Ottoman:





for 4-Passenger with Ottoman:





Standard voltage:

except 4-Passenger with Ottoman:





for 4-Passenger with Ottoman:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. REPLACE REAR POWER SEAT MODULE SWITCH (OPERATION)

(a) Temporarily replace the rear power seat module switch with a new or normally functioning one.

except Ottoman: Disassembly

for Ottoman: Disassembly

(b) Check the rear air conditioning function is normal.

OK:

Rear air conditioning function is normal.

NG -- REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY Removal

OK -- END (REAR POWER SEAT MODULE SWITCH IS DEFECTIVE)
