Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> CAN Communication System >> Diagnosis System >> Part 2

Part 2

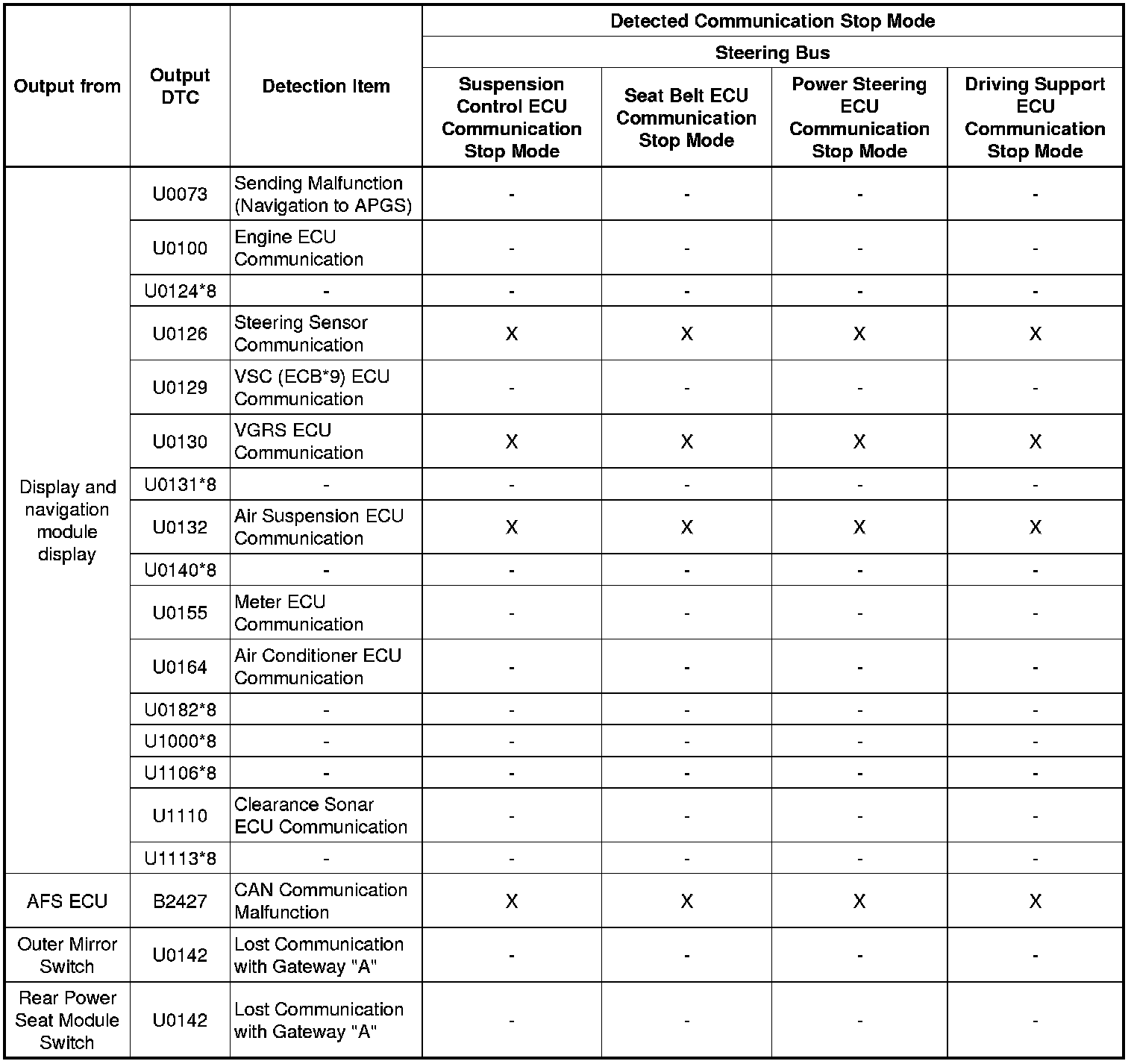

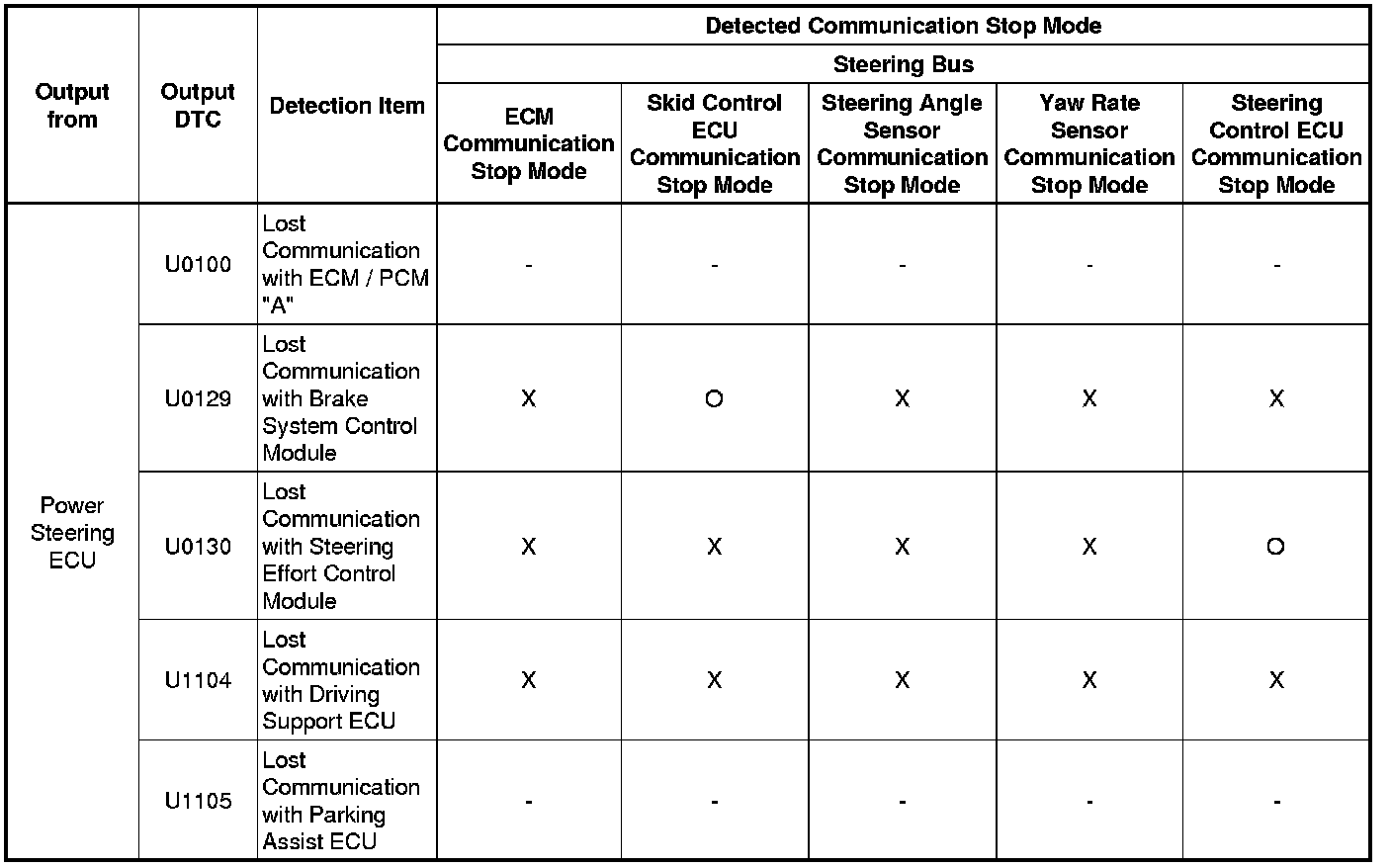

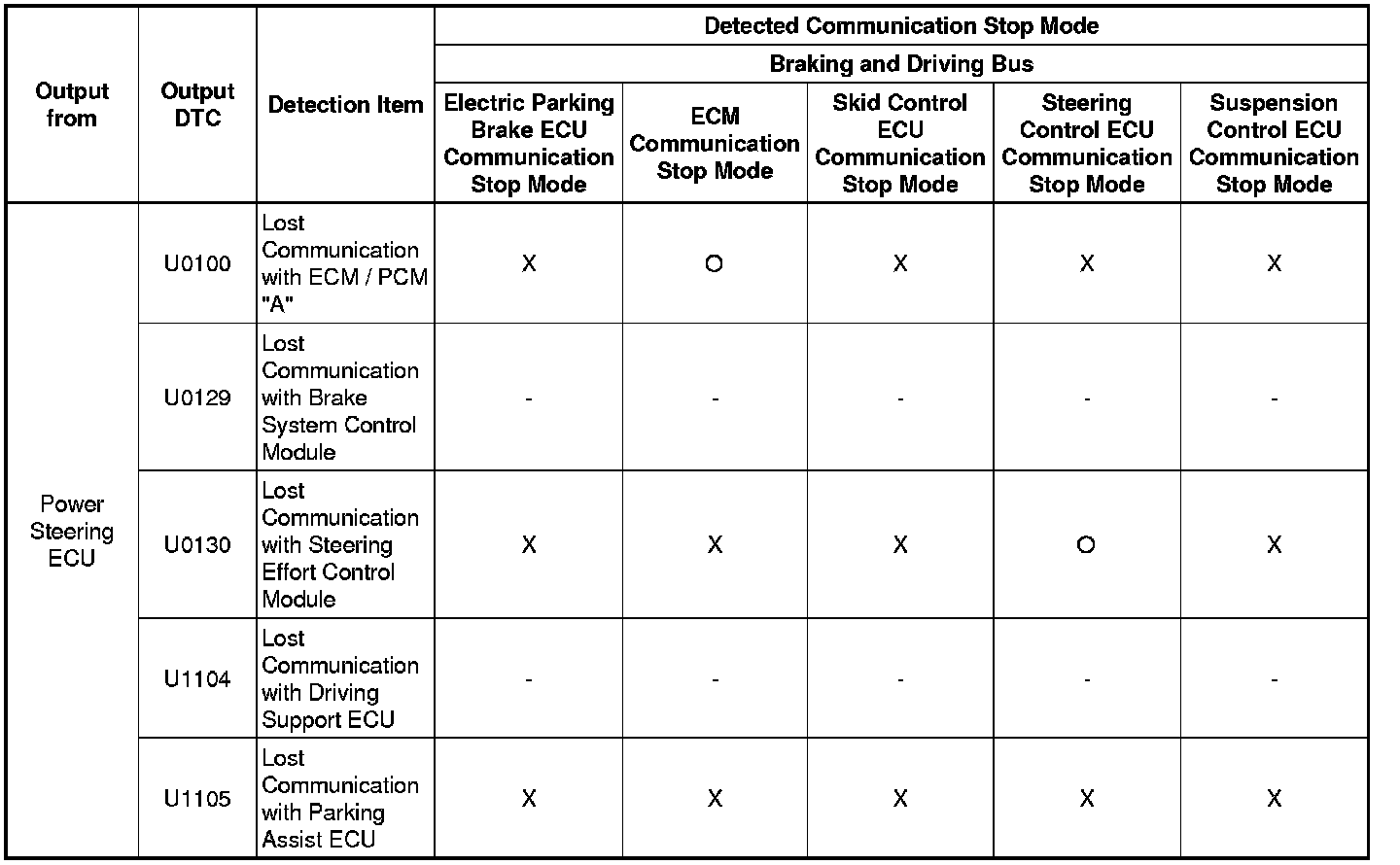

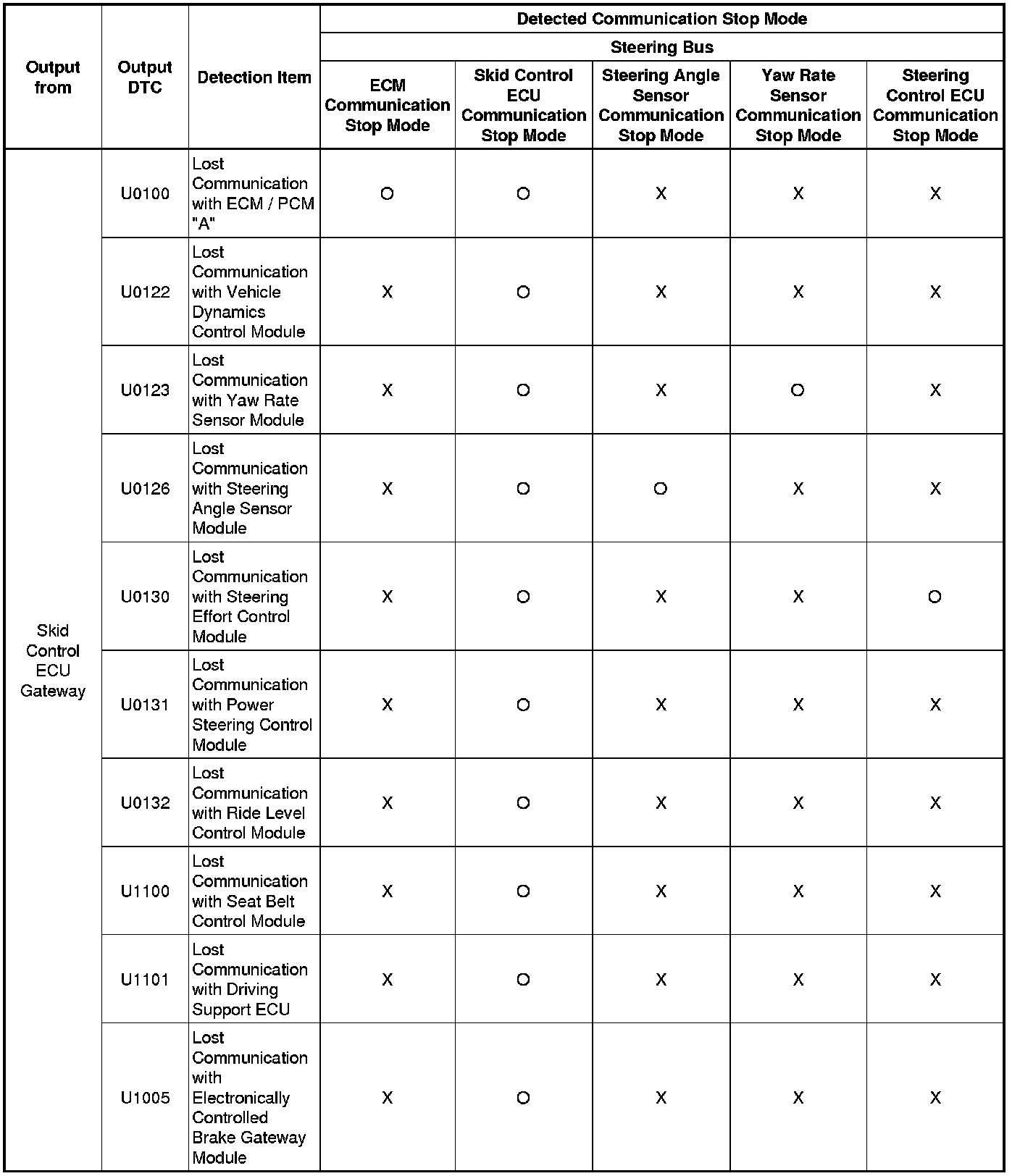

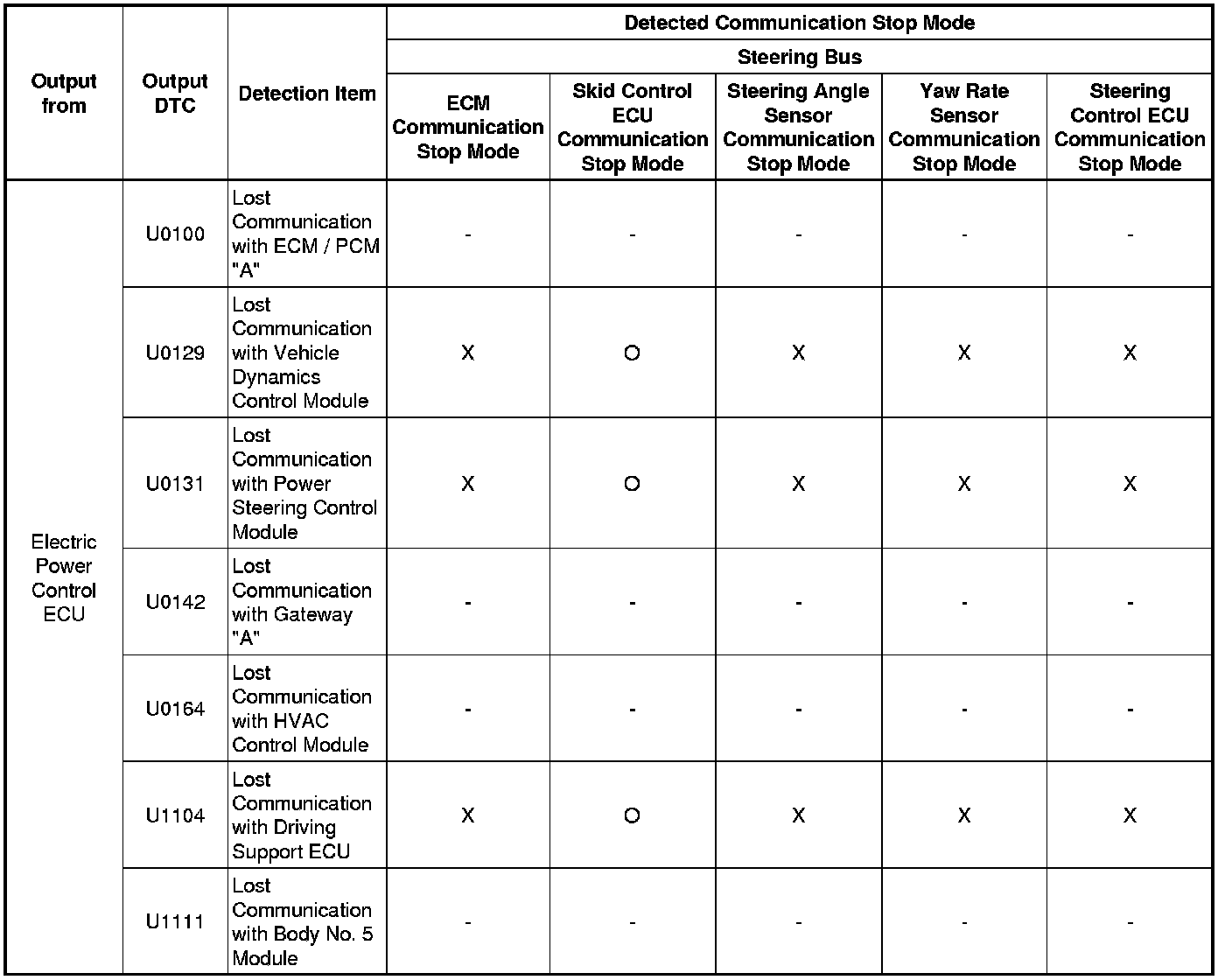

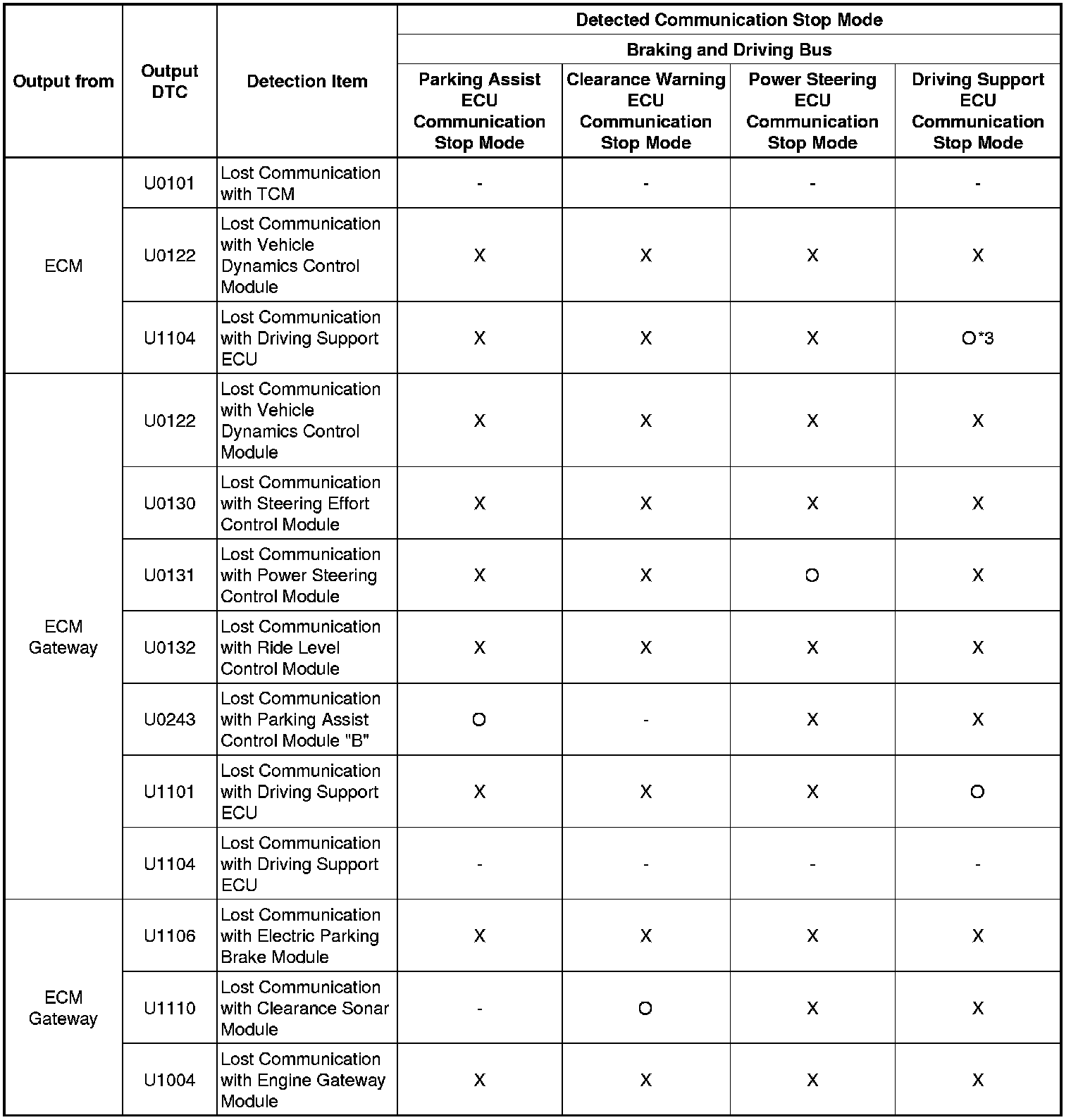

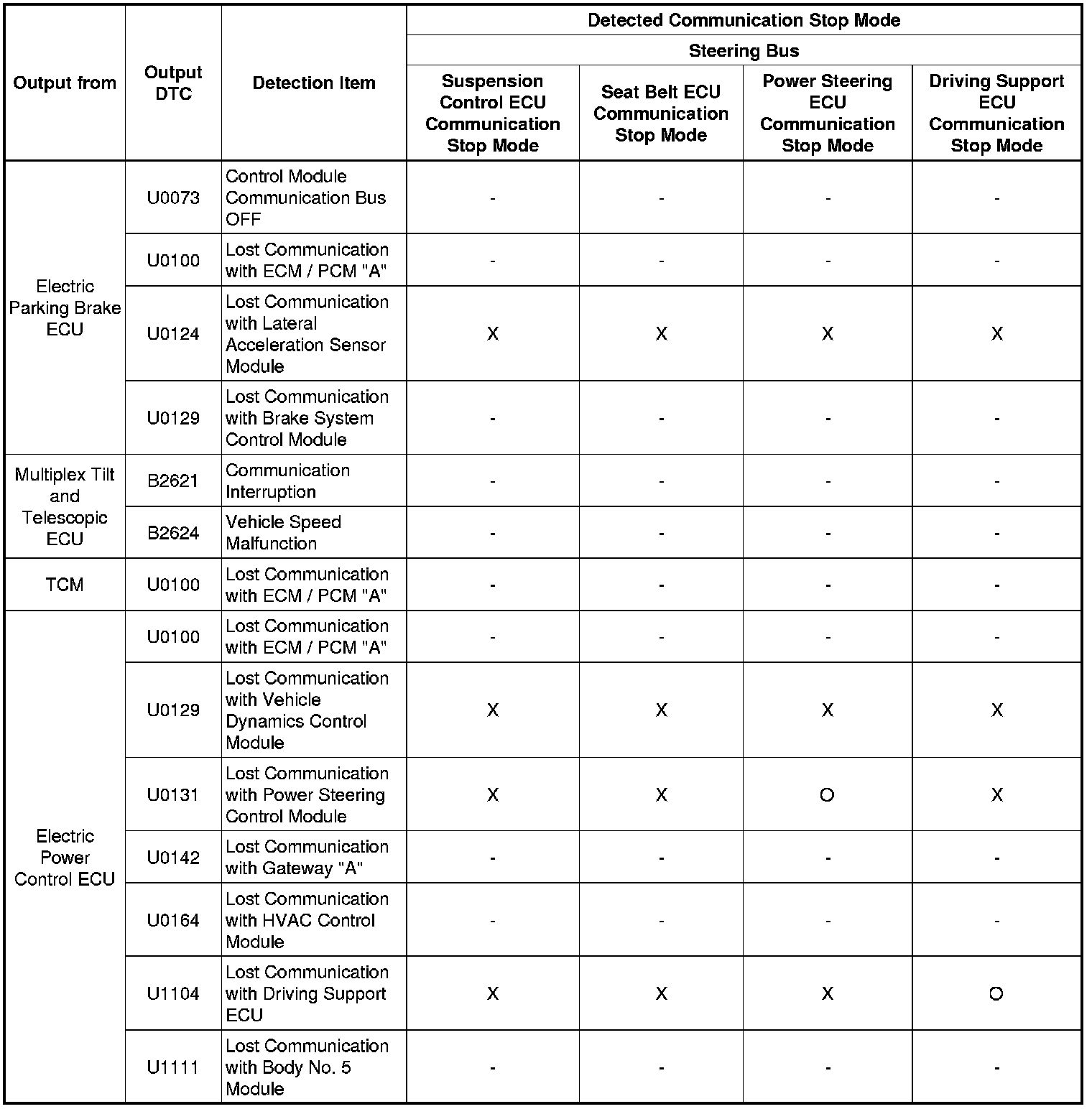

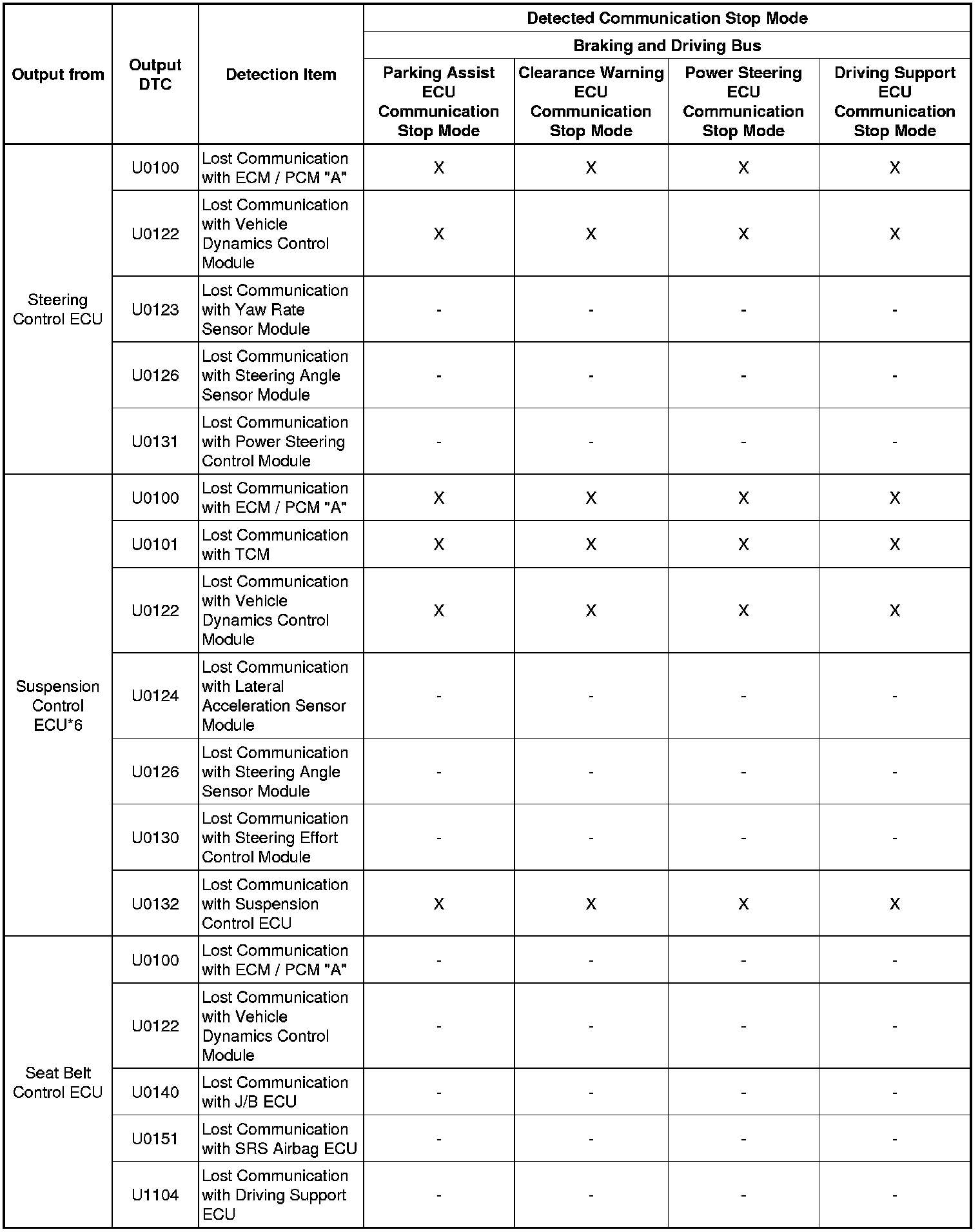

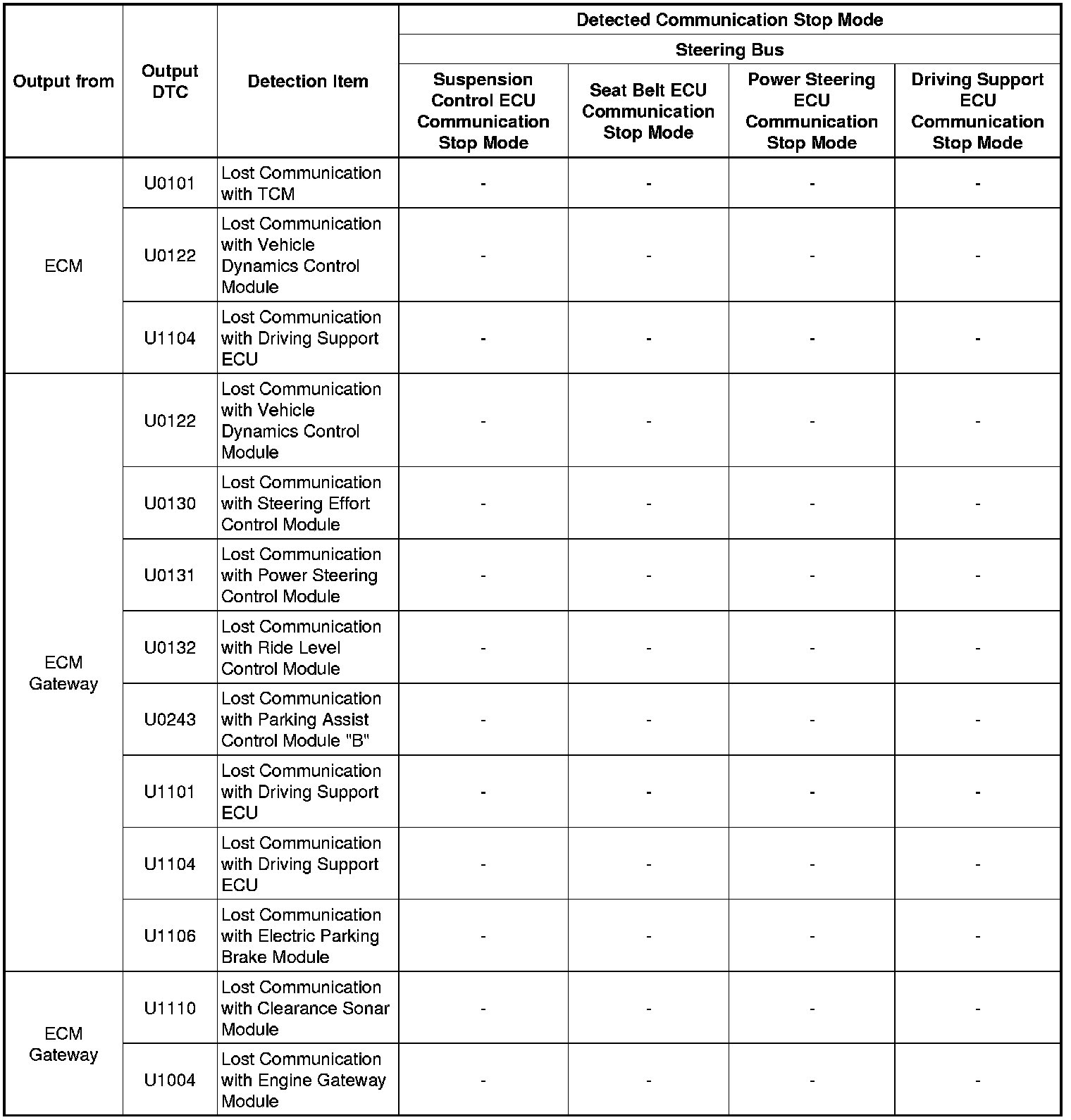

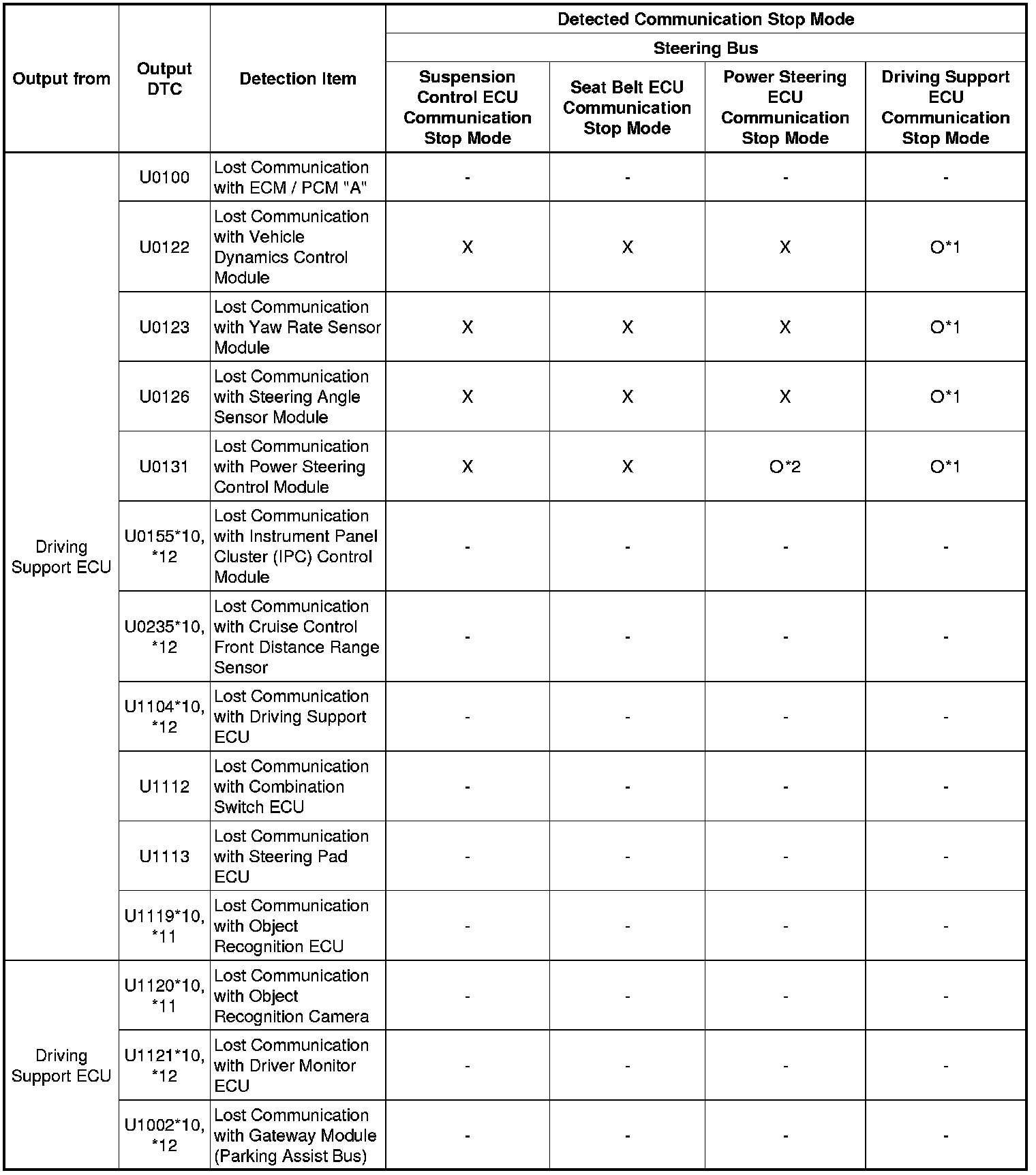

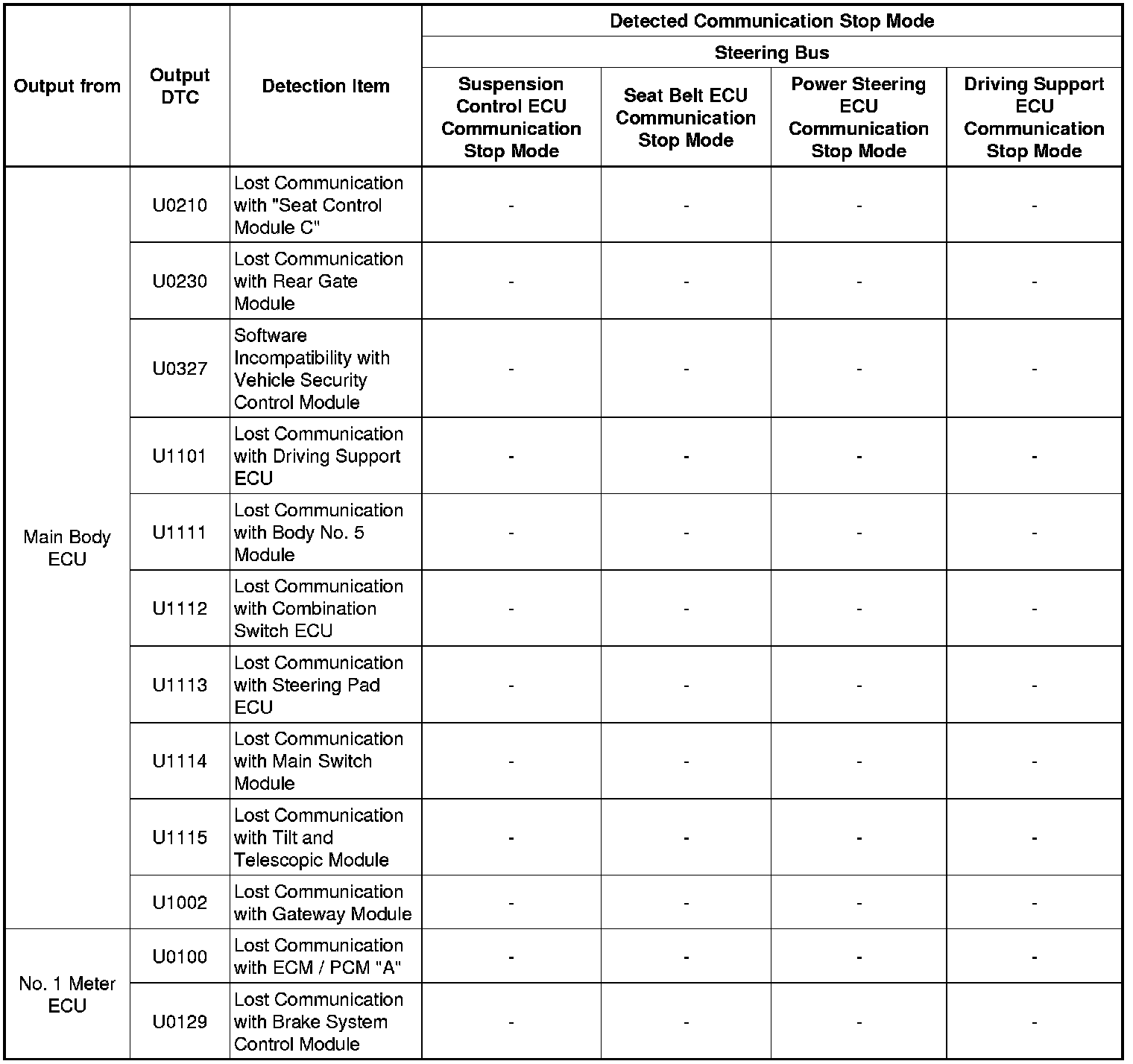

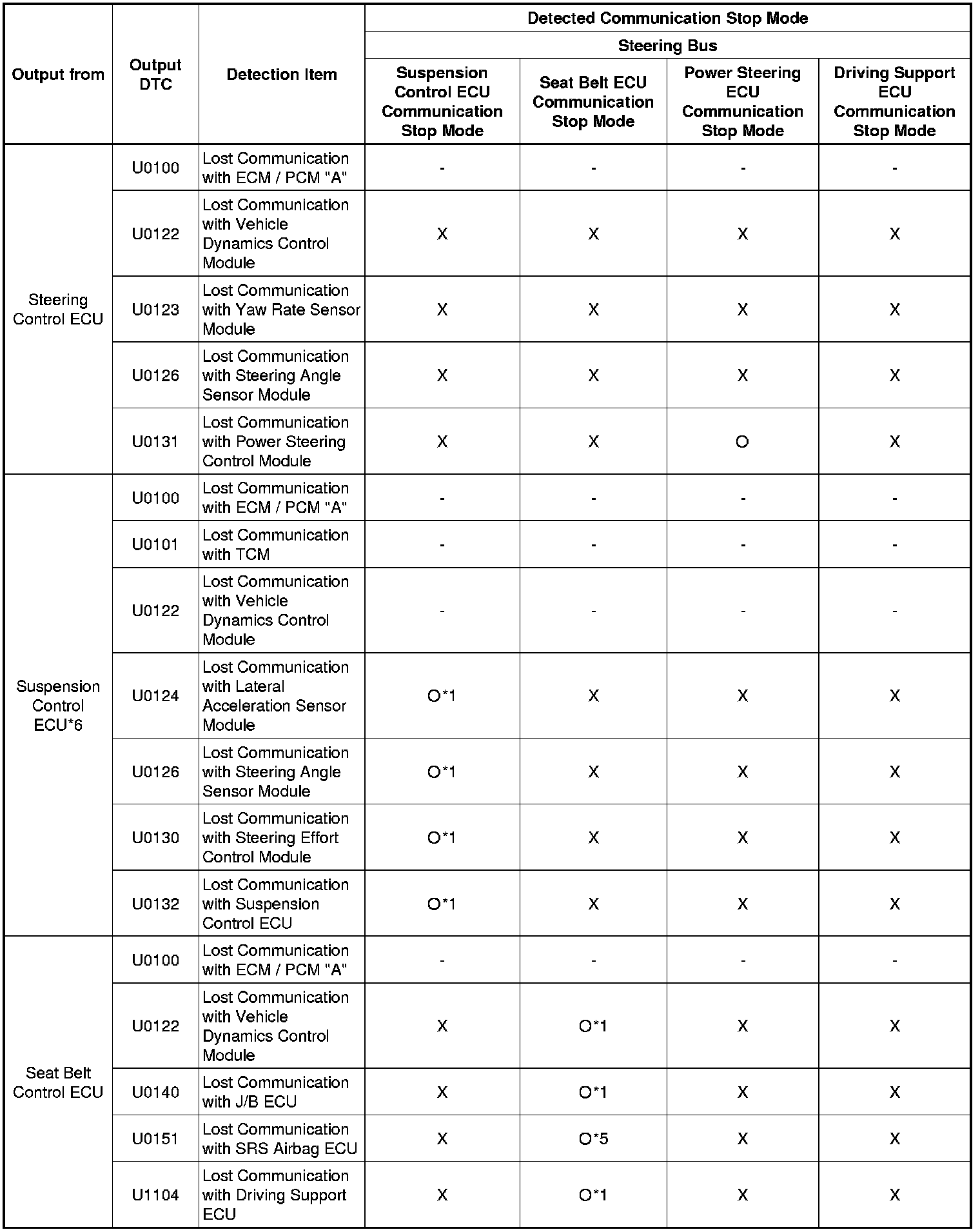

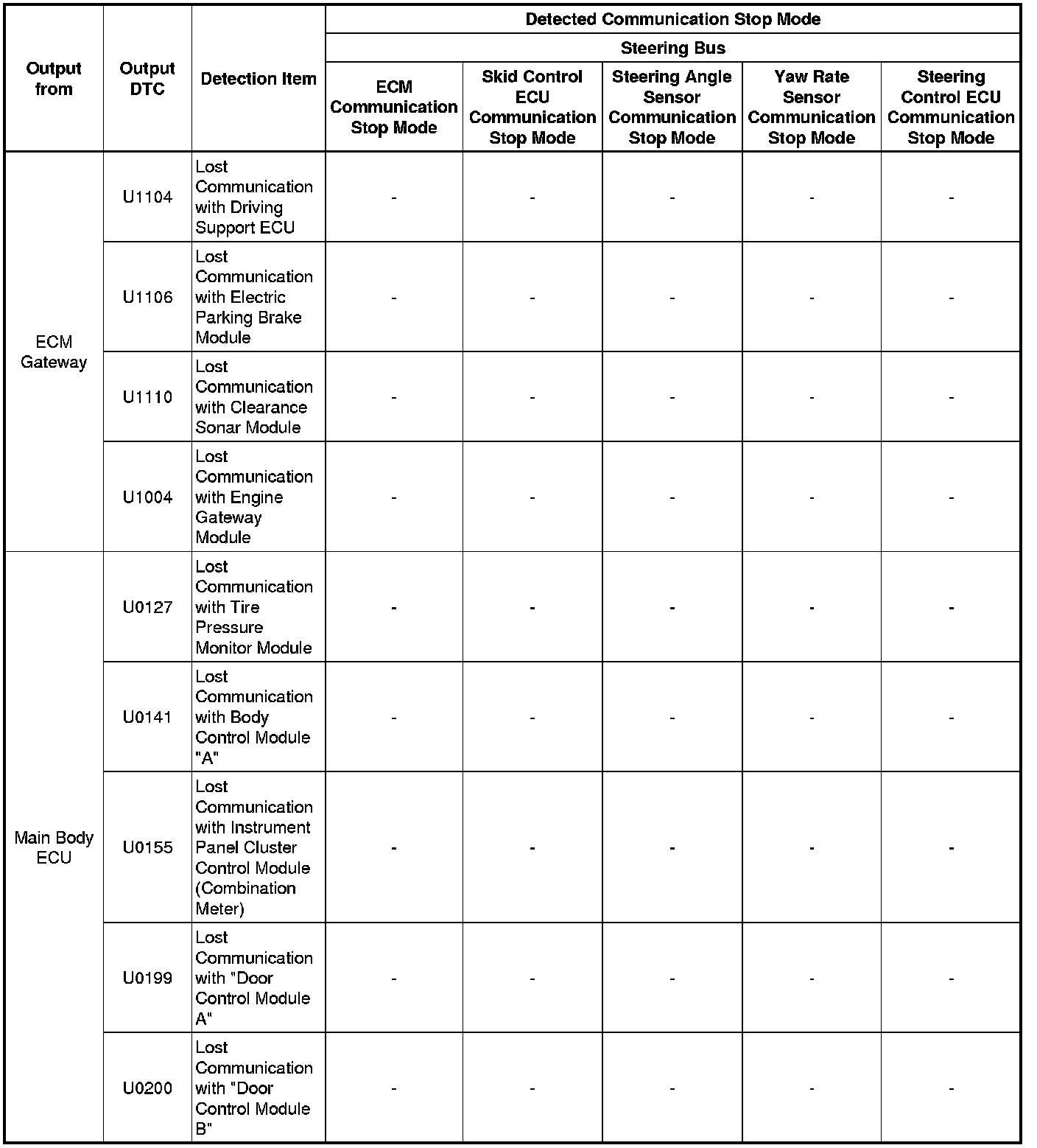

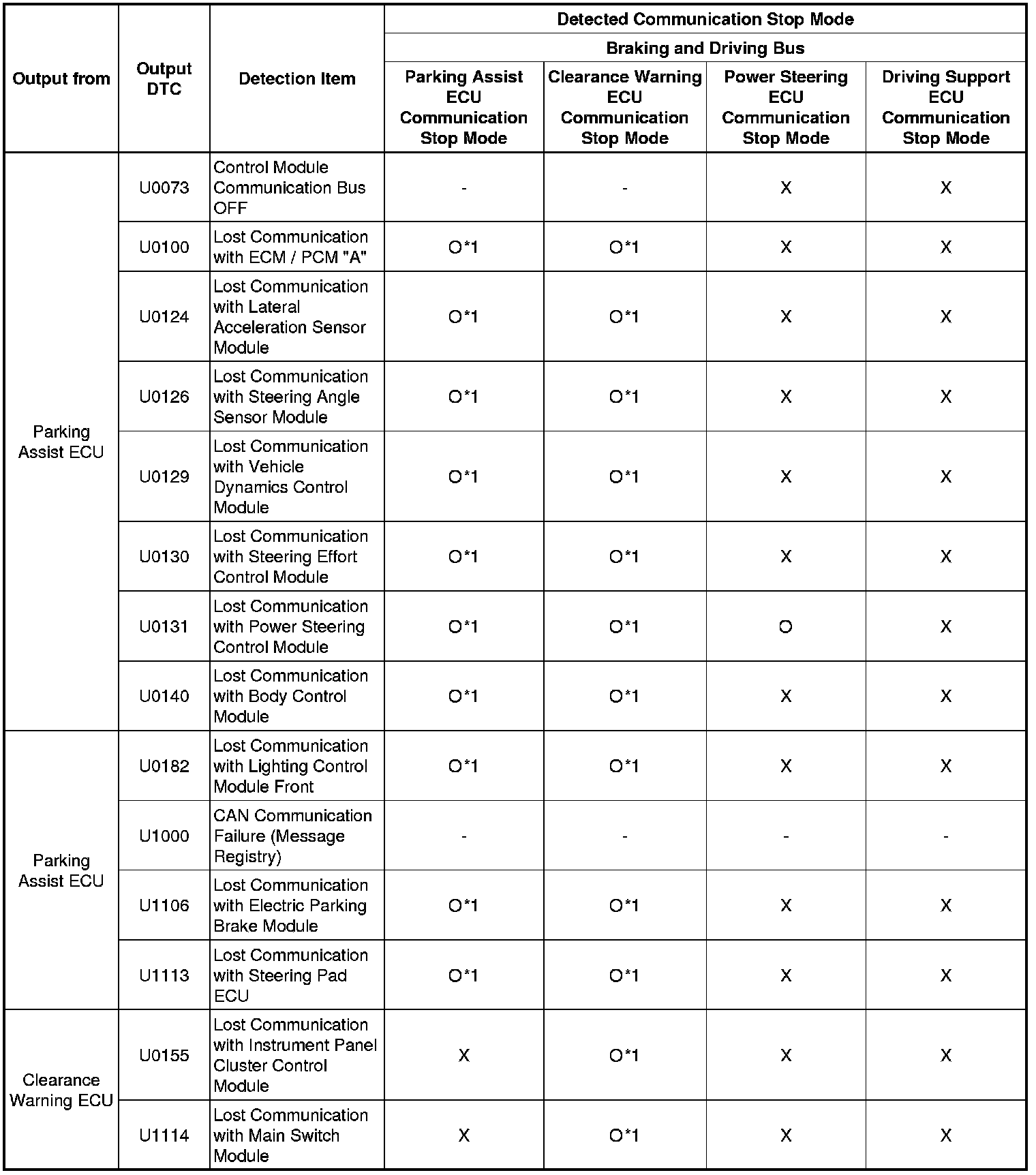

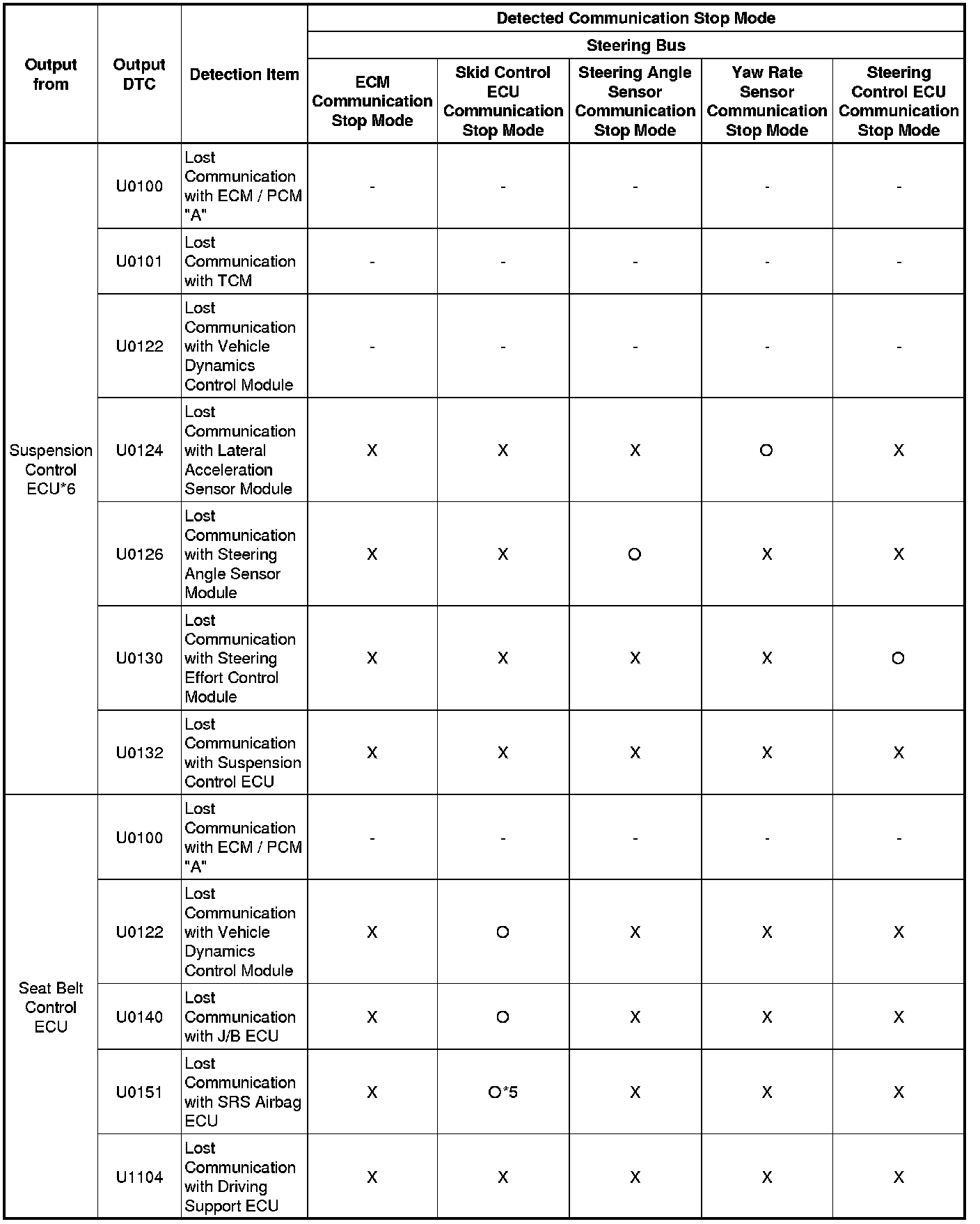

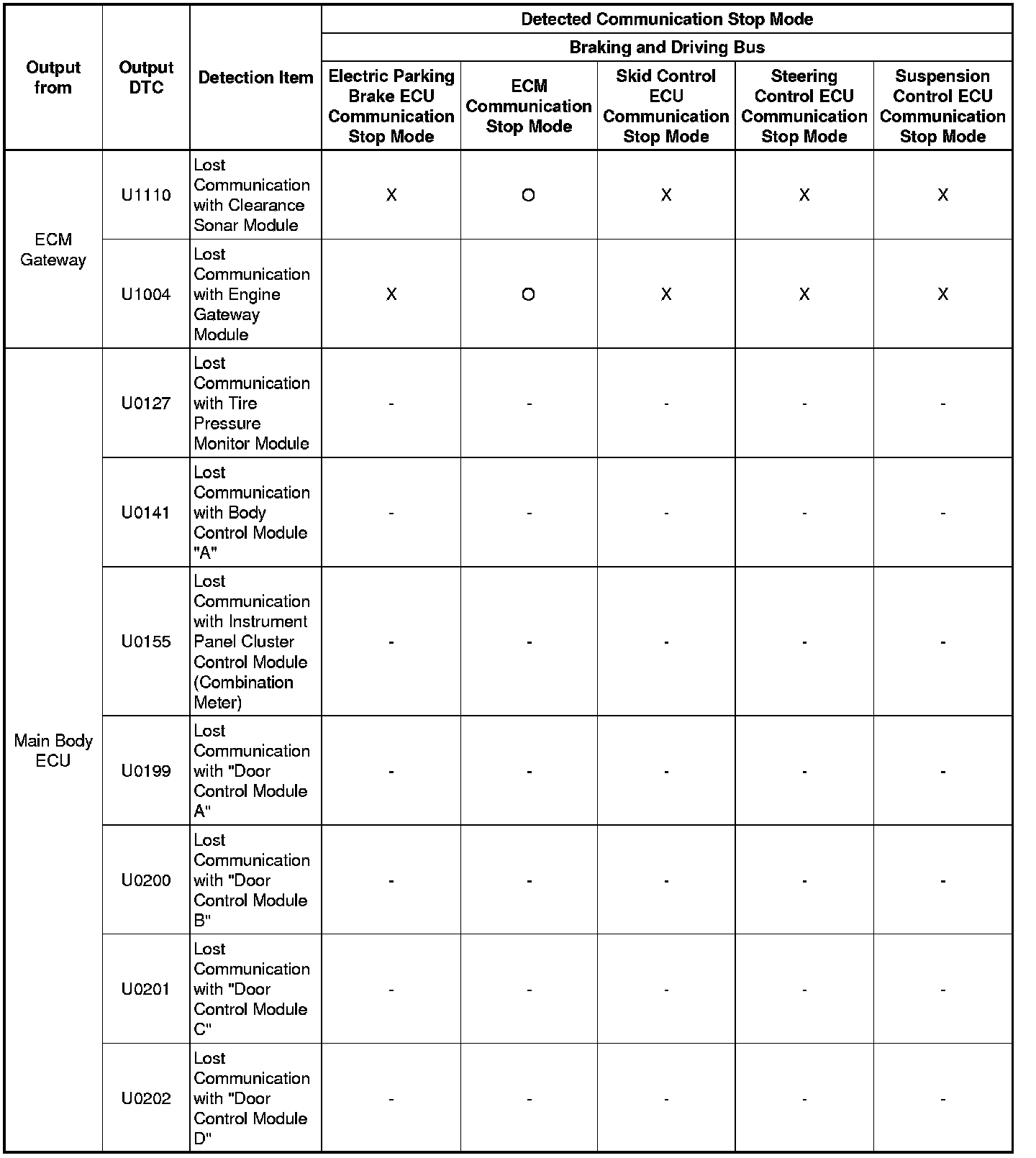

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: DIAGNOSIS SYSTEM

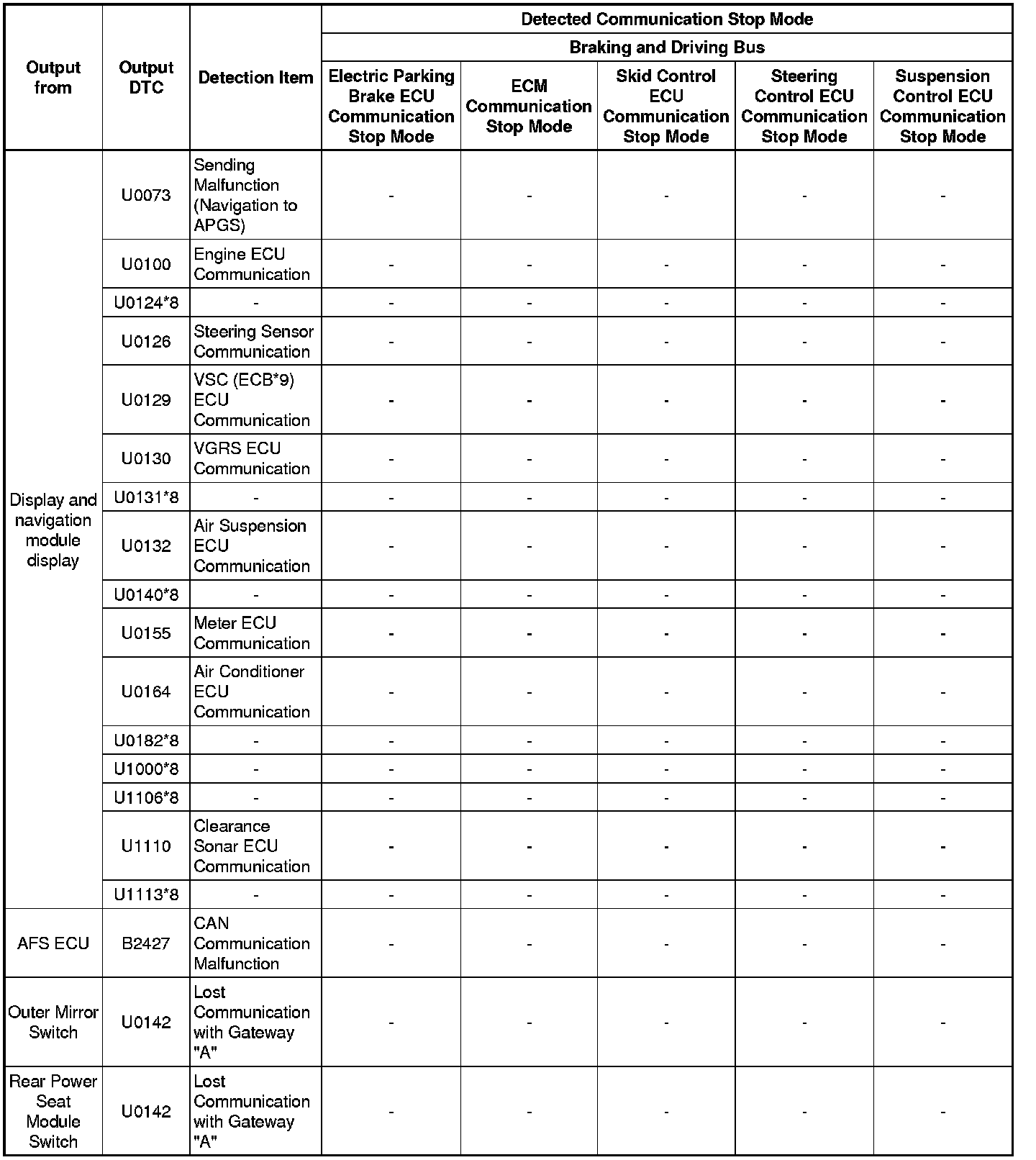

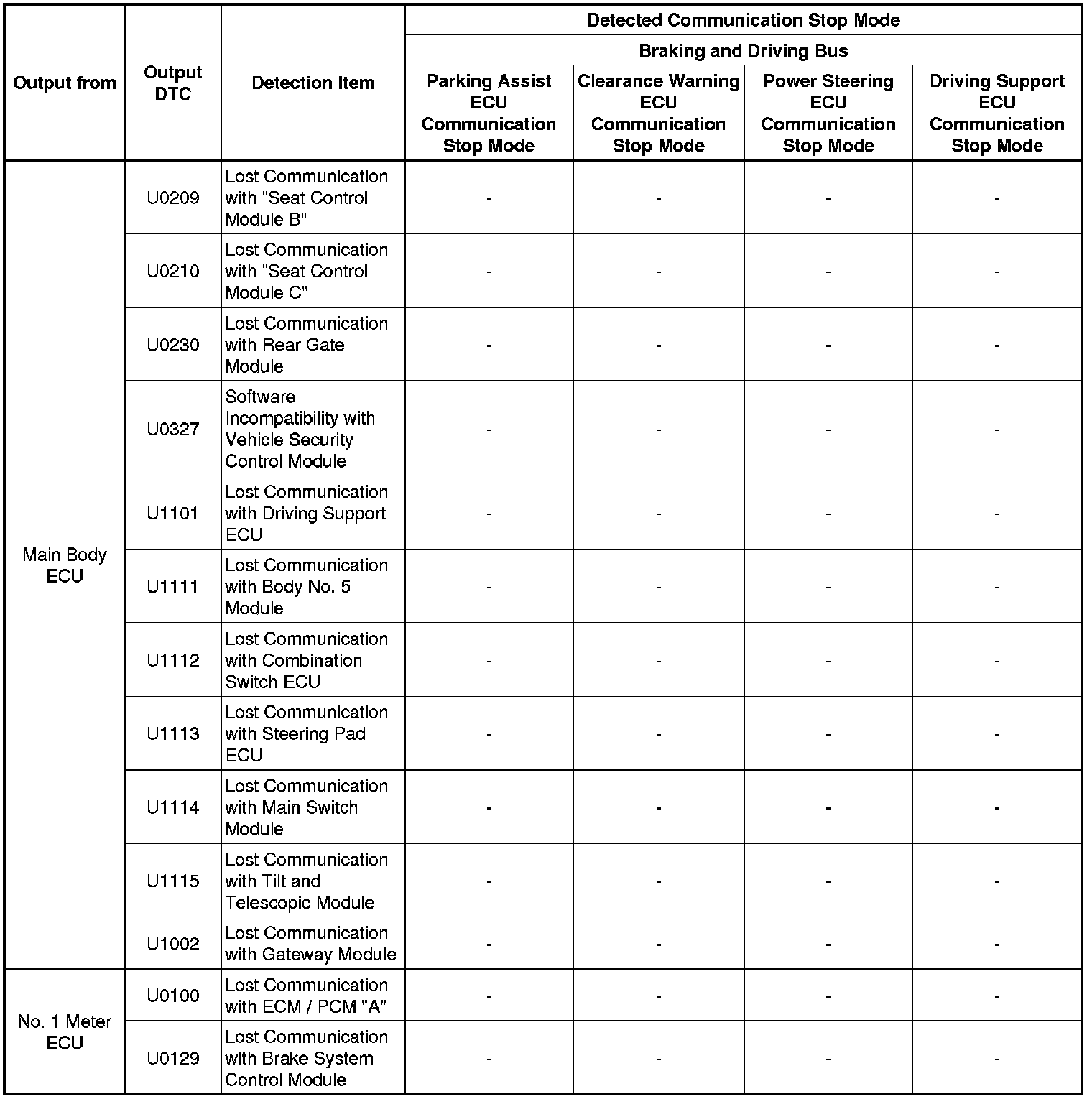

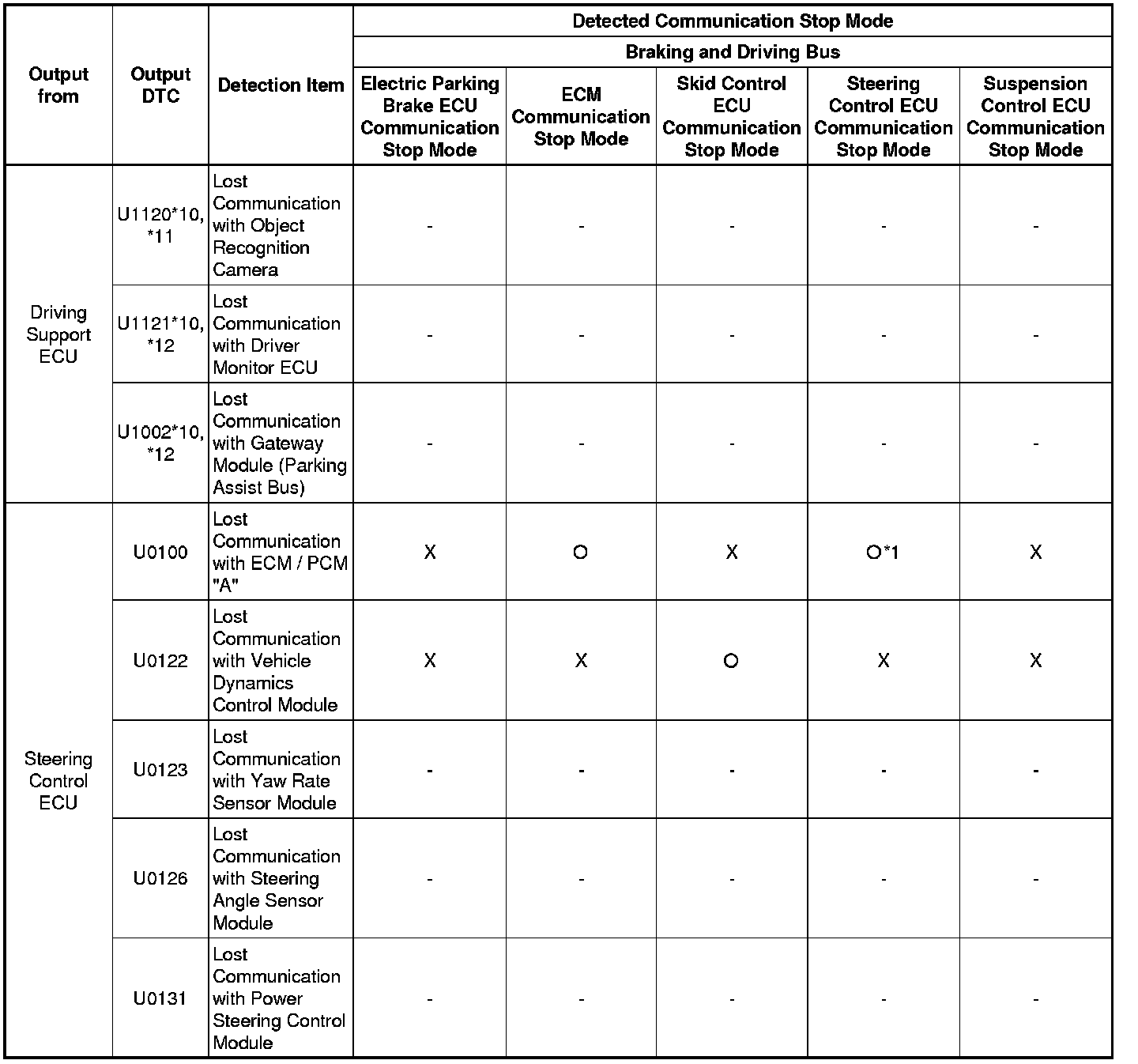

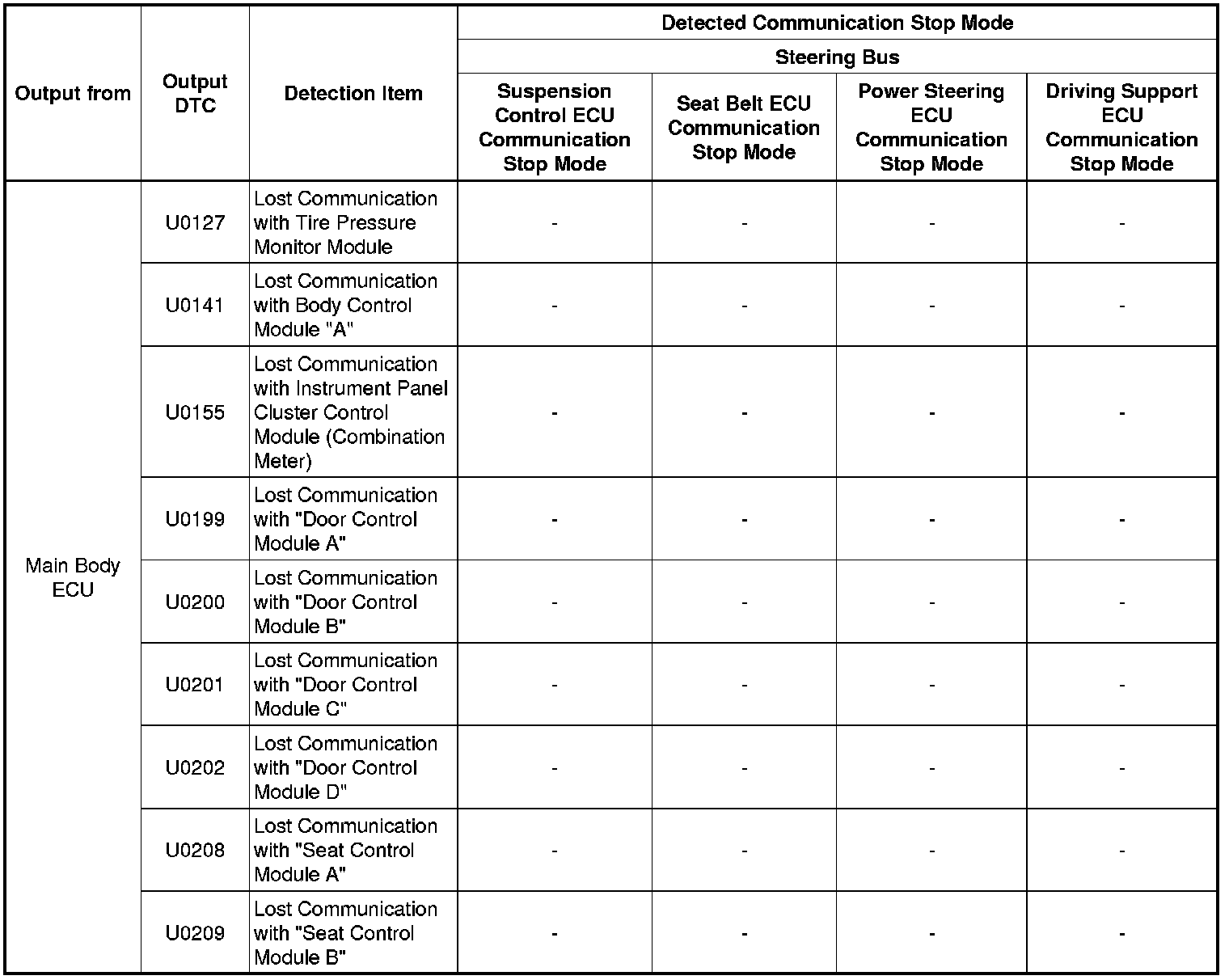

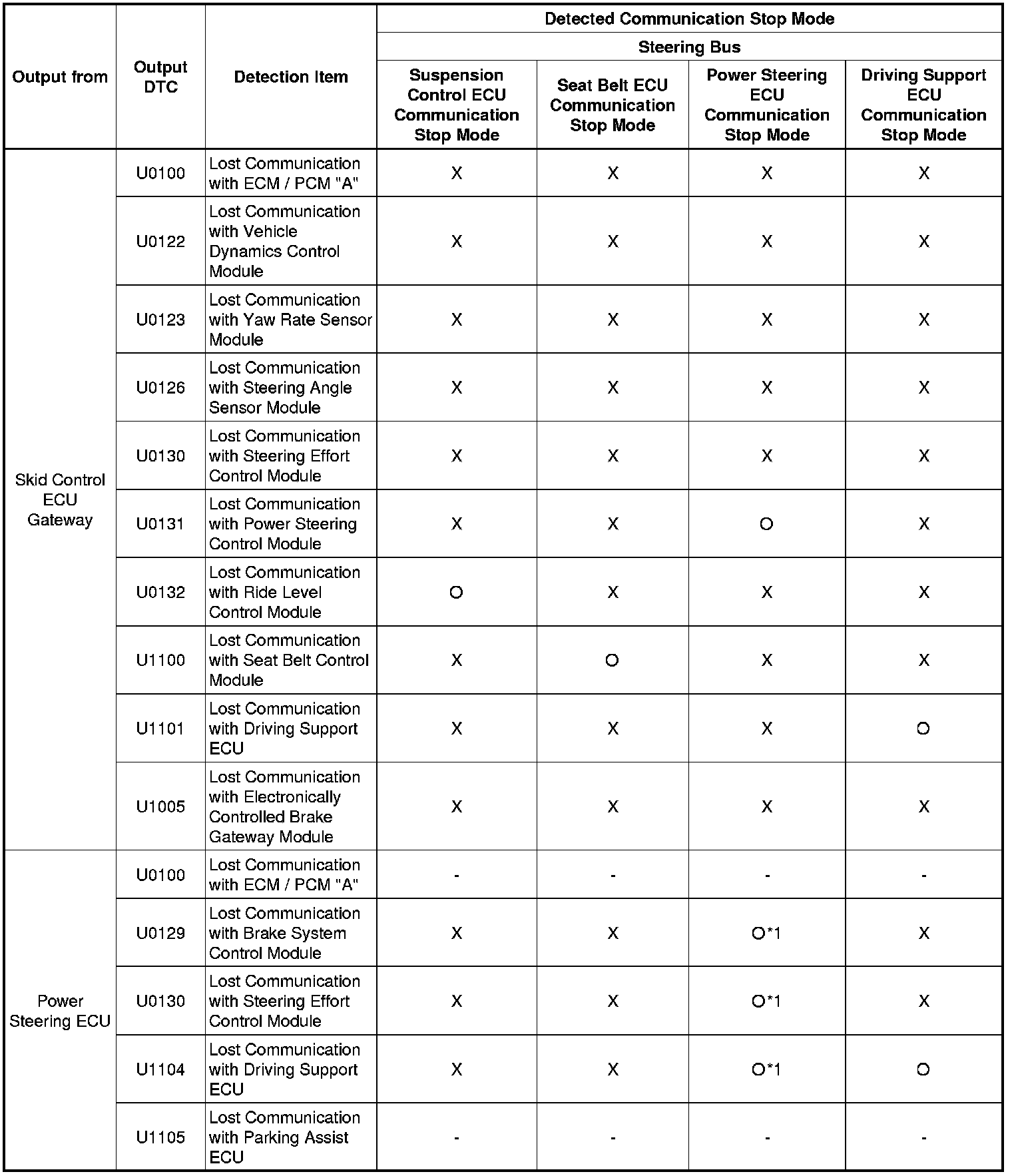

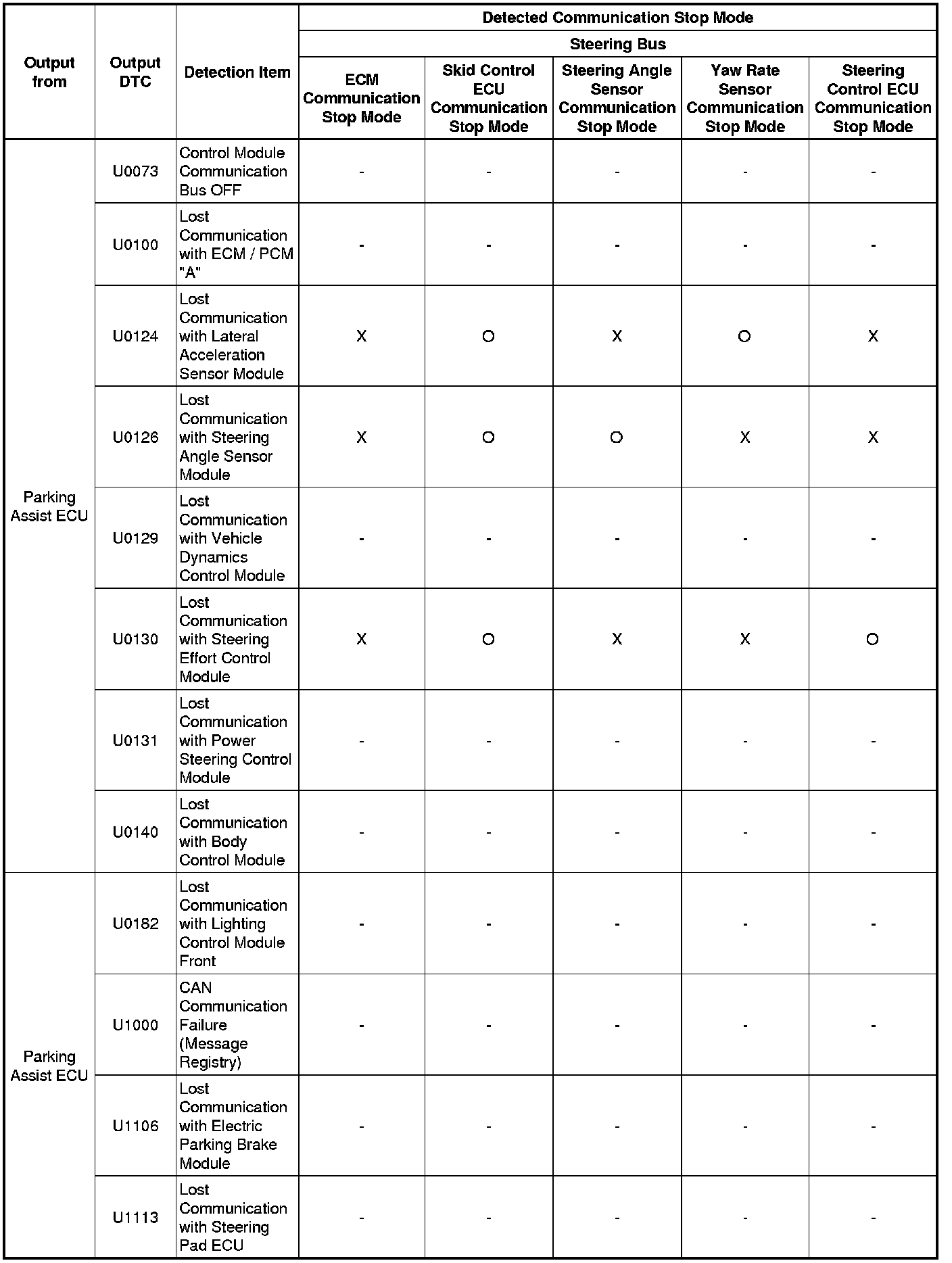

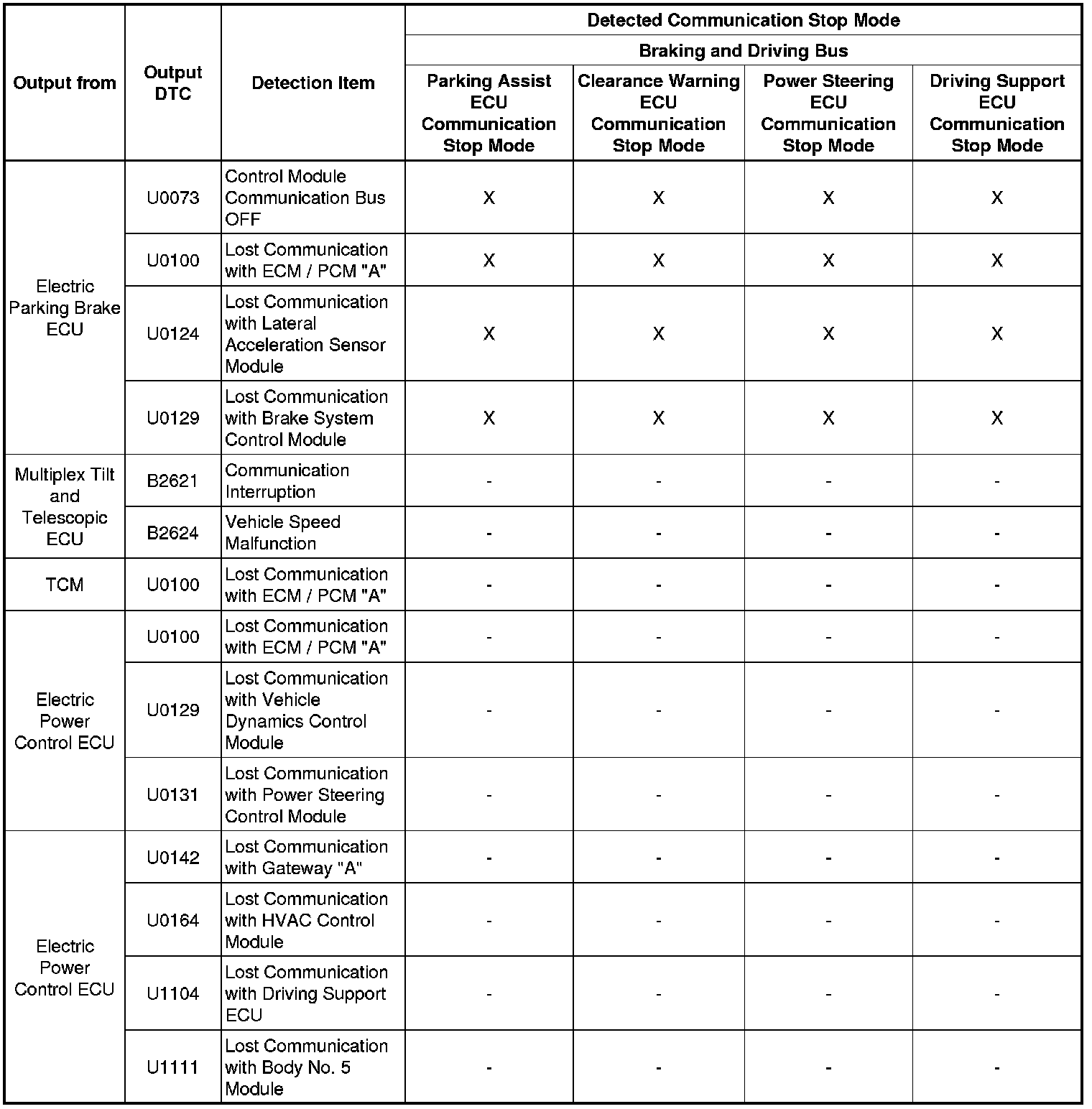

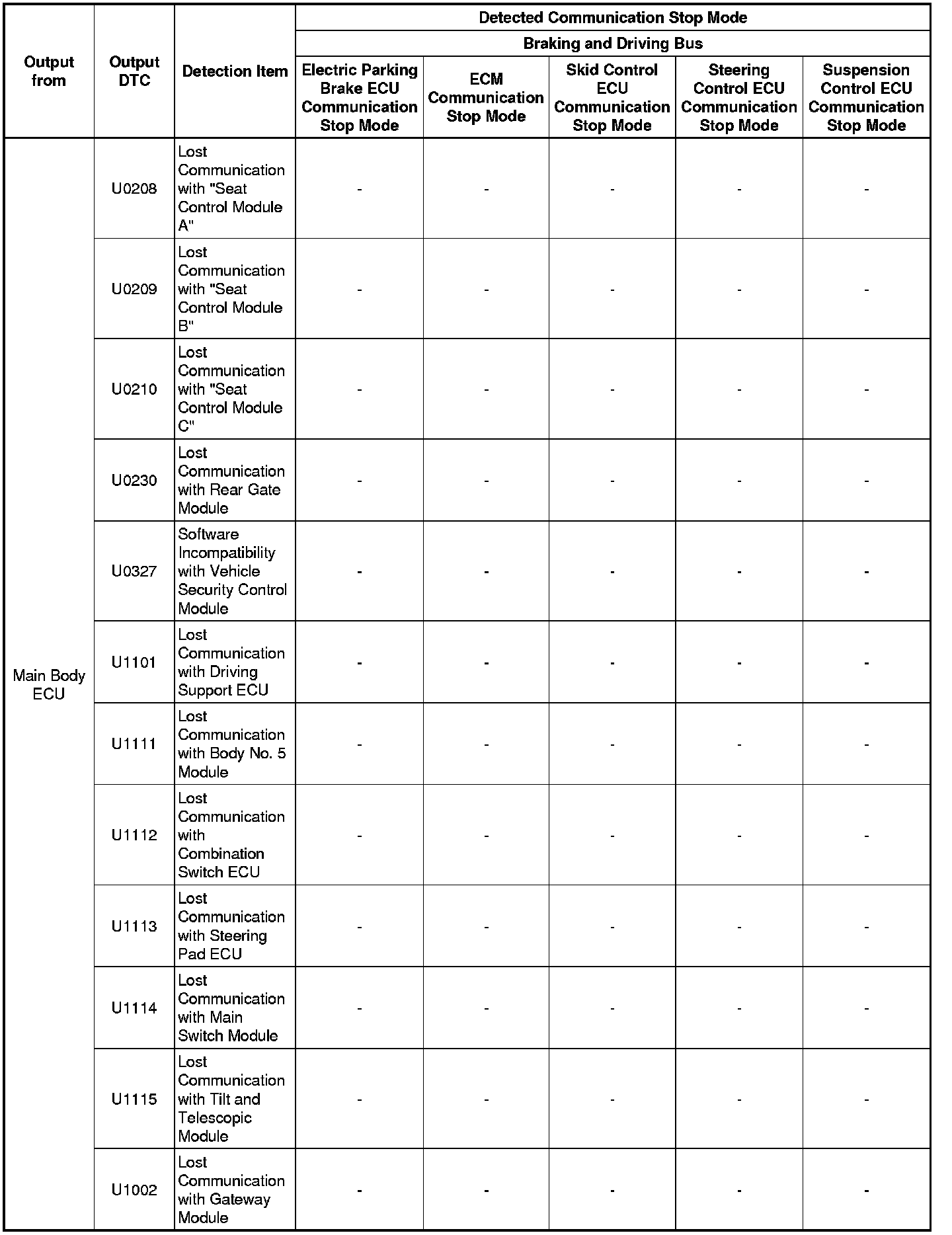

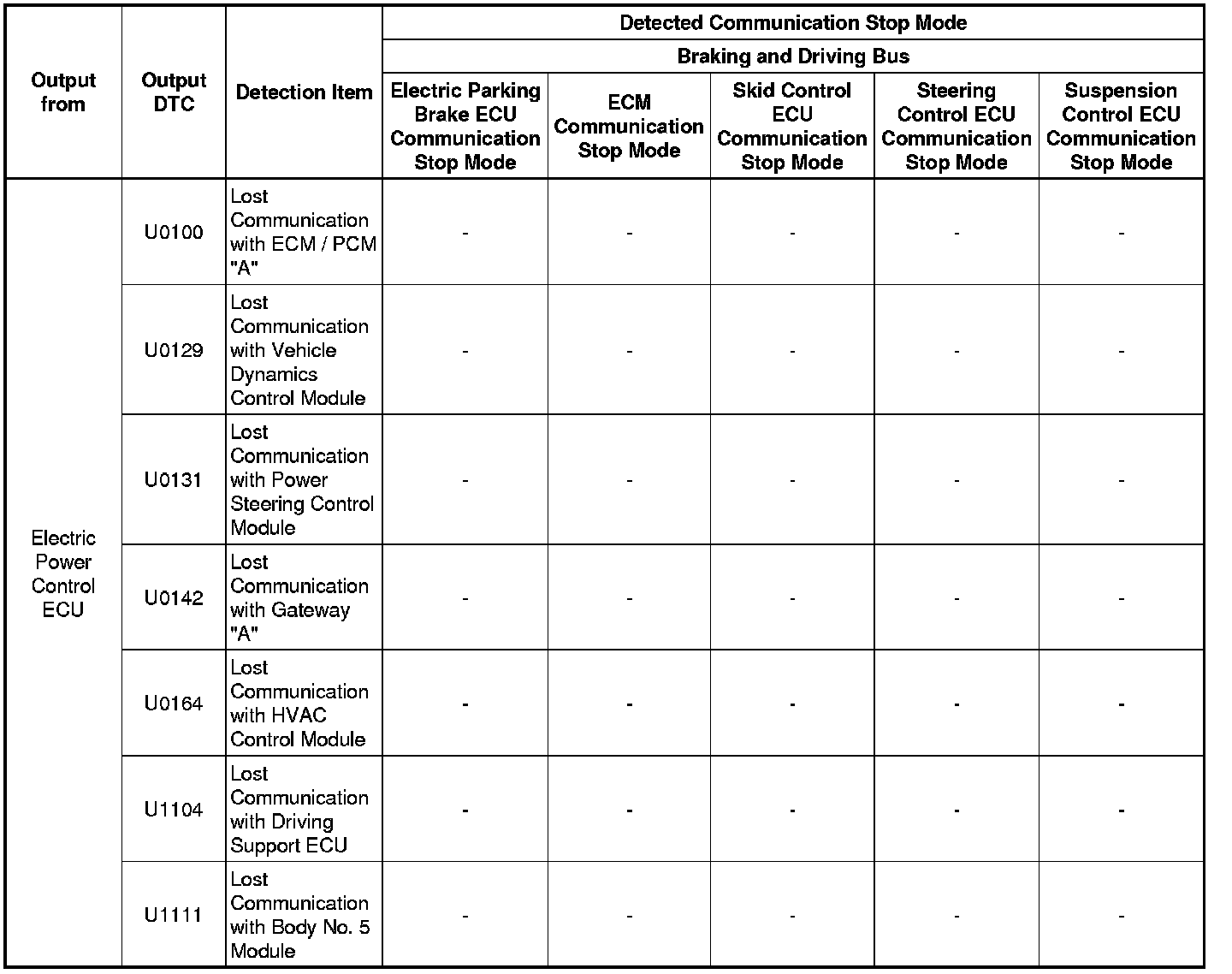

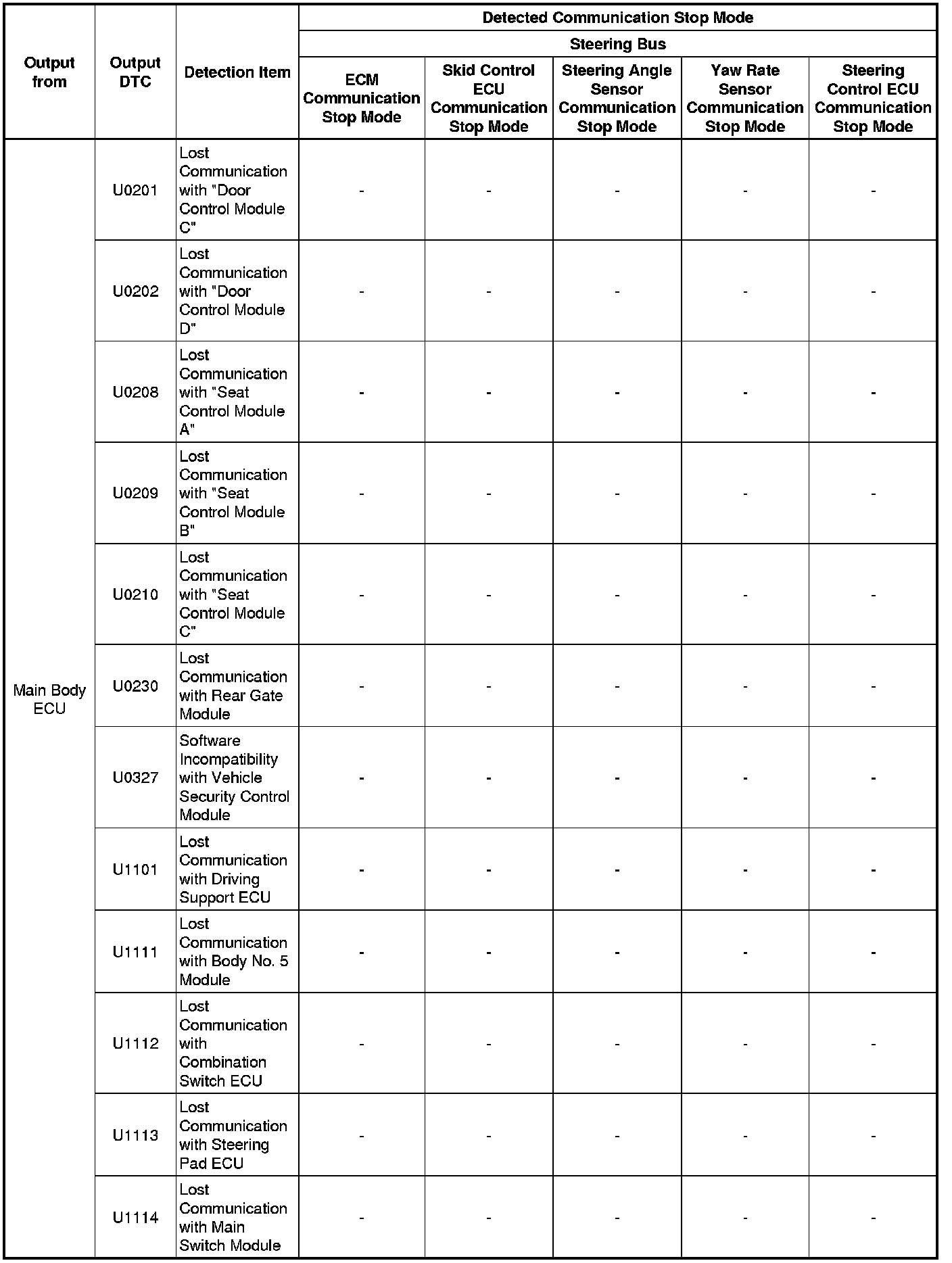

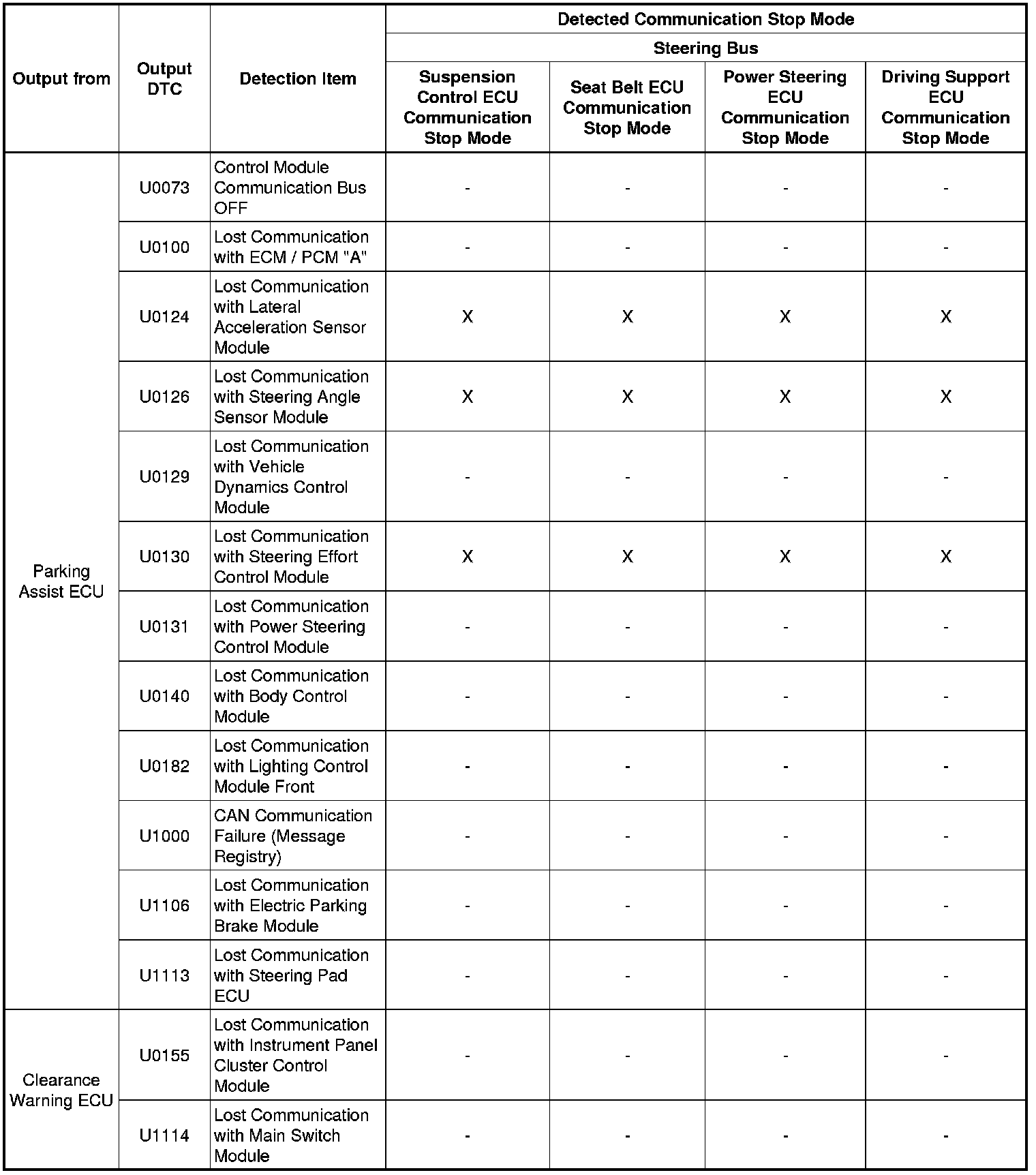

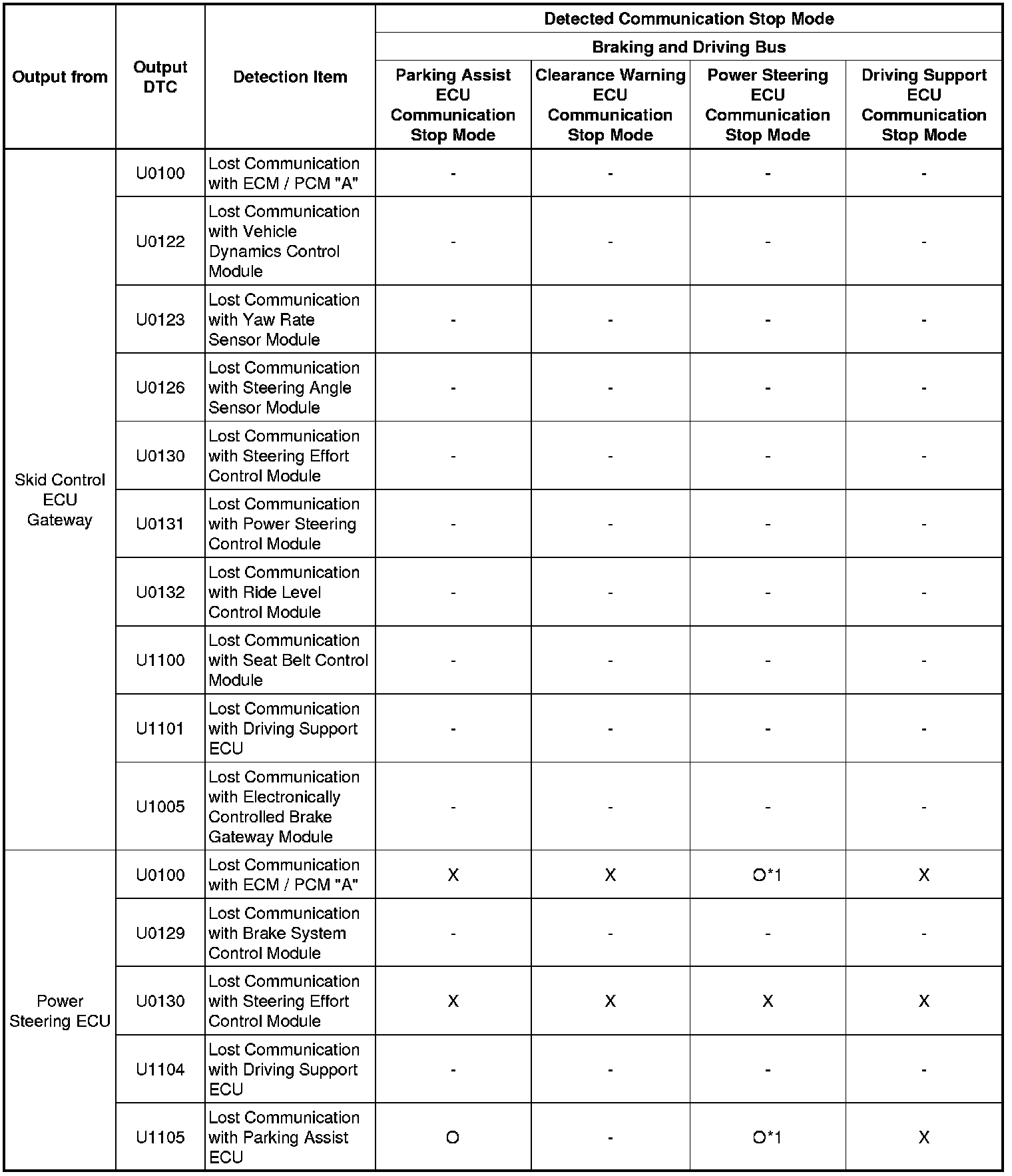

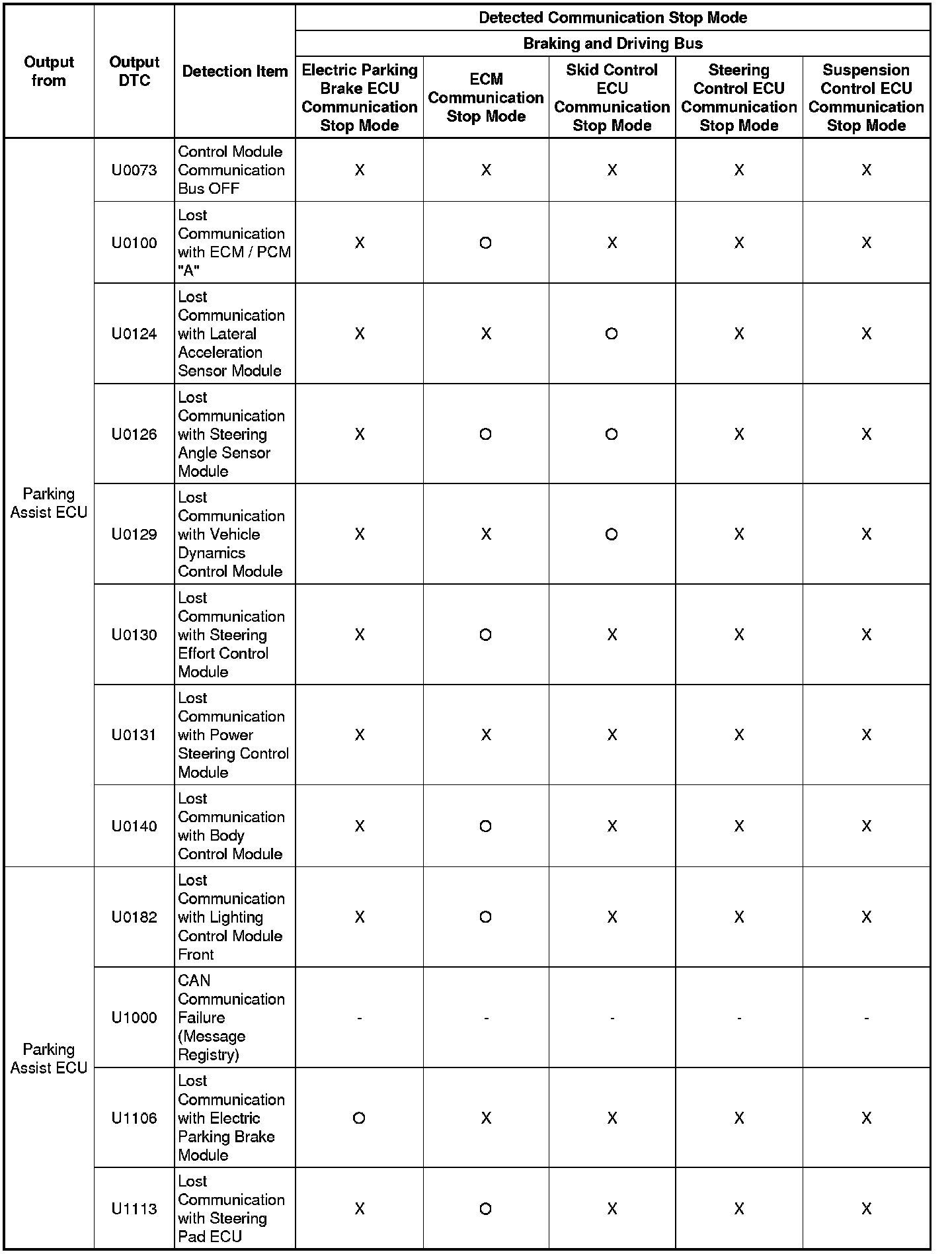

HINT
* o: Output.
* X: When one side of branch wire is open, output may occur.
* *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
* *6: Only present DTCs output.
* *8: The DTC is not output to the Techstream. It is only output to the screen of the display and navigation module display.
* *9: Electronically Controlled Brake
* *10: for parking assist bus
* *11: Refer to the Lane Keeping Assist System Lane-Keeping Assist System.
* *12: Refer to the Diagnostic Trouble Code Chart CAN Communication System.

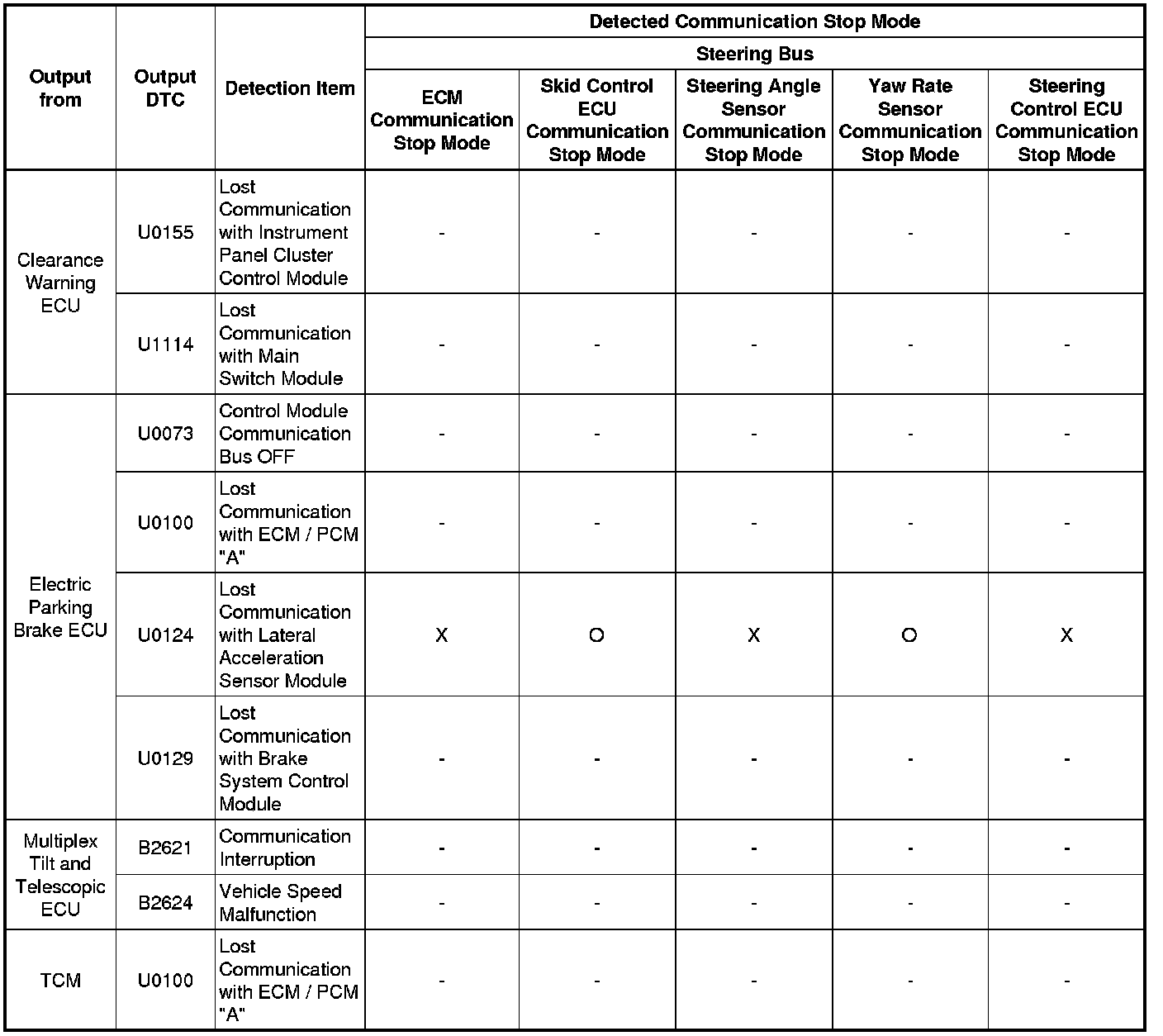

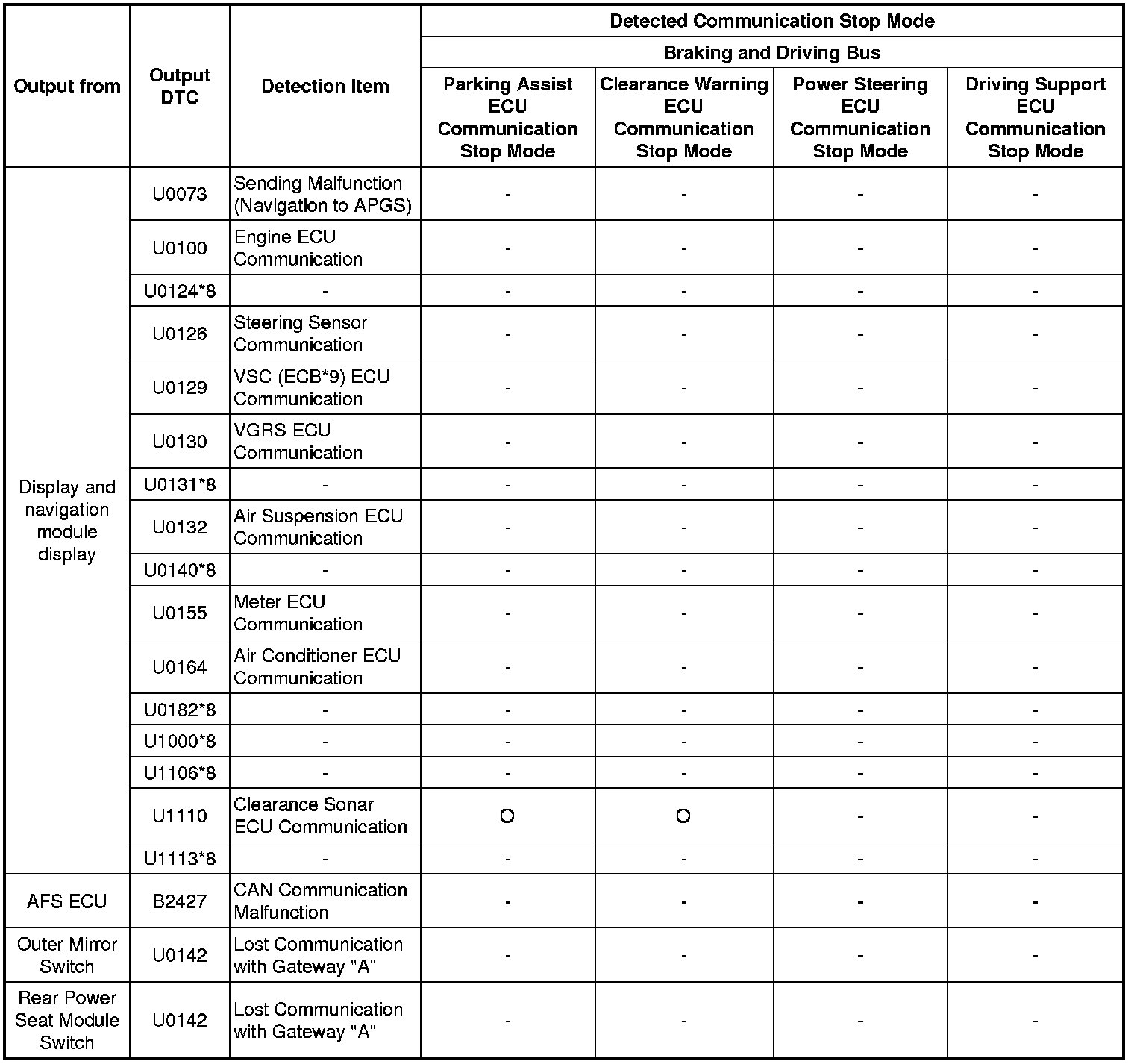

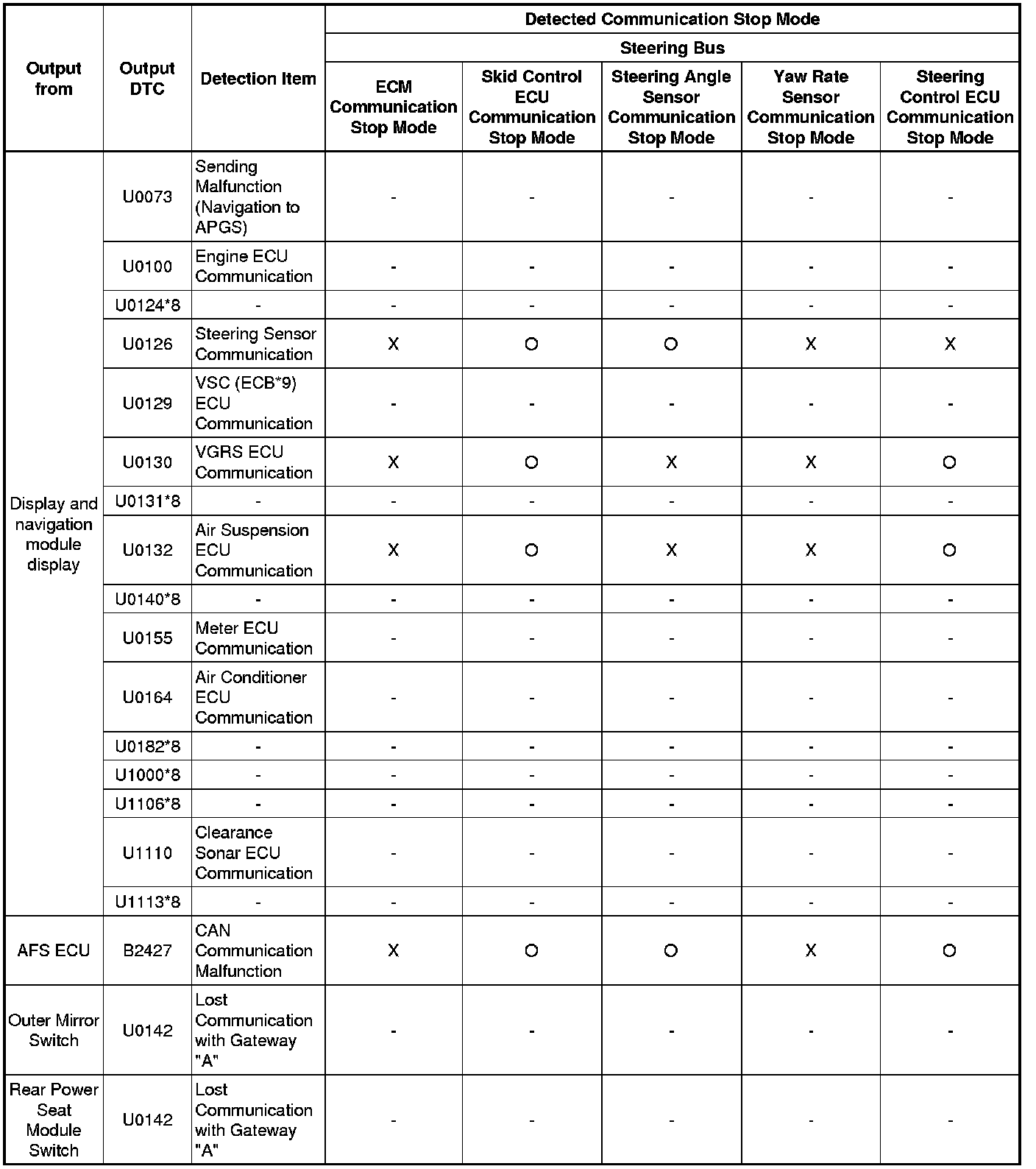

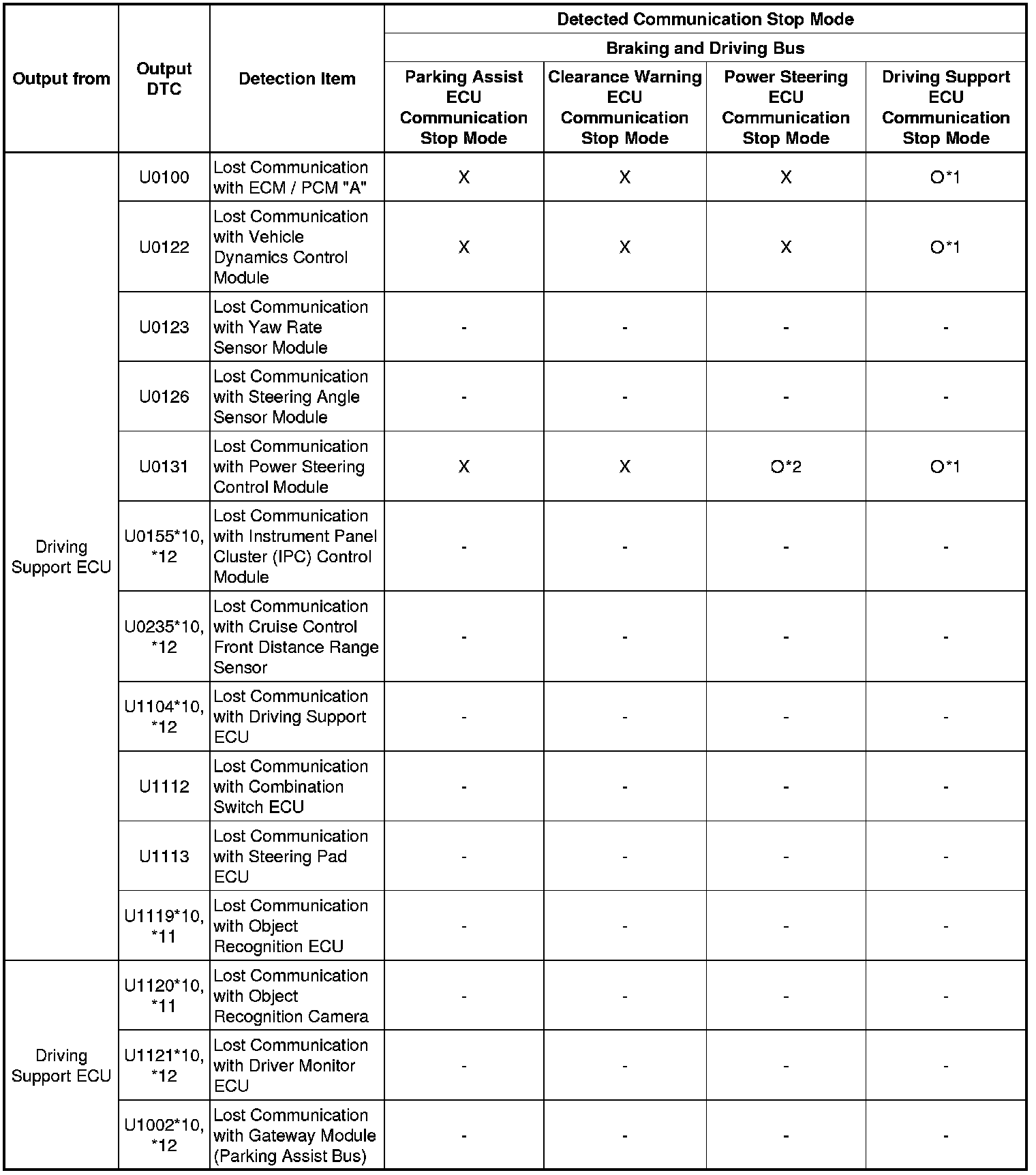

HINT
* o: Output.
* X: When one side of branch wire is open, output may occur.
* *1: Only output when communication recovery has occurred. During communication stop, cannot be output.

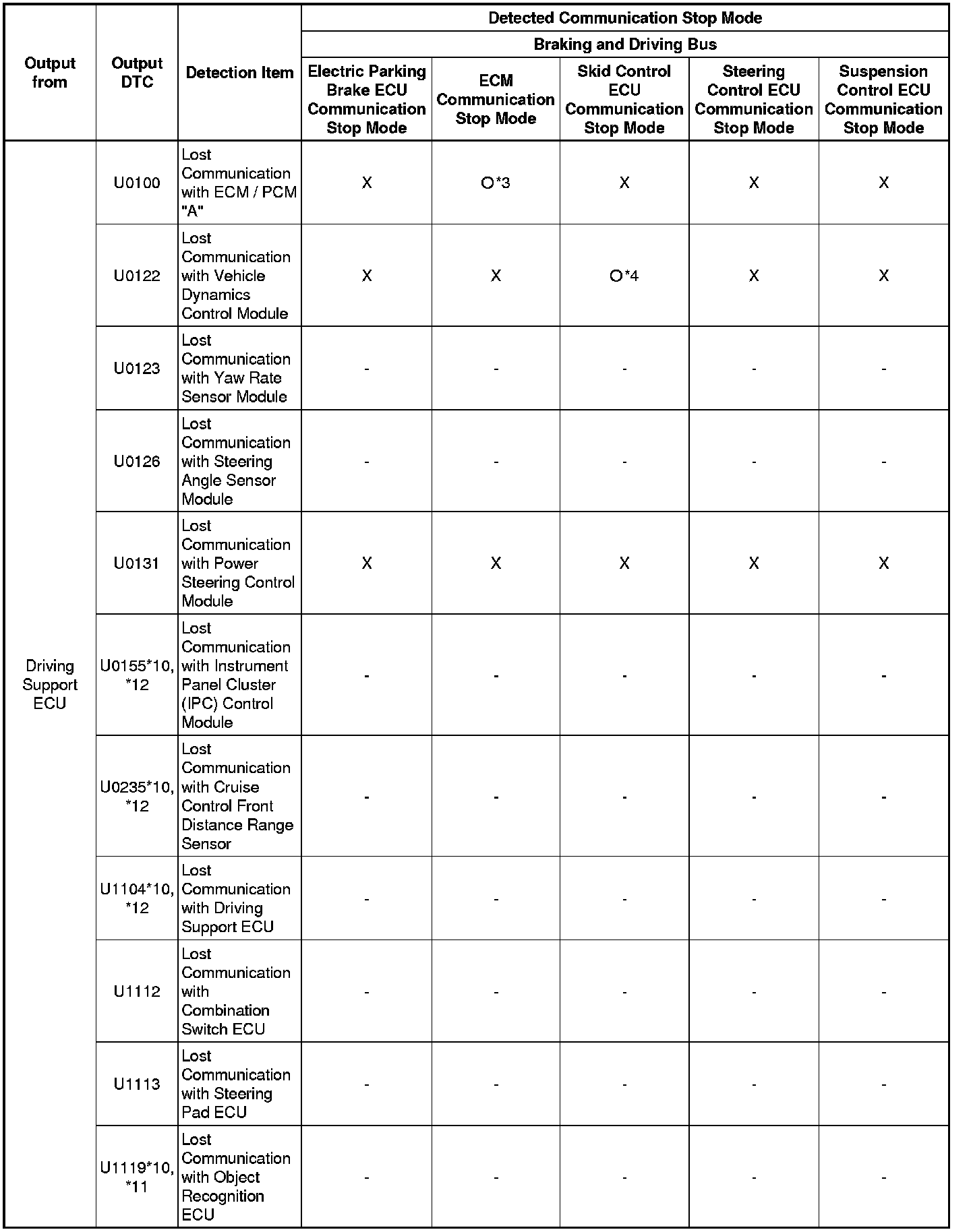

* *3: During dynamic radar cruise control and pre-collision system control.
* *4: During dynamic radar cruise control, lane-keep control and pre-collision system control.
* *5: While driving.
* *6: Only present DTCs output.
* *7: Output only immediately after engine switch turned on (IG).
* *8: The DTC is not output to the Techstream. It is only output to the screen of the display and navigation module display.
* *9: Electronically Controlled Brake
* *10: for parking assist bus
* *11: Refer to the Lane Keeping Assist System Lane-Keeping Assist System.
* *12: Refer to the Diagnostic Trouble Code Chart CAN Communication System.

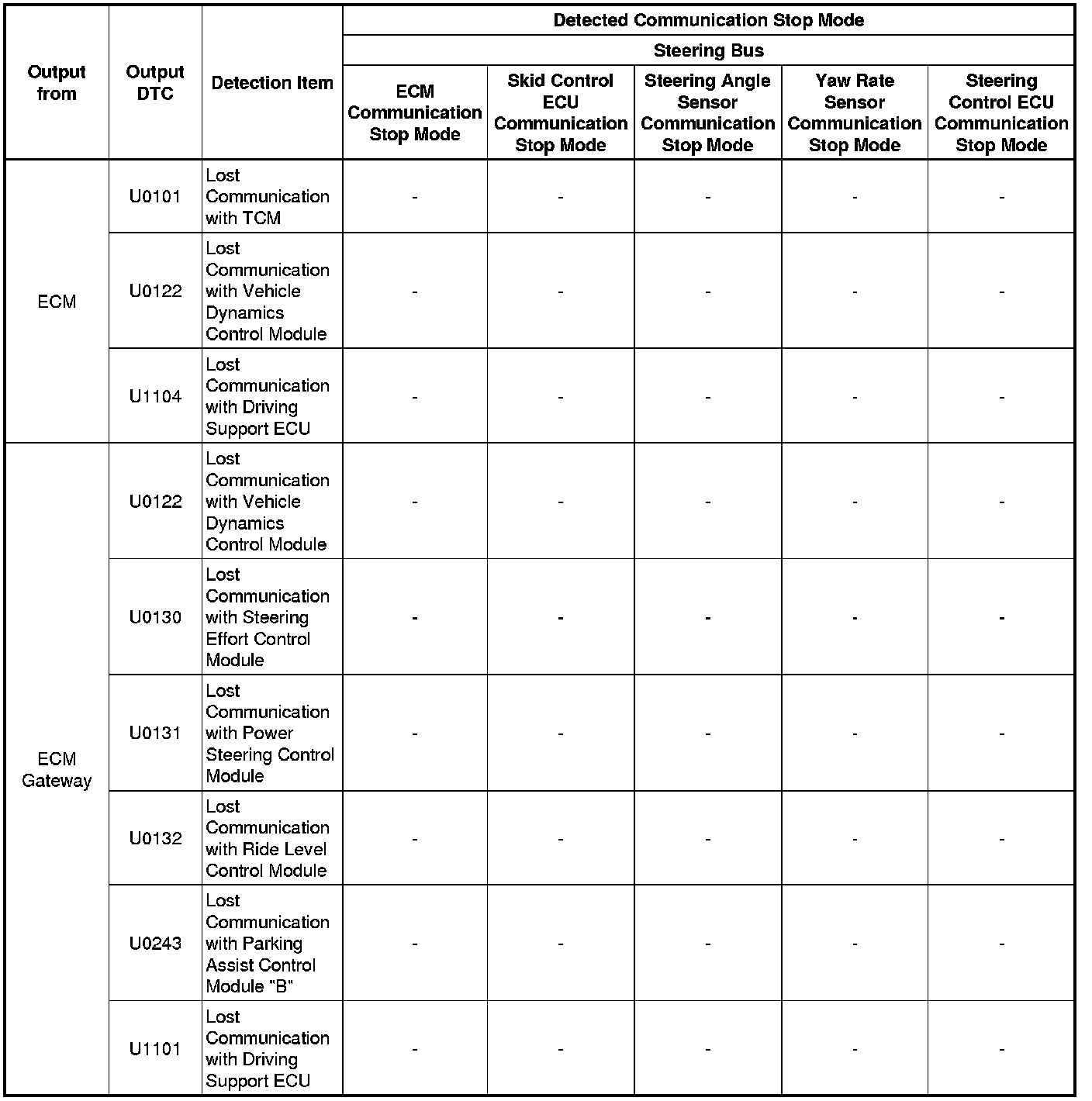

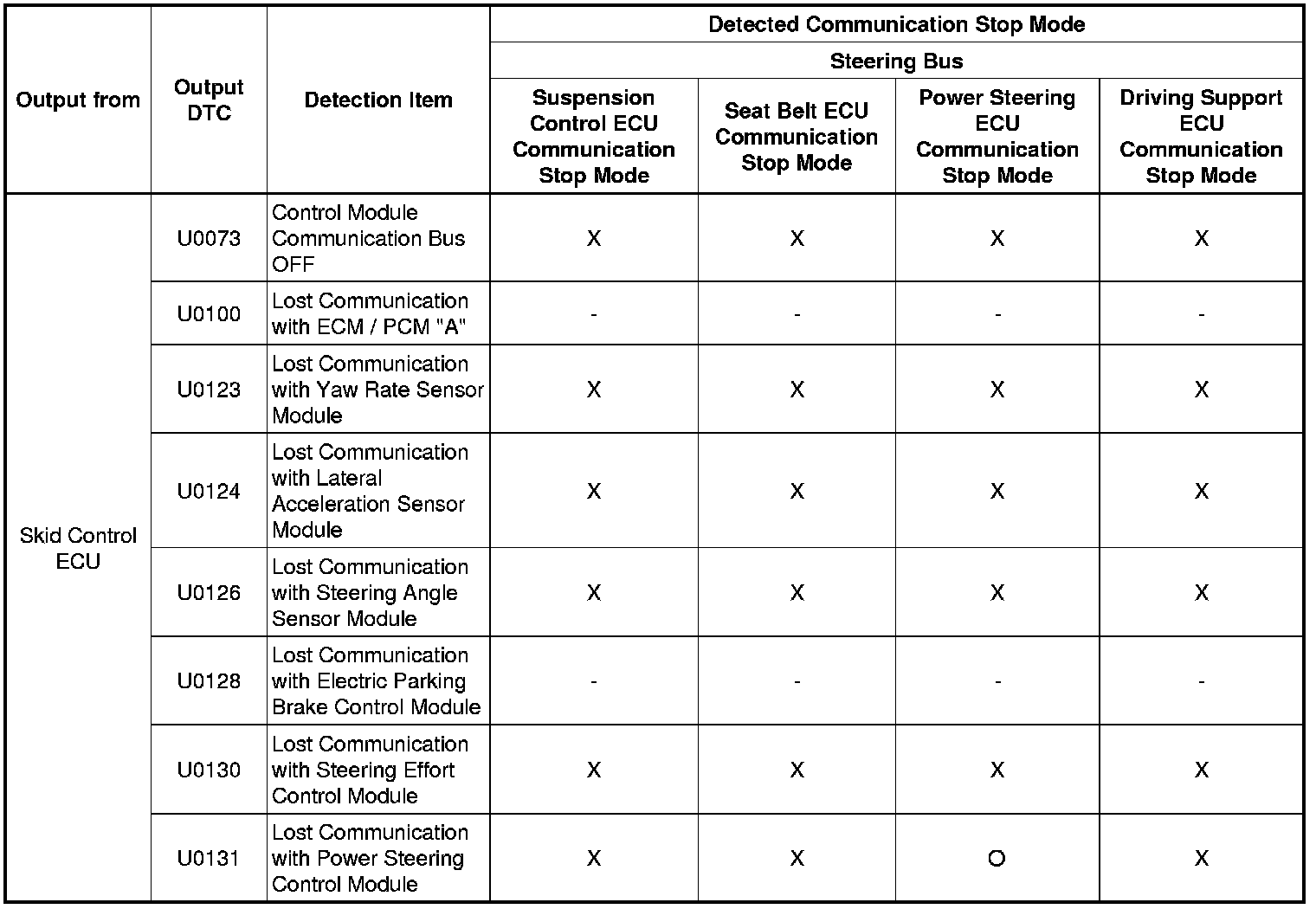

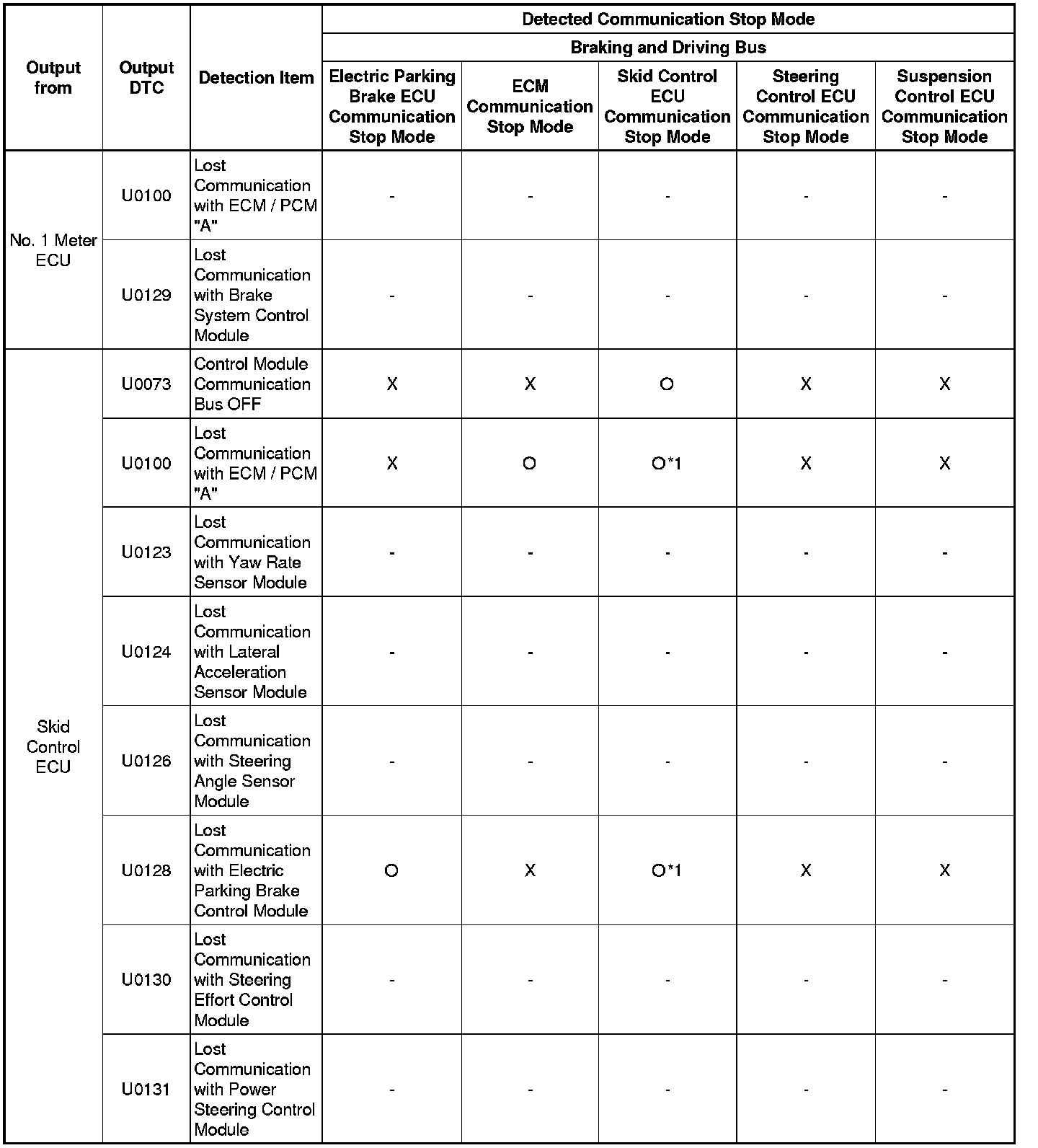

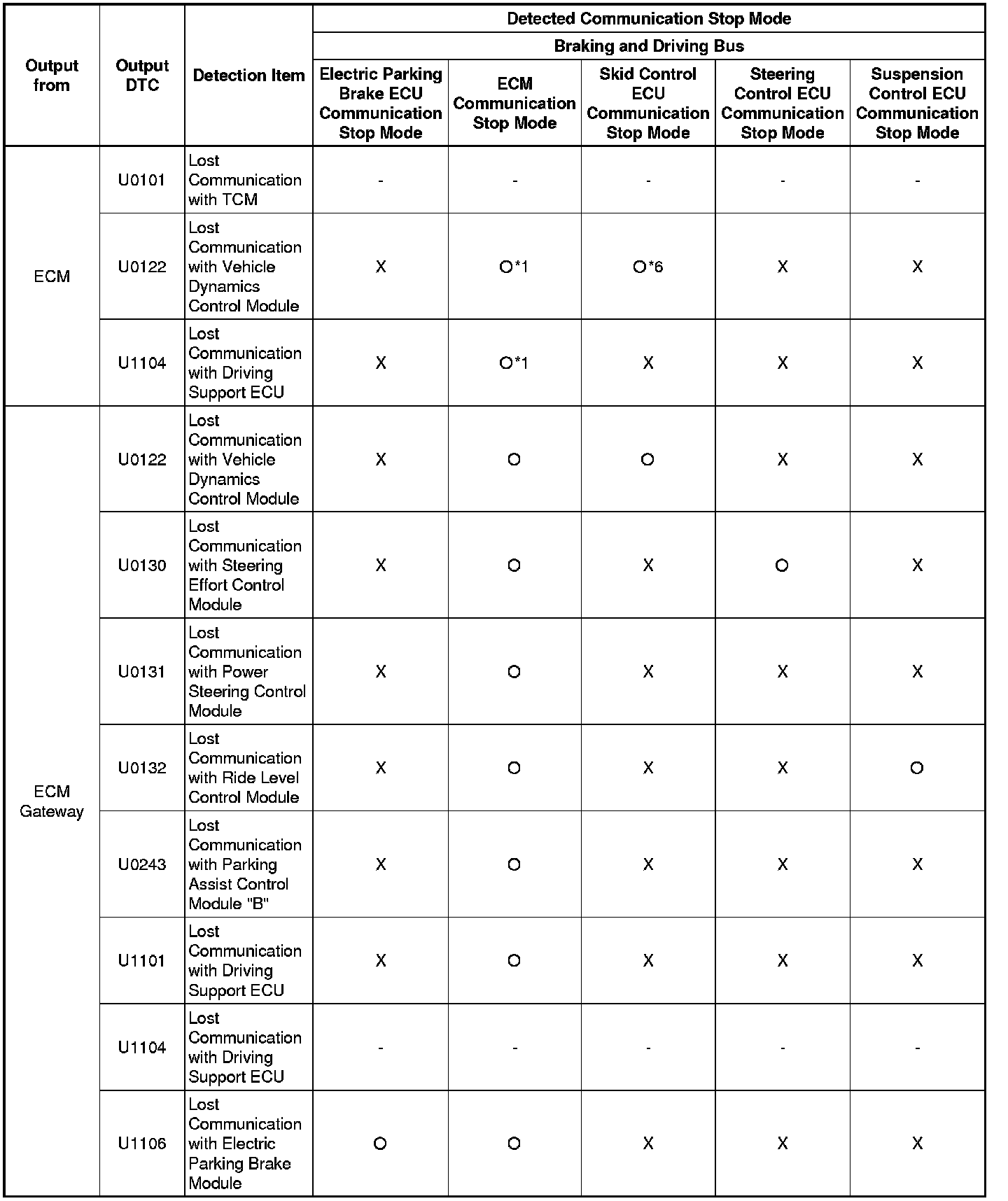

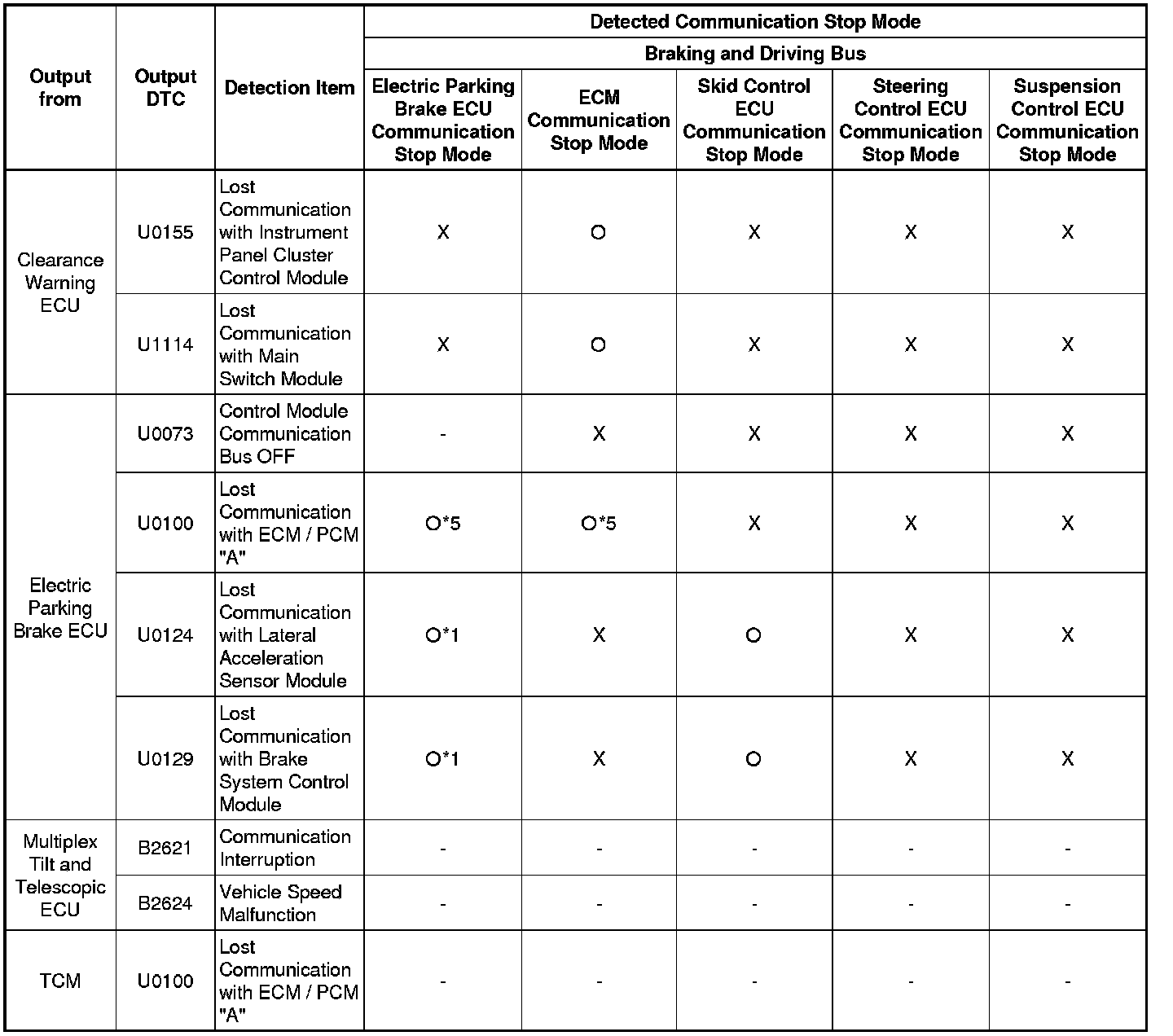

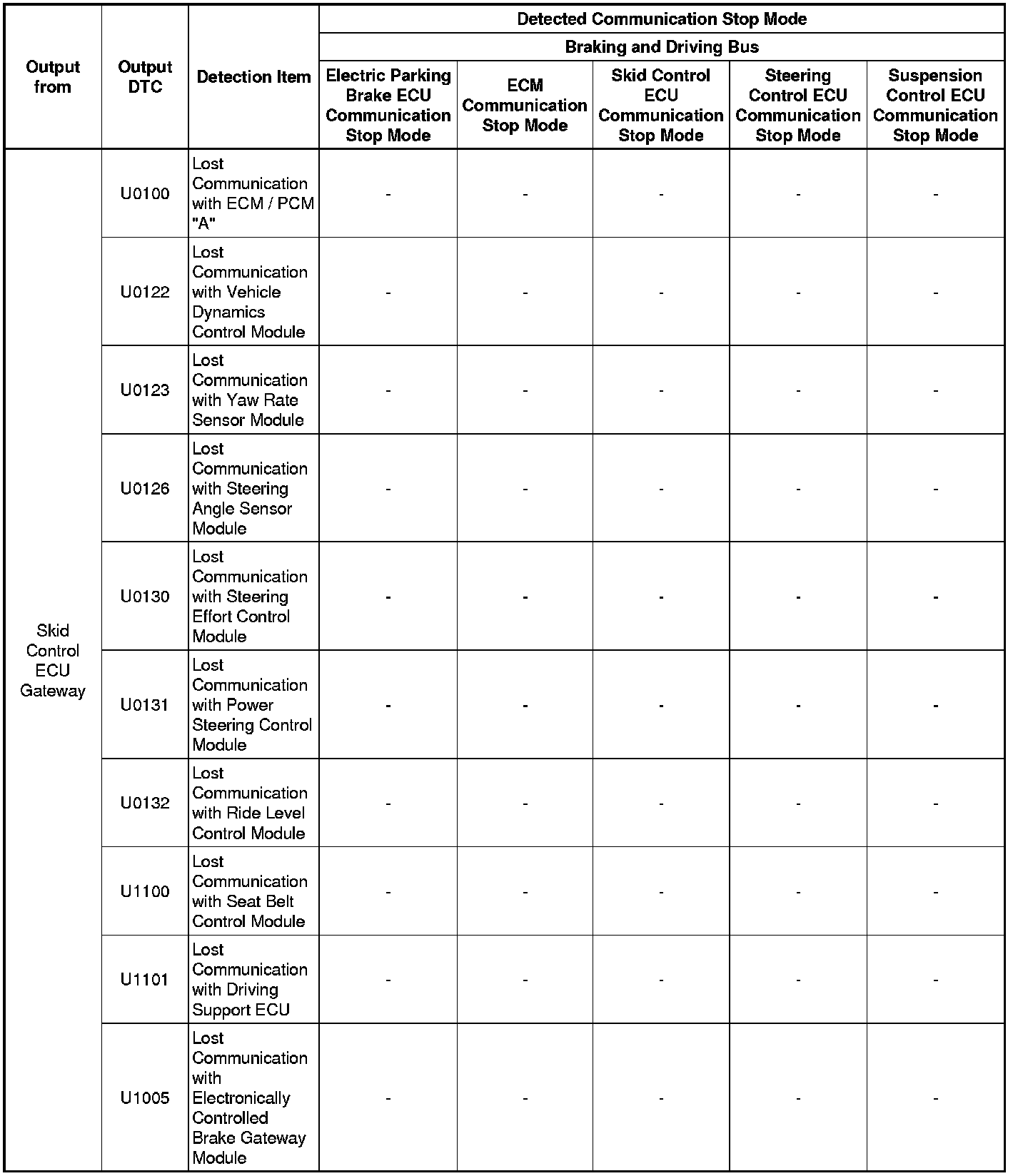

HINT
* o: Output.
* X: When one side of branch wire is open, output may occur.
* *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
* *5: While driving.
* *6: Only present DTCs output.
* *8: The DTC is not output to the Techstream. It is only output to the screen of the display and navigation module display.
* *9: Electronically Controlled Brake
* *10: for parking assist bus
* *11: Refer to the Lane Keeping Assist System Lane-Keeping Assist System.
* *12: Refer to the Diagnostic Trouble Code Chart CAN Communication System.

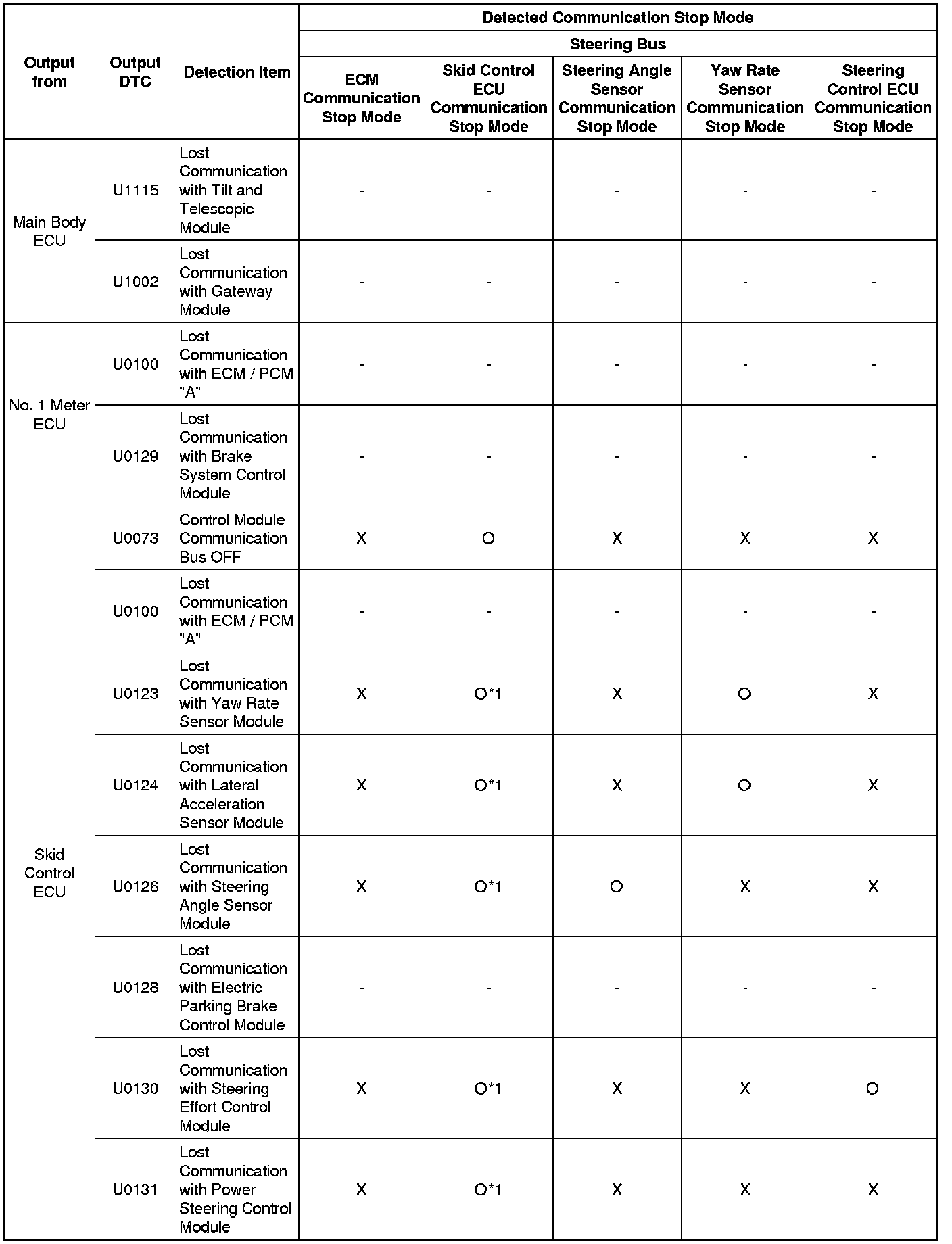

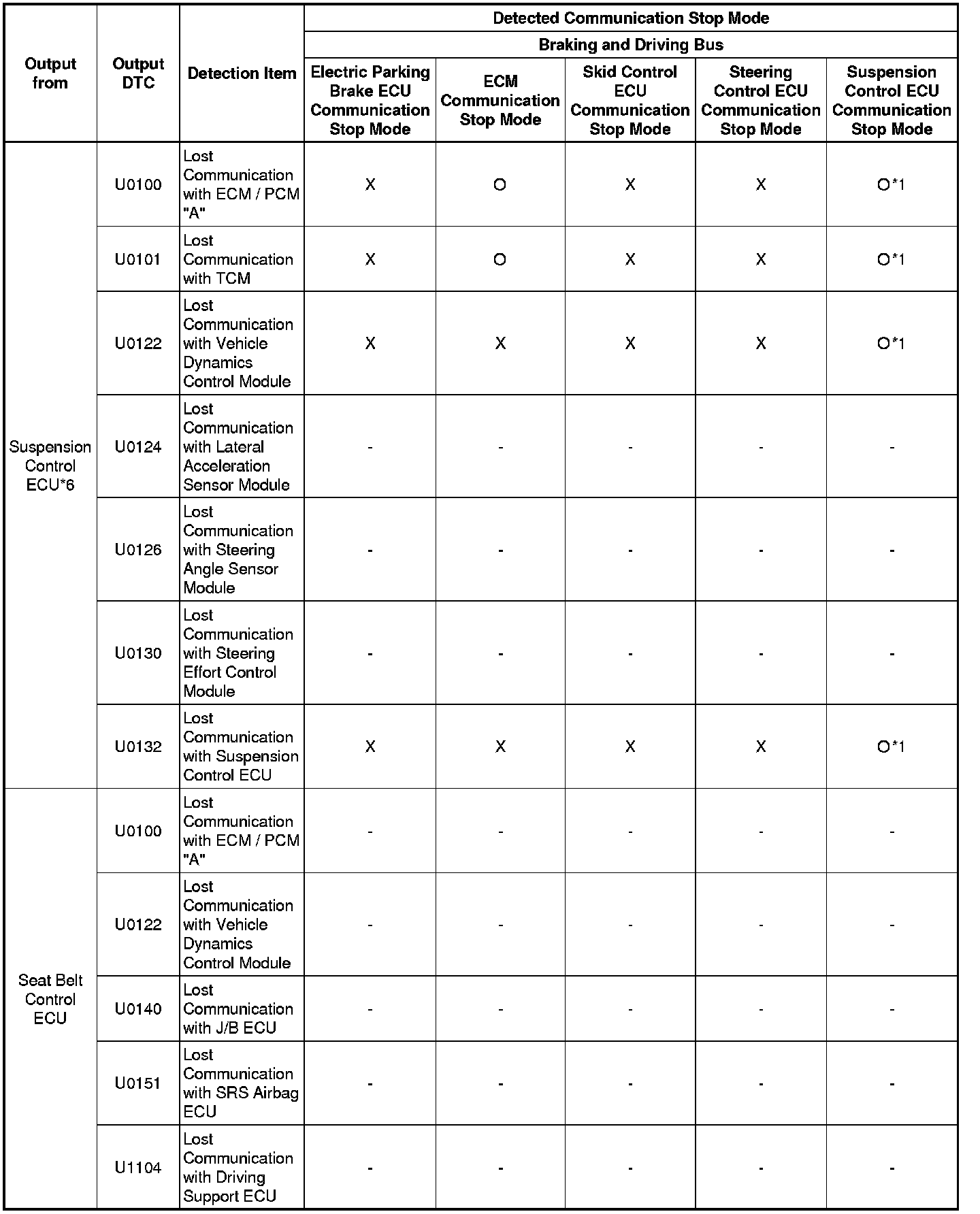

HINT
* o: Output.
* X: When one side of branch wire is open, output may occur.
* *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
* *3: During dynamic radar cruise control and pre-collision system control.
* *4: During dynamic radar cruise control, lane-keep control and pre-collision system control.
* *5: While driving.
* *6: Only present DTCs output.
* *8: The DTC is not output to the Techstream. It is only output to the screen of the display and navigation module display.
* *9: Electronically Controlled Brake
* *10: for parking assist bus
* *11: Refer to the Lane Keeping Assist System Lane-Keeping Assist System.
* *12: Refer to the Diagnostic Trouble Code Chart CAN Communication System.
