Center Airbag Sensor Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Center Airbag Sensor Communication Stop Mode
- Center Airbag Sensor Communication Stop Mode

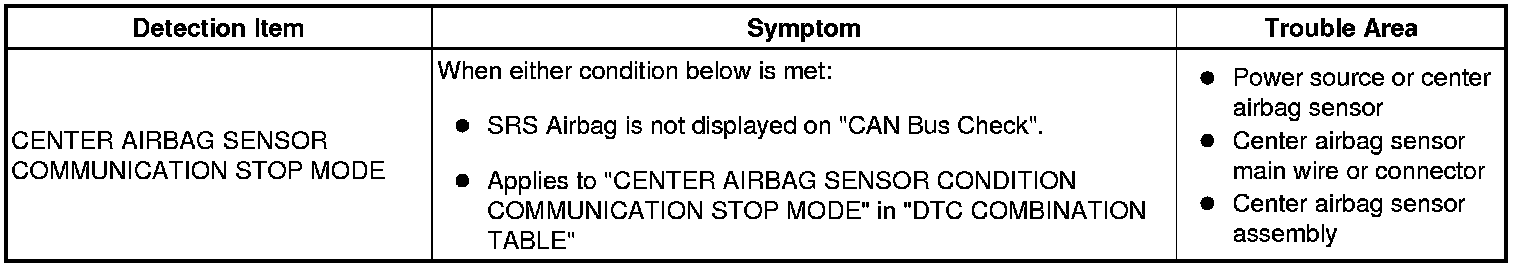

DESCRIPTION

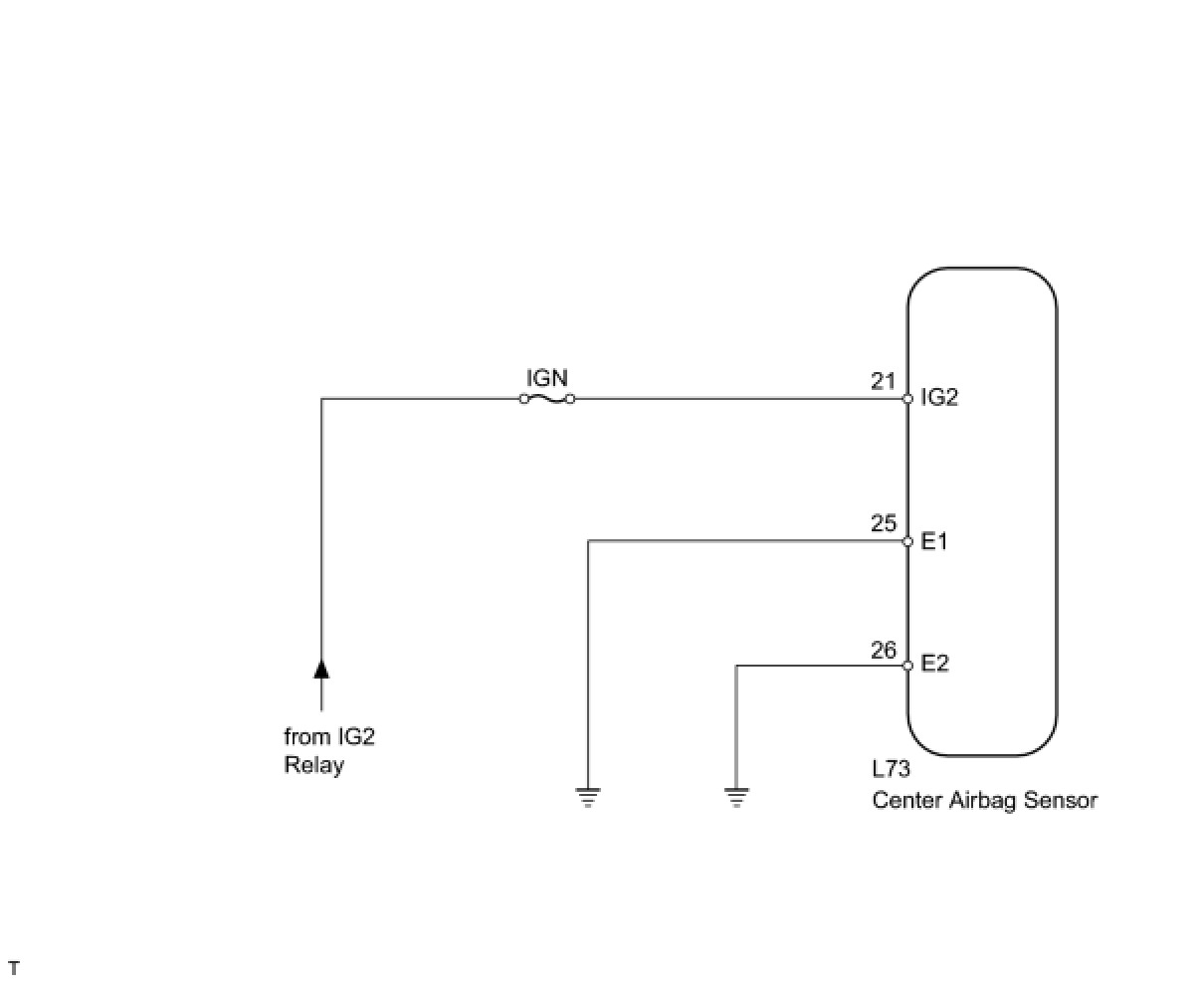

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (CENTER AIRBAG SENSOR - BATTERY AND BODY GROUND)

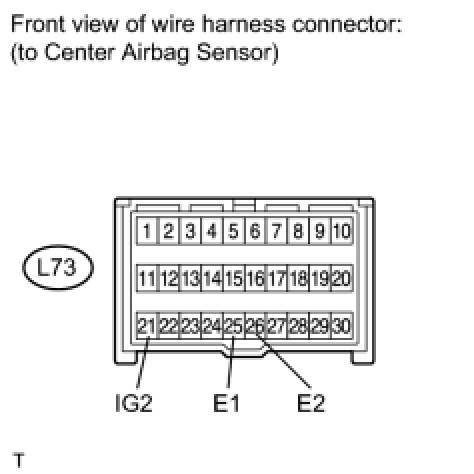

(a) Disconnect the L73 center airbag sensor connector.





(b) Measure the resistance according to the value(s) in the table below.

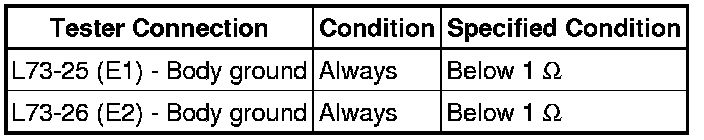

Standard resistance:





(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal
