LIN Communication System
LIN Communication System

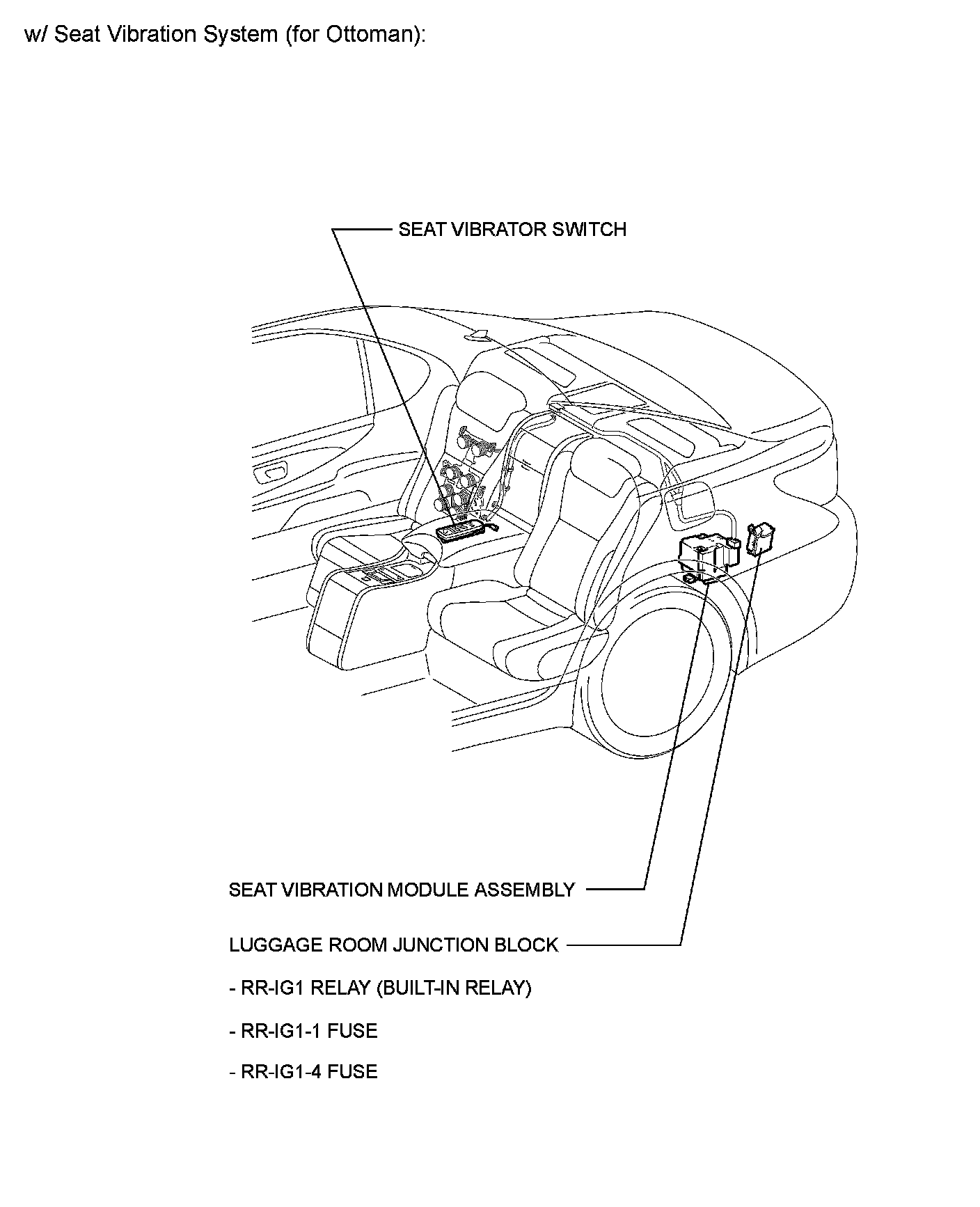

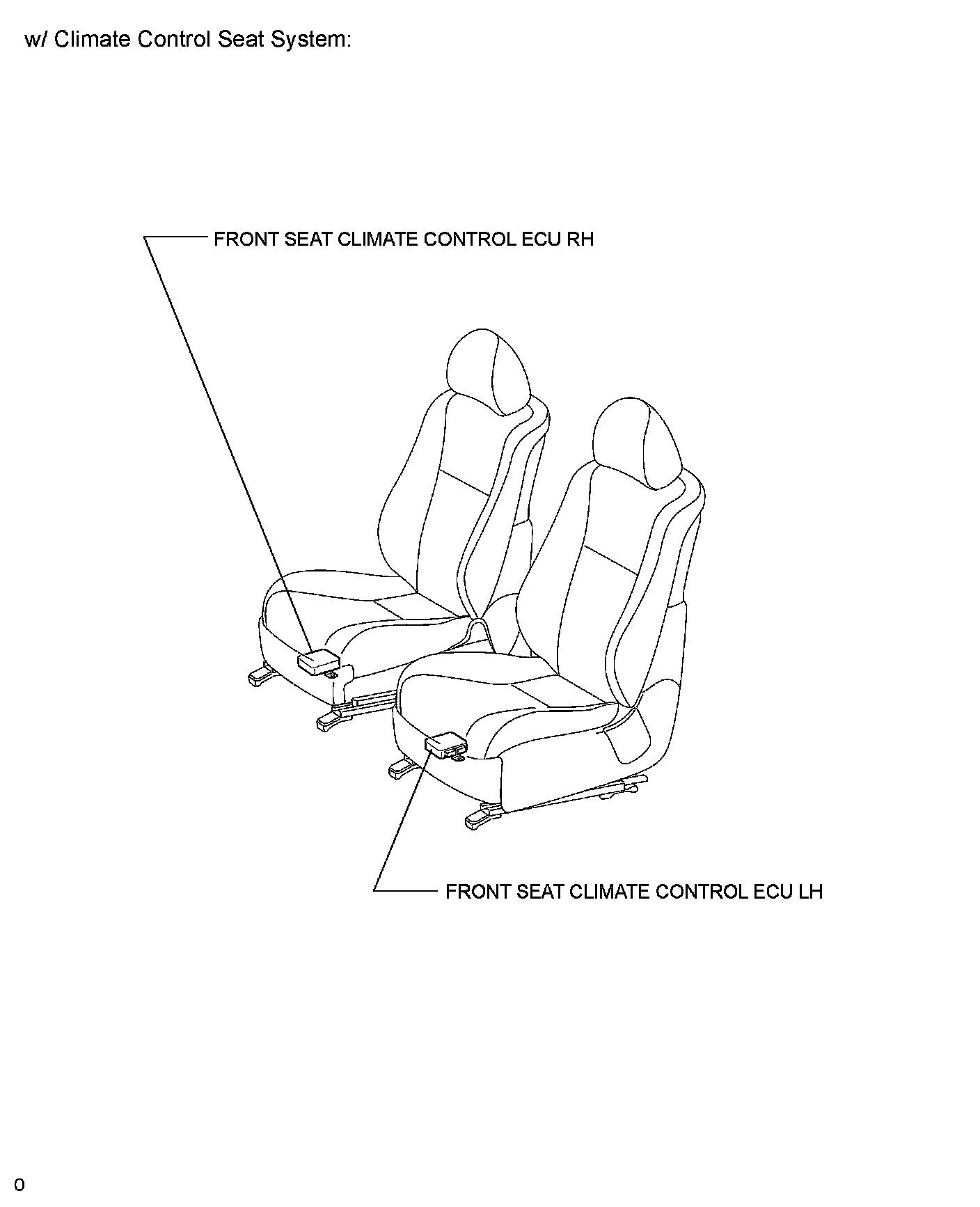

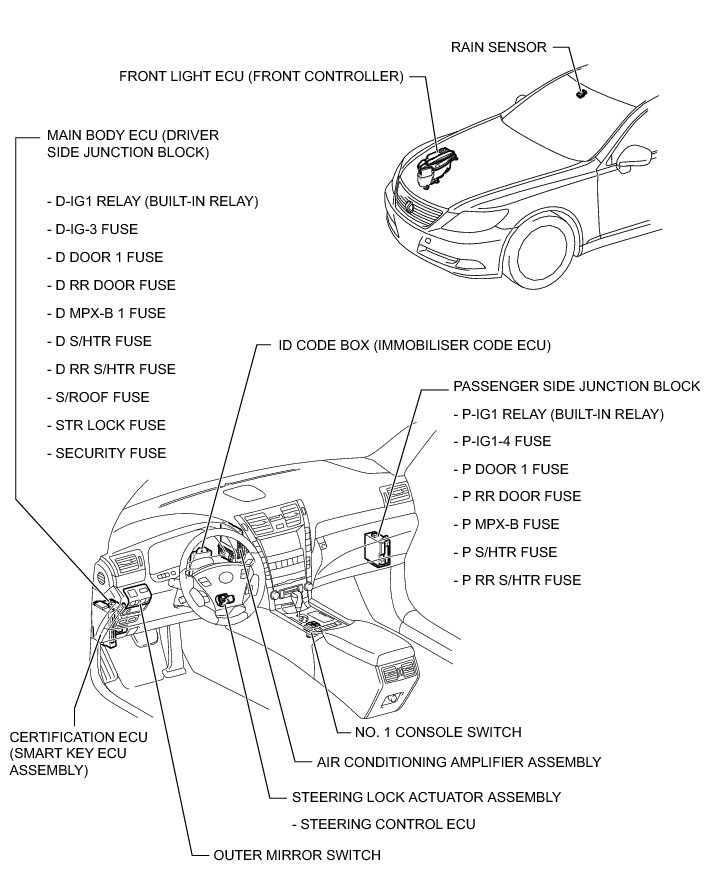

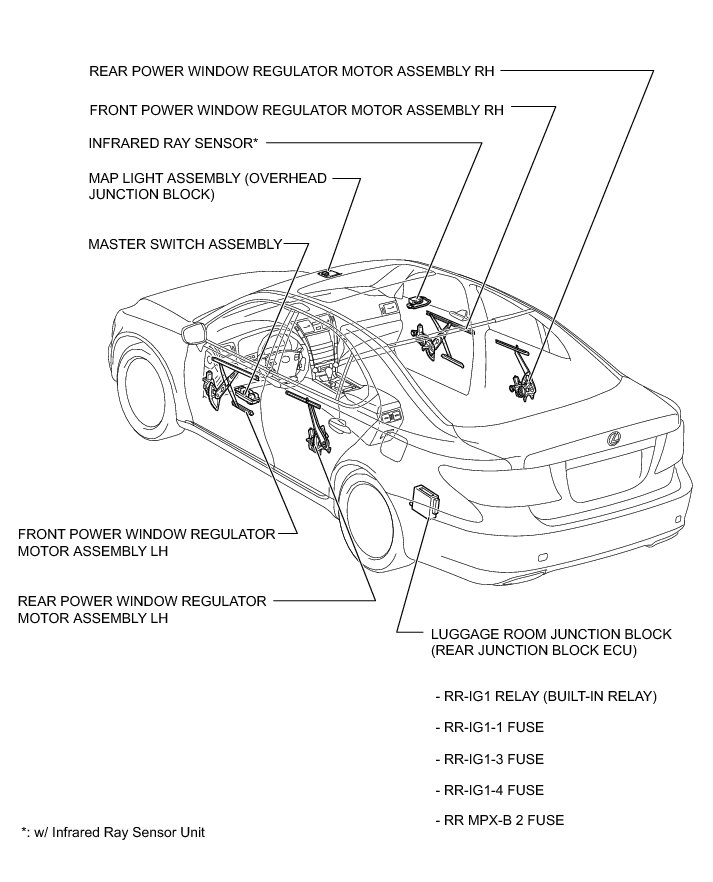

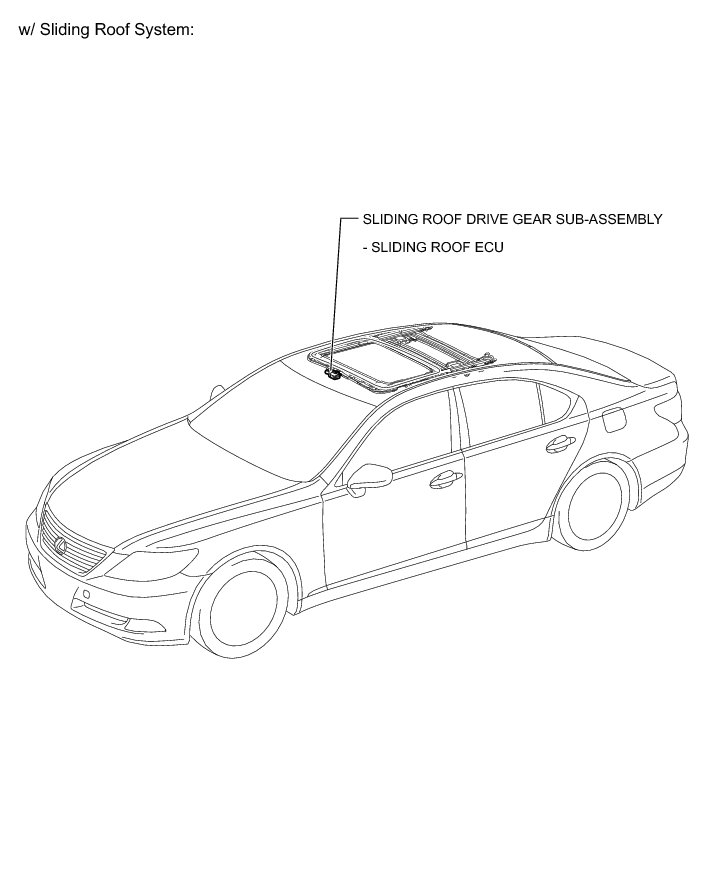

MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM: PARTS LOCATION

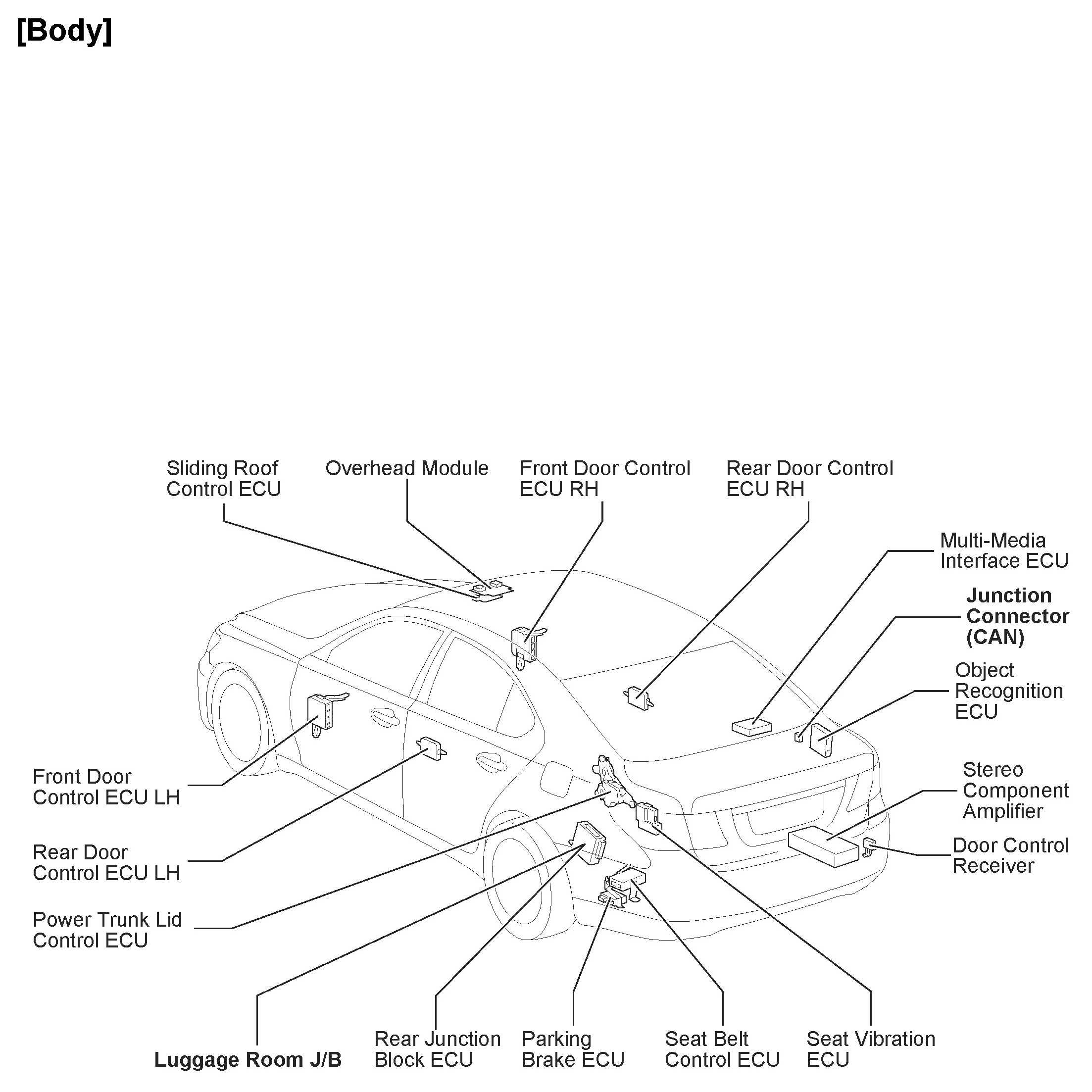

Body:
