High Pitched Horn

HORN: HIGH PITCHED HORN: INSPECTION

1. INSPECT HIGH PITCHED HORN

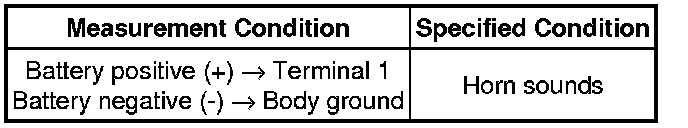

(a) Apply battery voltage and check operation of the horn, as shown in the table.

OK:





If the result is not as specified, replace the horn.
