Door Lamp: Testing and Inspection

LIGHTING: INSIDE HANDLE LIGHT: INSPECTION

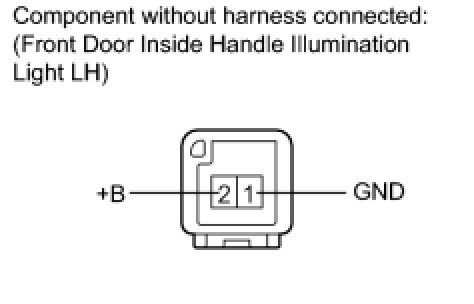

1. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.





OK:

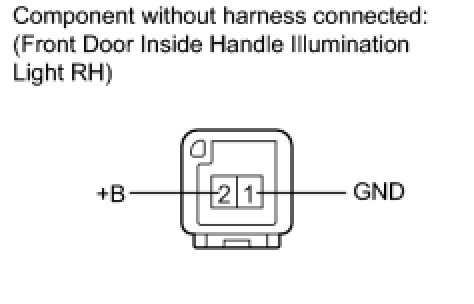

2. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH

(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.





OK:

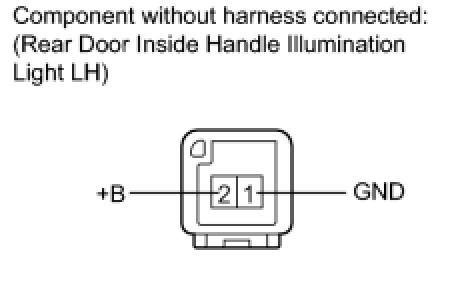

3. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.





OK:





4. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH

(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.





OK:
