Operation Check

METER: METER / GAUGE SYSTEM: OPERATION CHECK

1. INSPECT INDICATOR/WARNING LIGHT

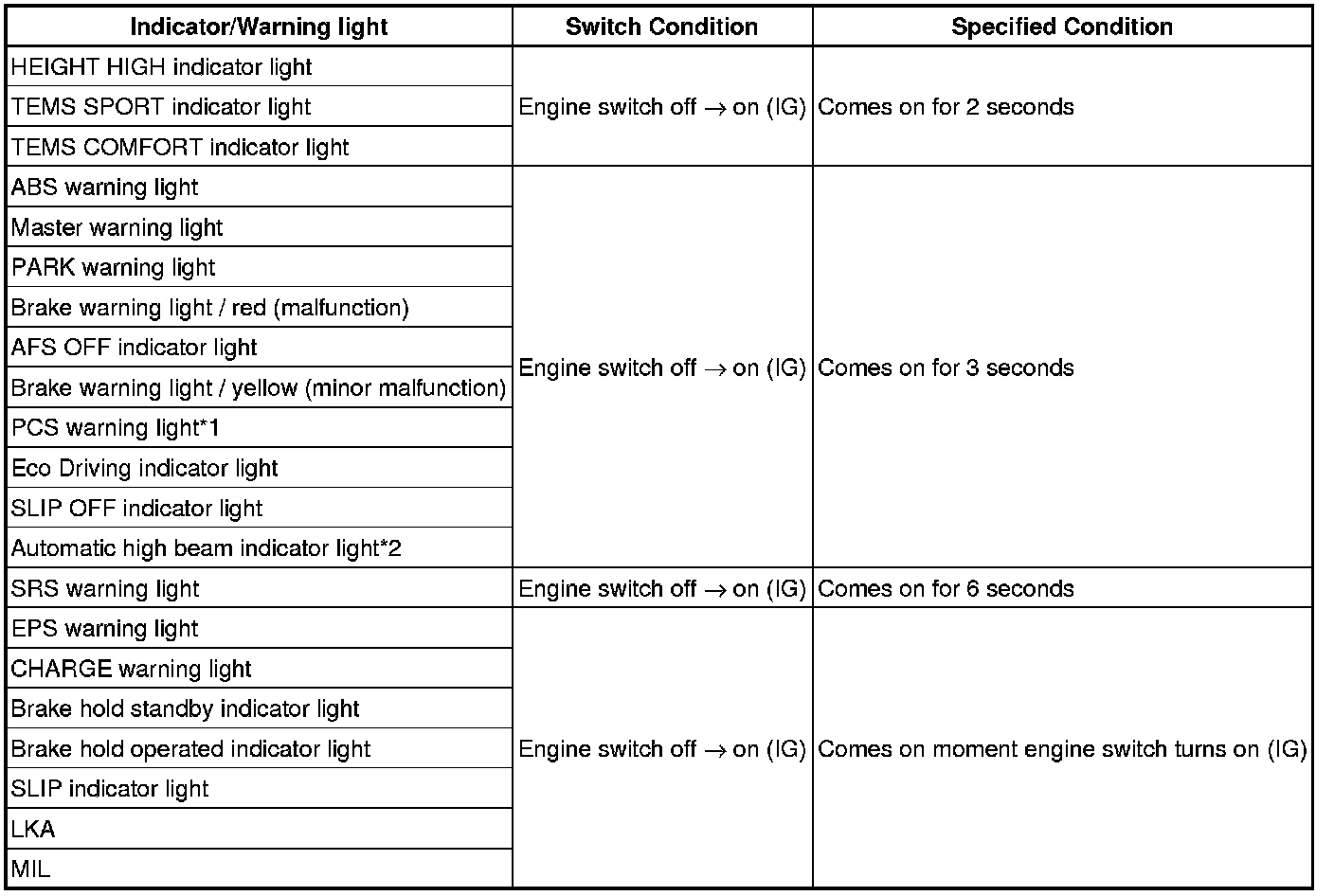

(a) Check the following indicators and warning lights.





HINT
*1: w/ Pre-collision system

*2: w/ Automatic high beam system

2. INSPECT SPEEDOMETER

(a) Connect the Techstream to the DLC3 connector.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Data List.

(e) According to the display on Techstream, read the Data List.

Reference:

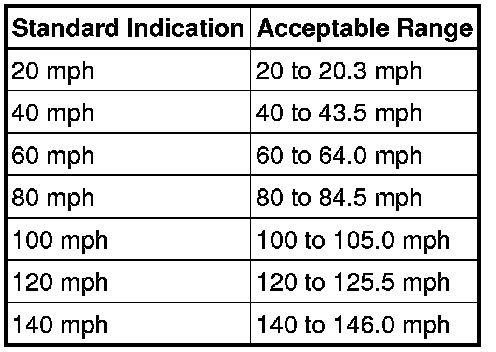

for mph

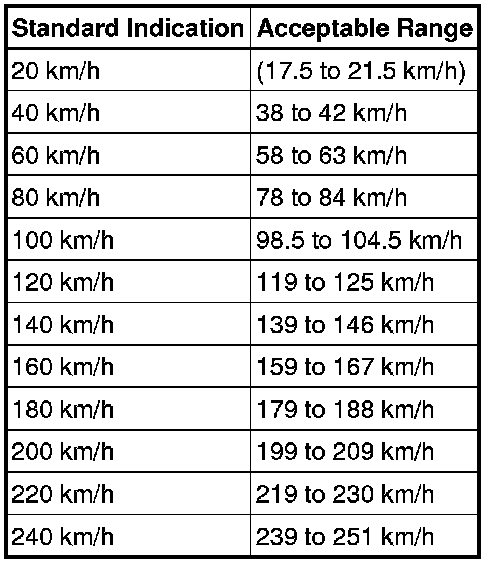

for km/h










NOTICE:
Do not use worn, underinflated or overinflated tires, as the speedometer reading will be inaccurate.

(f) Check the deflection width of the speedometer indicator.

Reference:

0.5 km/h (0.3 mph)

3. INSPECT TACHOMETER

(a) Connect a tune-up tachometer, and start the engine.

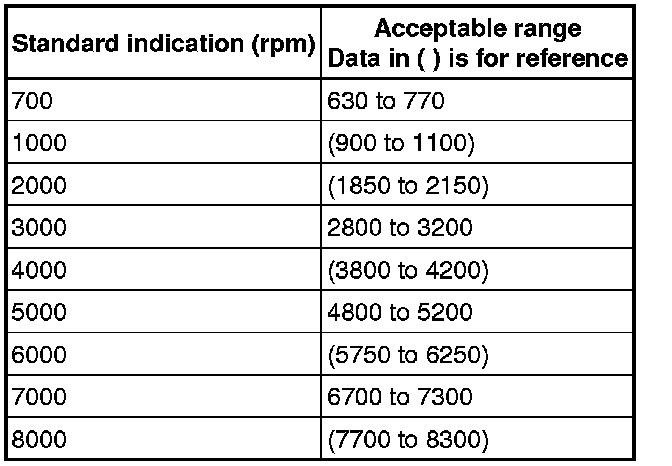

(b) Compare the test results with the tachometer indicator.

DC 13.5 V, at 25°C (77°F):





If the result is not as specified, the speedometer may have a malfunction.

4. INSPECT ENGINE OIL PRESSURE WARNING

(a) Disconnect the connector from the engine oil pressure switch.

(b) Turn the engine switch on (IG).

(c) Ground the terminal of the wire harness side connector for 10 seconds or more, and then check the low oil pressure warning light.

OK:

Oil pressure warning message comes on.

5. INSPECT ENGINE OIL LEVEL WARNING

(a) Disconnect the engine oil level sensor connector for 40 seconds or more.

(b) Turn the engine switch on (IG), and check the multi-information display.

OK:

Low engine oil level message is displayed.

6. INSPECT MULTI-INFORMATION DISPLAY

(a) Multi-information display test is available in "ACTIVE TEST" or "Active Test" Scan Tool Testing and Procedures.
