Fail-Safe Chart
METER: METER / GAUGE SYSTEM: FAIL-SAFE CHART
Engine coolant temperature gauge:

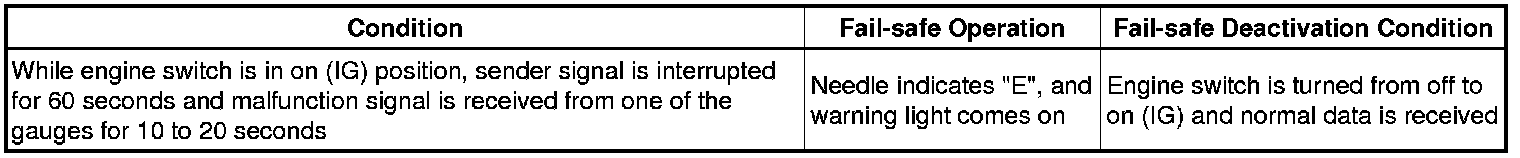

Fuel signal (Fuel injection signal):

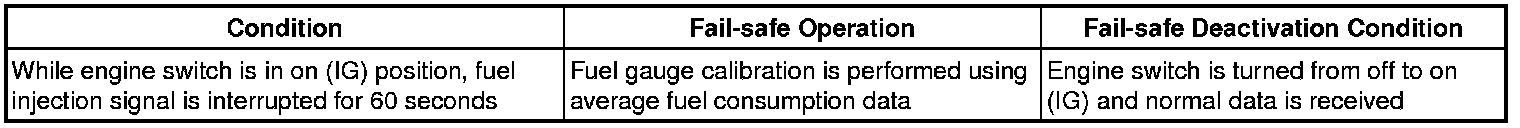

Fuel signal (Gauge signal):

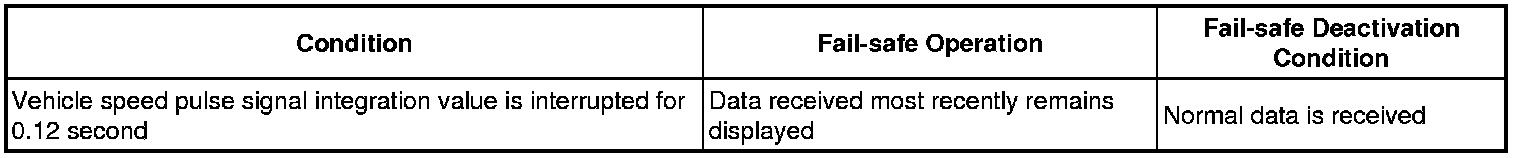

Odometer:

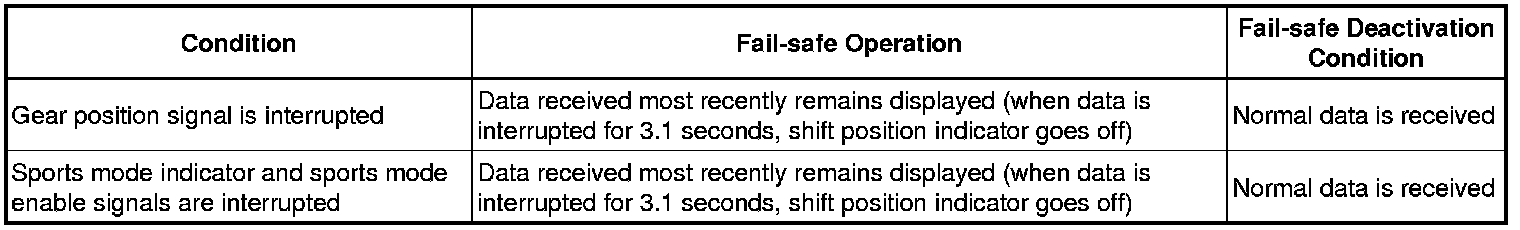

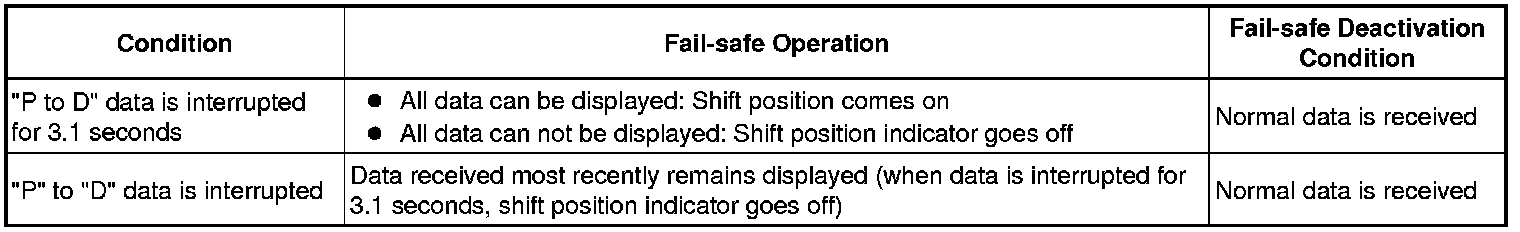

A/T shift position indicator:
Sports shift position indicator:

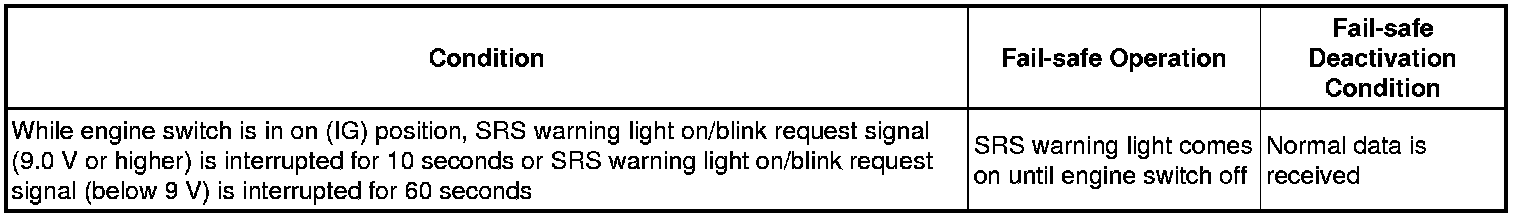

SRS warning light:

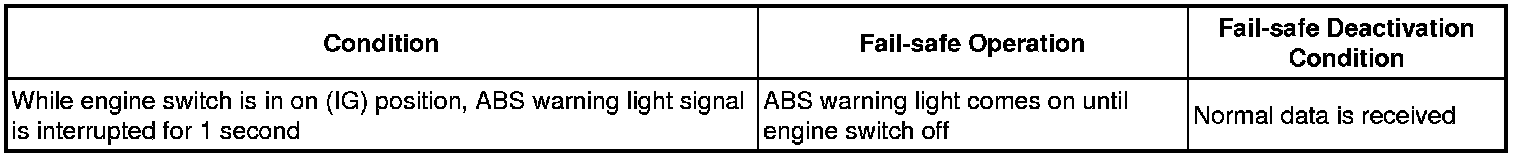

ABS warning light:

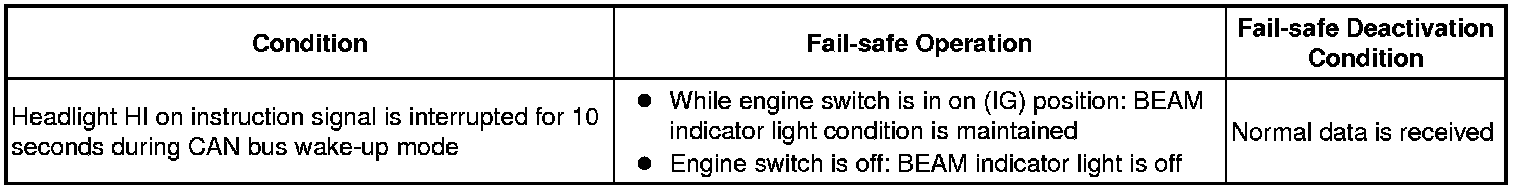

BEAM indicator light:

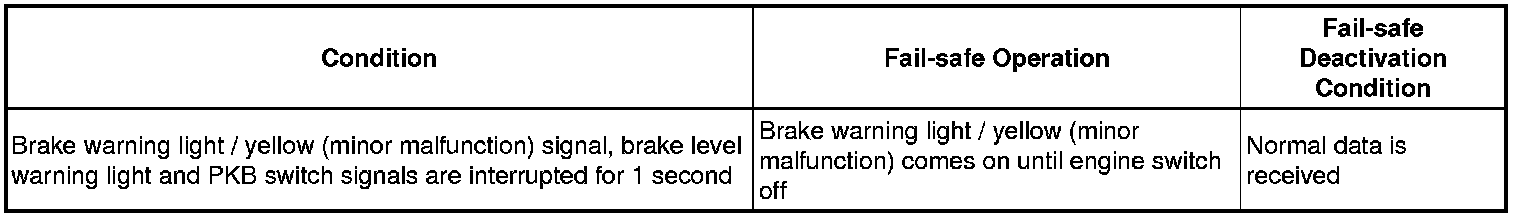

Brake warning light / Yellow (Minor malfunction):

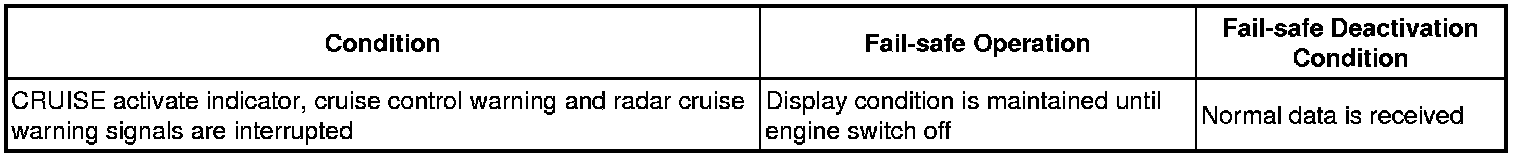

CRUISE main indicator light (w/ Cruise control system, Dynamic radar cruise control system):
Driver side seat belt warning light:

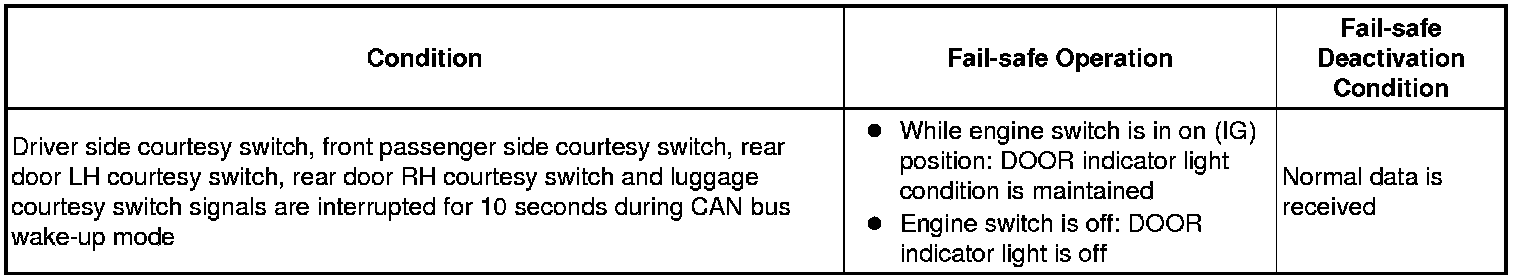

DOOR indicator light:
Brake warning light / Red (Malfunction):

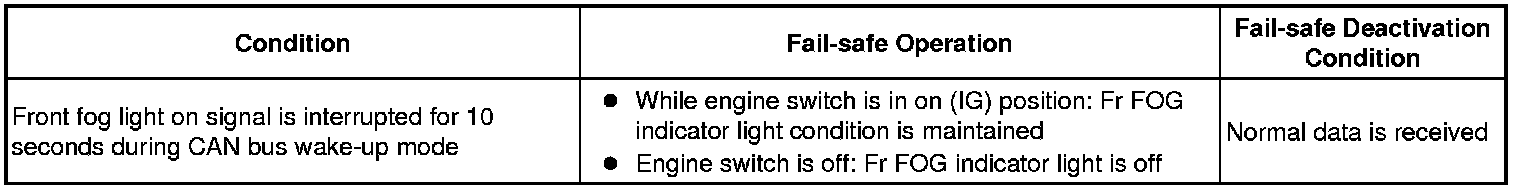

Fr FOG indicator light:
Rr FOG indicator light (for Except U.S.A.):

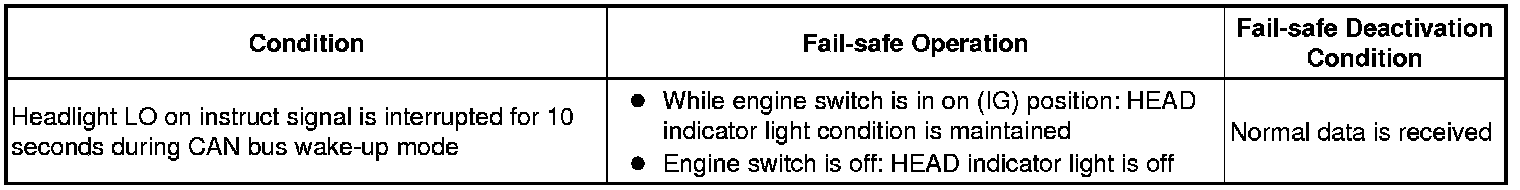

HEAD indicator light:

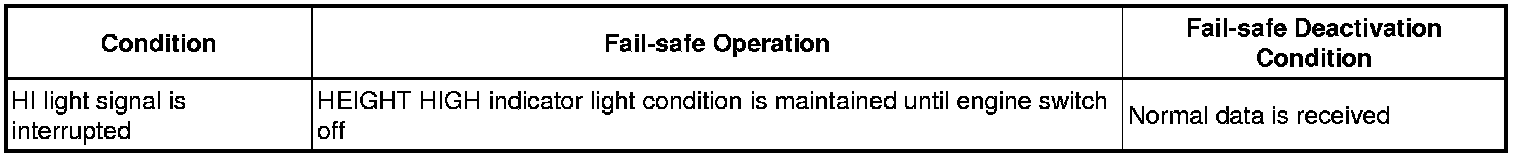

HEIGHT HIGH indicator light:

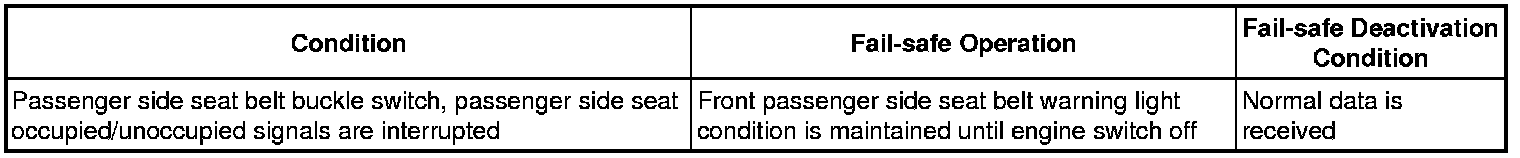

Front passenger side seat belt warning light:

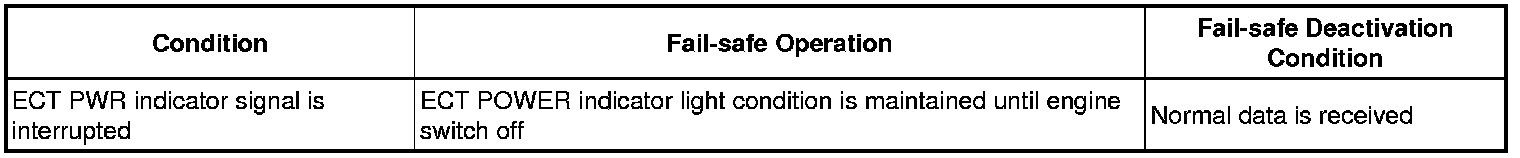

ECT POWER indicator light:
SLIP indicator light:
ECT SNOW indicator light:
TAIL indicator light:

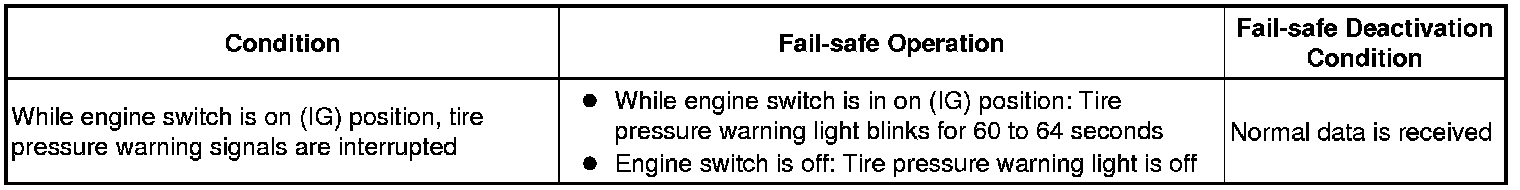

Tire pressure warning light:

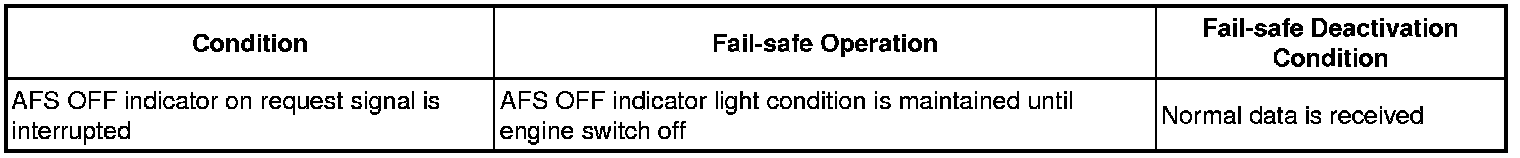

AFS OFF indicator light:

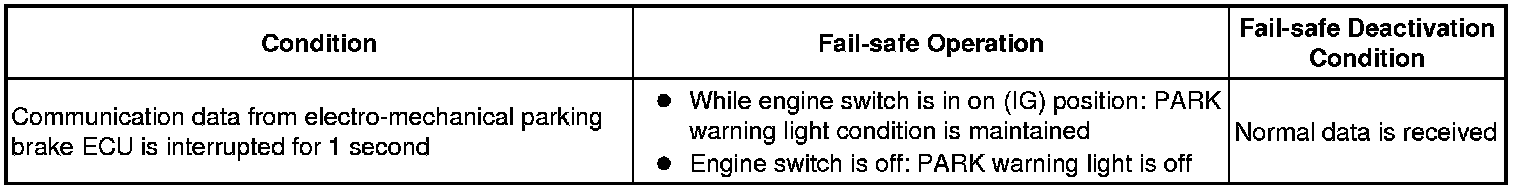

PARK warning light:

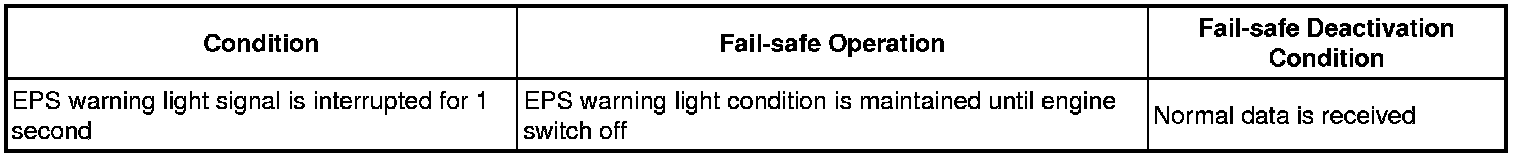

EPS warning light:
