Driver / Vehicle Information Display Switch: Testing and Inspection

METER: TRIP SWITCH: INSPECTION

1. INSPECT TRIP SWITCH

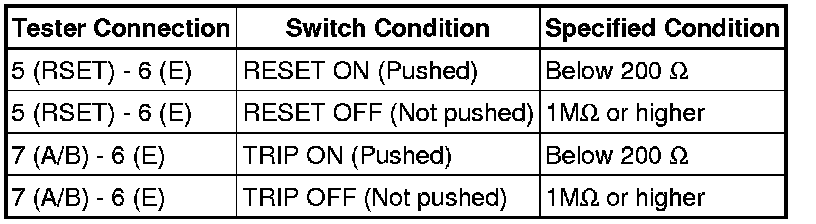

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the switch.

(b) Inspect the switch illumination.

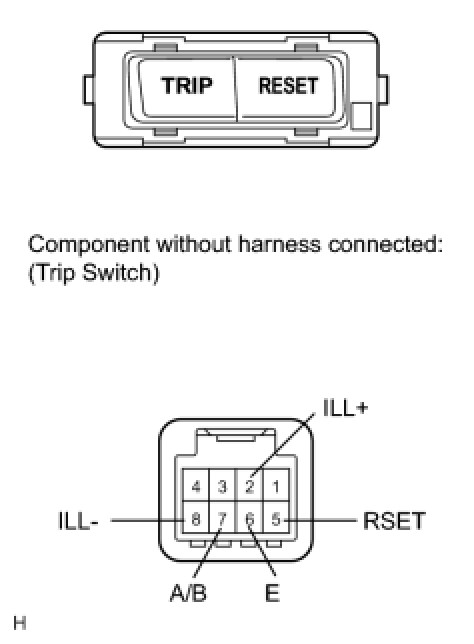

(1) Connect the battery positive (+) lead to terminal 2 (ILL+) and the negative (-) lead to terminal 8 (ILL-), then check that the light comes on.

OK:

LED comes on.

If the result is not as specified, replace the LED.
