Pinout Values and Diagnostic Parameters

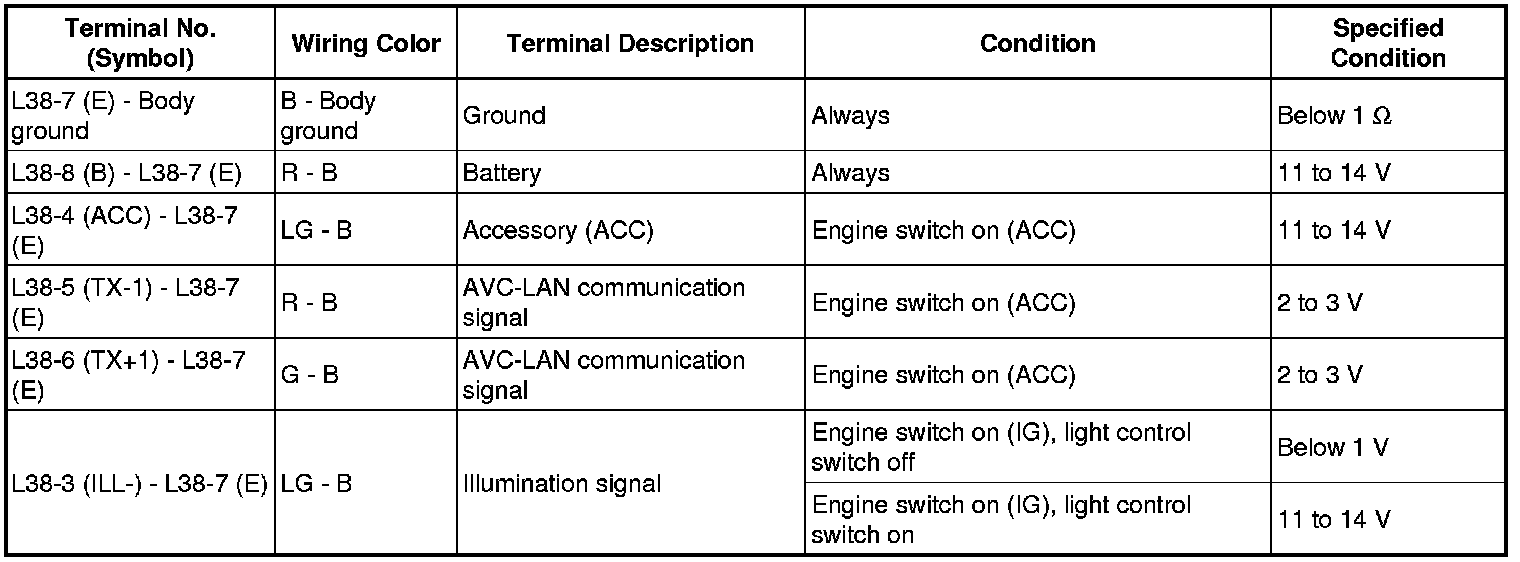

OTHER SYSTEM: CLOCK SYSTEM (w/ Multi-display): TERMINALS OF ECU

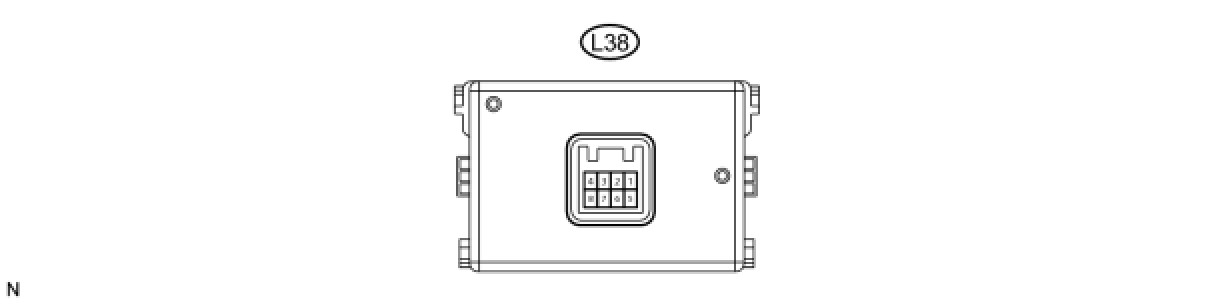

1. CHECK CLOCK ASSEMBLY
