Clock Power Source Circuit

OTHER SYSTEM: CLOCK SYSTEM (w/ Multi-display): Clock Power Source Circuit
- Clock Power Source Circuit

DESCRIPTION

The circuit provides power to the clock.

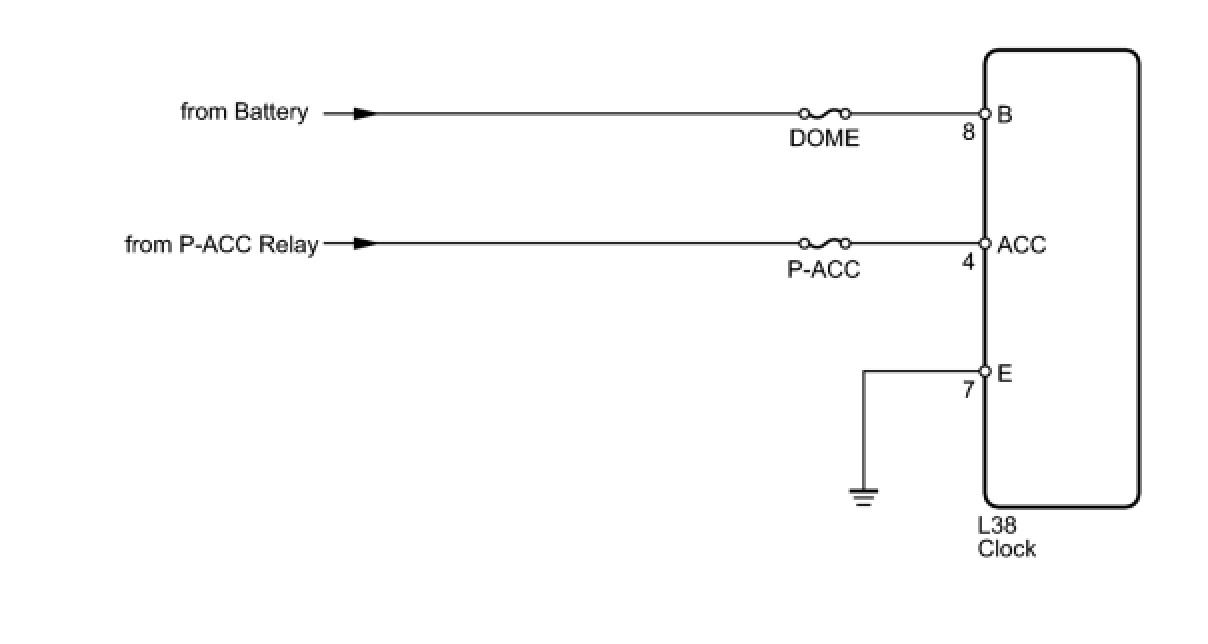

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (CLOCK - BATTERY AND BODY GROUND)

(a) Disconnect the L38 clock assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Measure the voltage according to the value(s) in the table below.

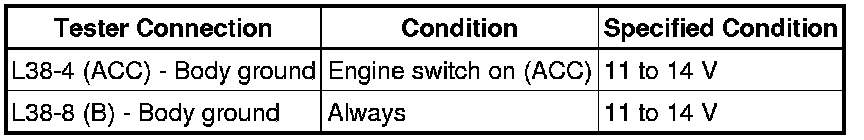

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
