Removal

OTHER SYSTEM: CIGARETTE LIGHTER (for Ottoman): REMOVAL

1. REMOVE REAR SEAT CONSOLE ARMREST BASE Disassembly

2. REMOVE REAR CIGARETTE LIGHTER COVER





(a) Remove the cover.

3. REMOVE REAR CIGARETTE LIGHTER ASSEMBLY

(a) Remove the cigarette lighter knob and element.

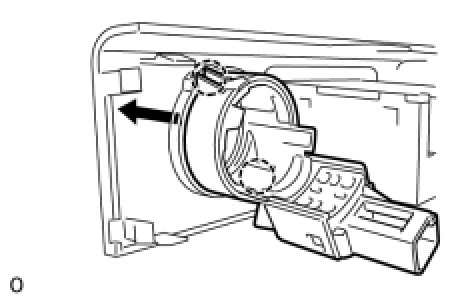

(b) Using a screwdriver, detach the claw and remove the cigarette lighter socket and retainer.





HINT
Tape the screwdriver tip before use.

4. REMOVE REAR CIGARETTE LIGHTER BEZEL STAY

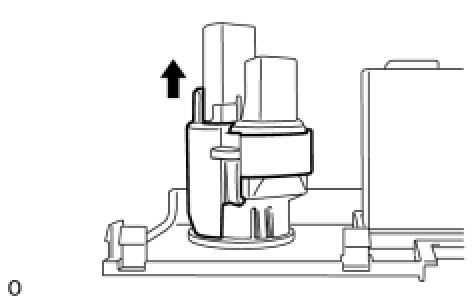

(a) Detach the 2 claws and remove the bezel stay.
