Check Mode Procedure





AIR CONDITIONING: AIR CONDITIONING SYSTEM: CHECK MODE PROCEDURE

1. LIST OF OPERATION METHODS

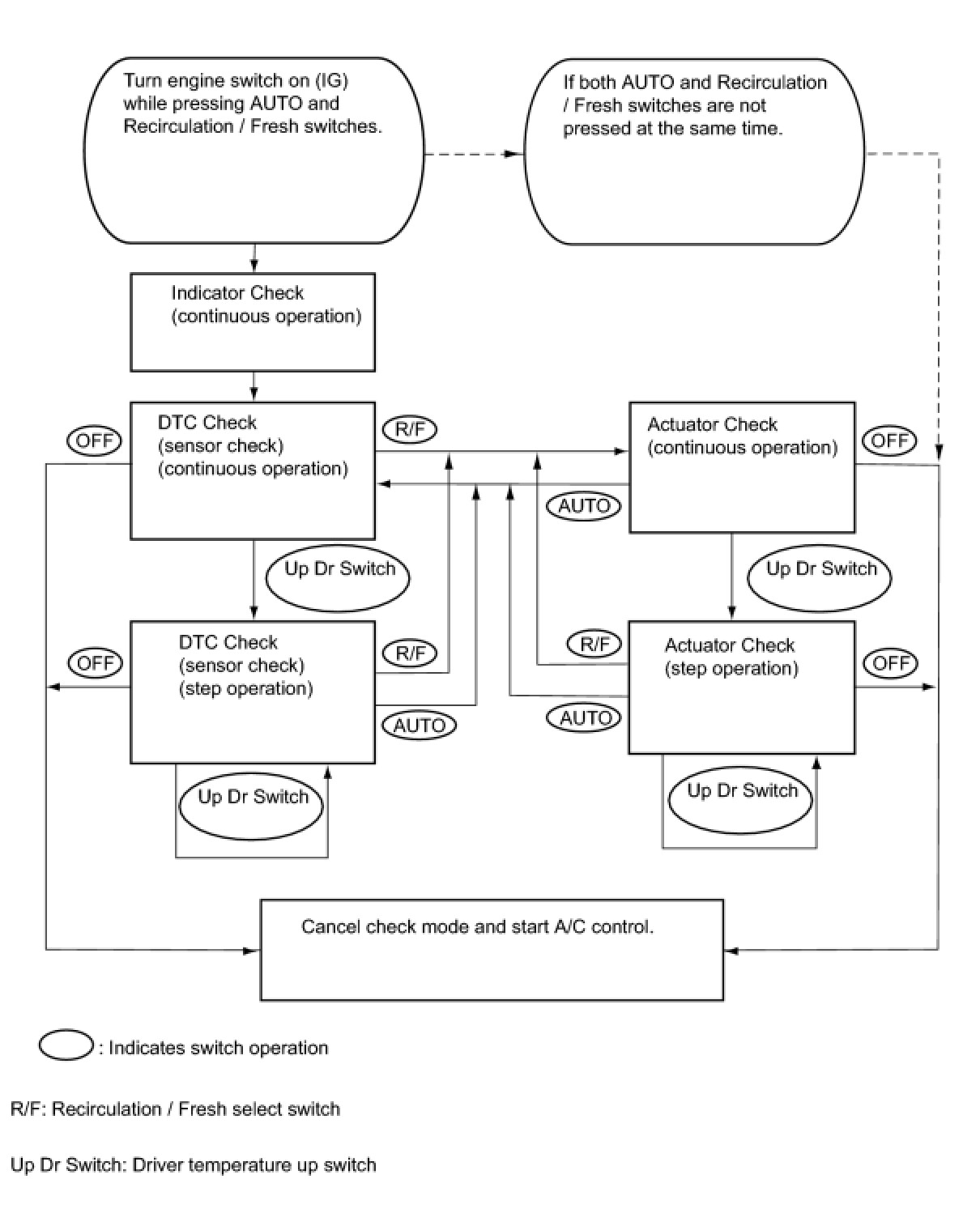

By operating each of the A/C control switches as shown in the diagram below, it is possible to enter the diagnostic check mode.
