Removal





AIR CONDITIONING: SOLAR SENSOR (for Rear Side): REMOVAL

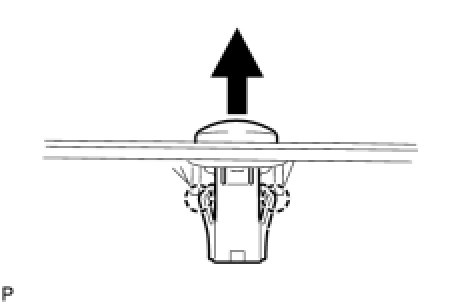

1. REMOVE SOLAR SENSOR





(a) Detach the 2 claws.

(b) Disconnect the connector and remove the sensor.
