Removal

AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Rear Side): REMOVAL

1. REMOVE ROOM TEMPERATURE SENSOR

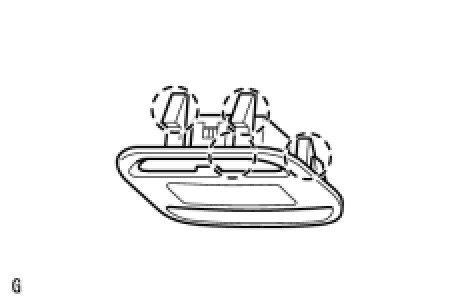

(a) Using a screwdriver, detach the 4 claws and remove the sensor, and then disconnect the connector.
