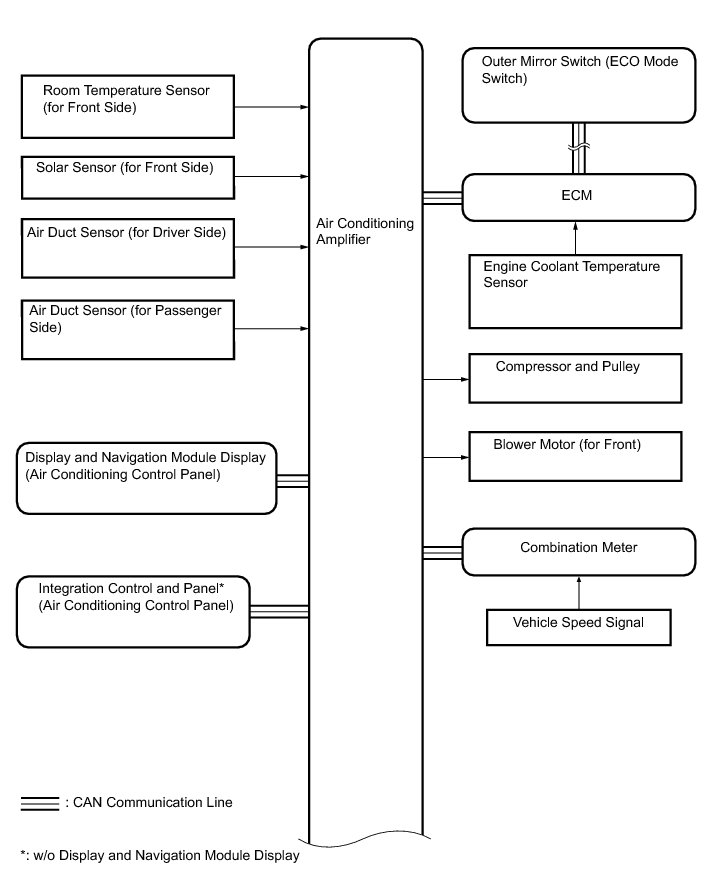

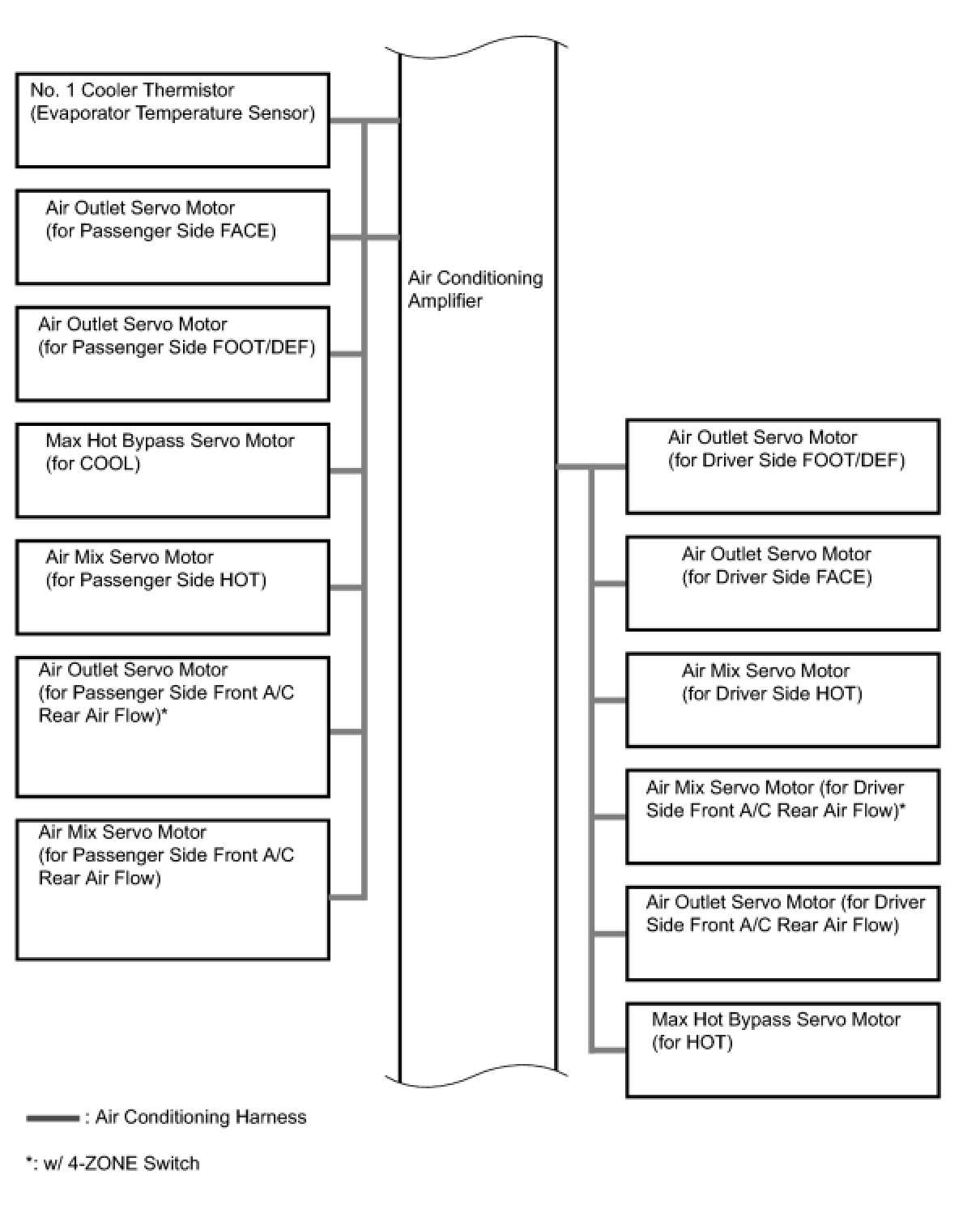

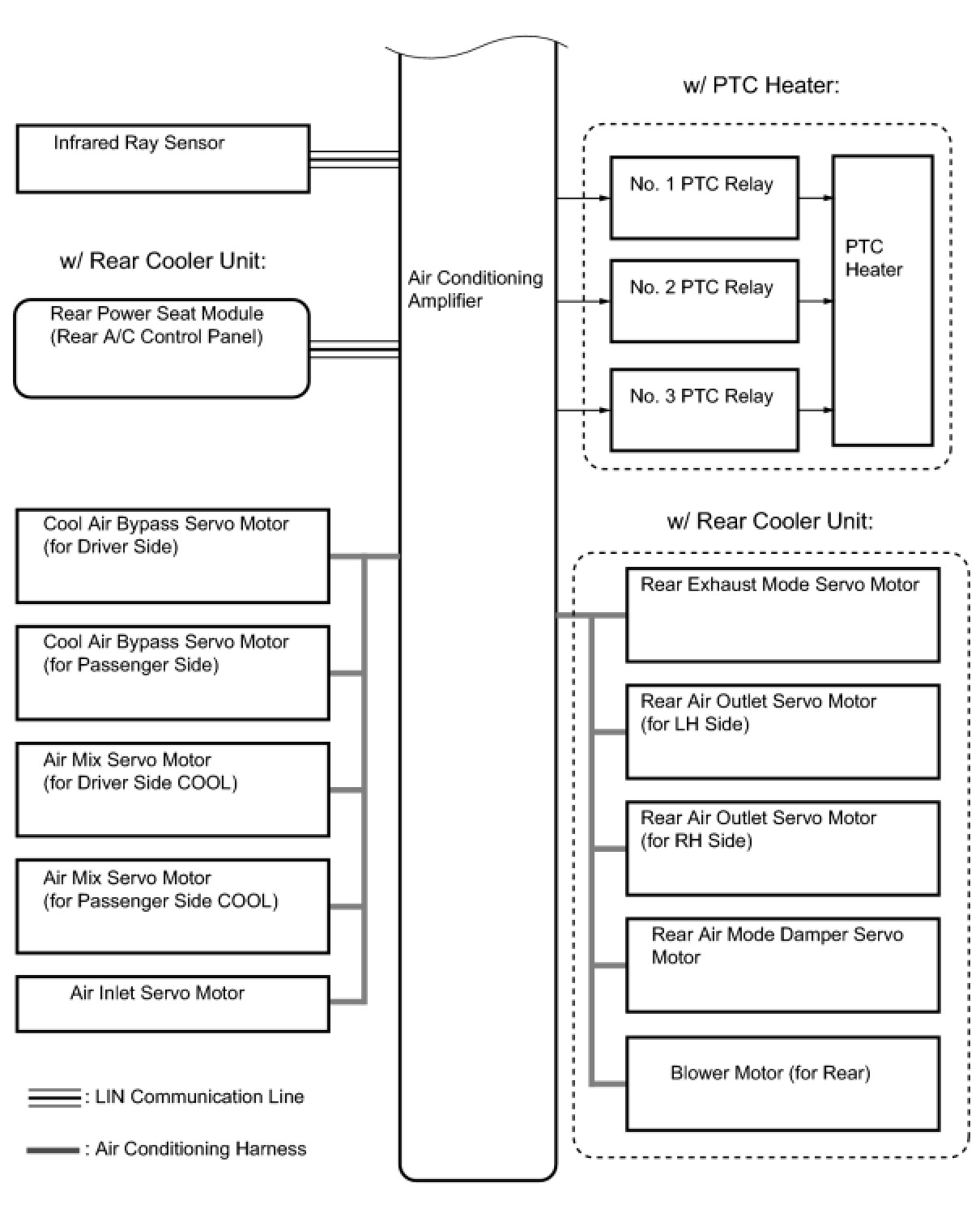

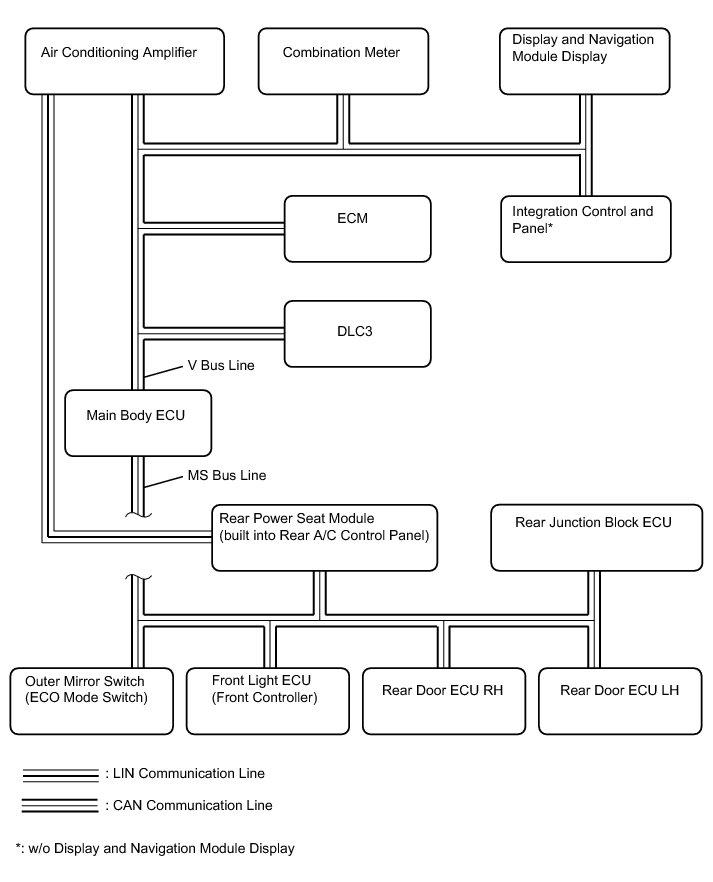

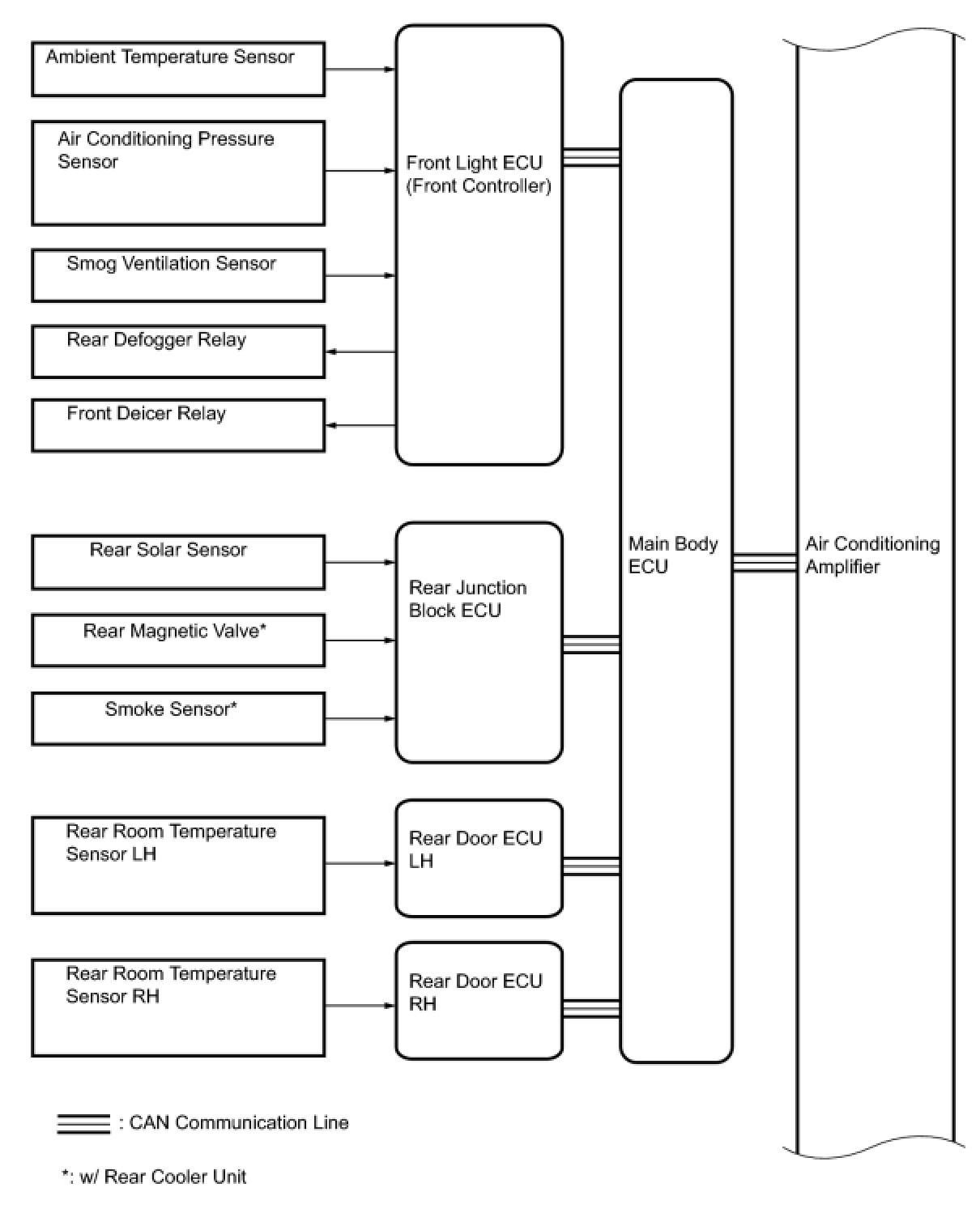

System Diagram





AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAM

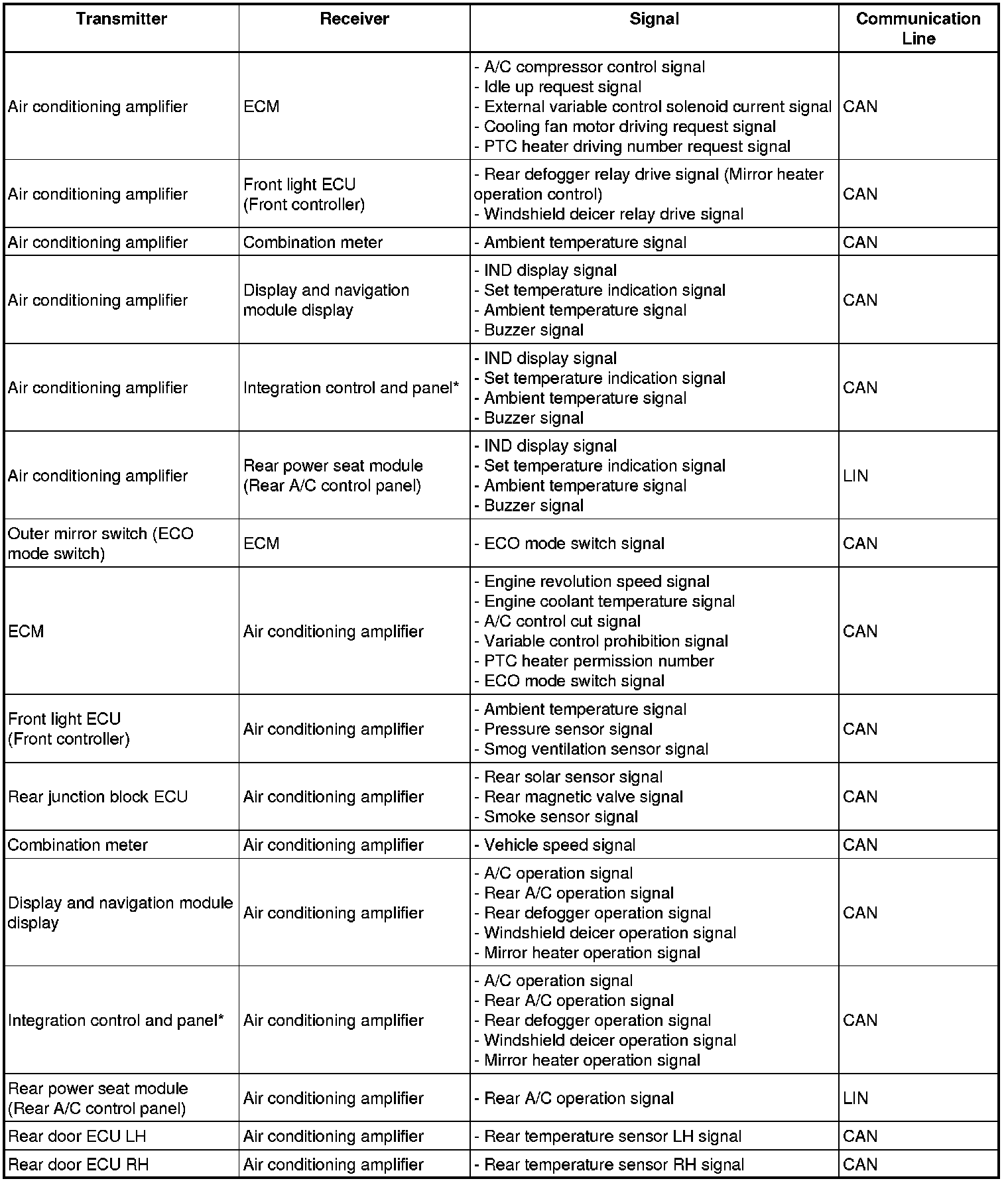

Communication table





HINT
*: w/o Display and Navigation Module Display
