Radiator Cooling Fan Motor: Testing and Inspection

1UR-FSE COOLING: COOLING FAN MOTOR (for AWD): ON-VEHICLE INSPECTION

1. CHECK COOLING FAN MOTOR

(a) Disconnect the cooling fan motor connector.

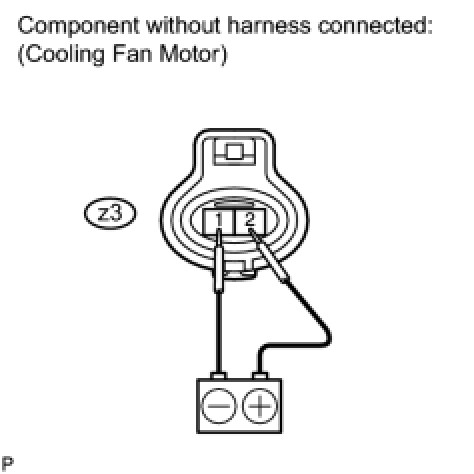

(b) Check that the motor turns smoothly when the battery is connected to the fan motor connector.

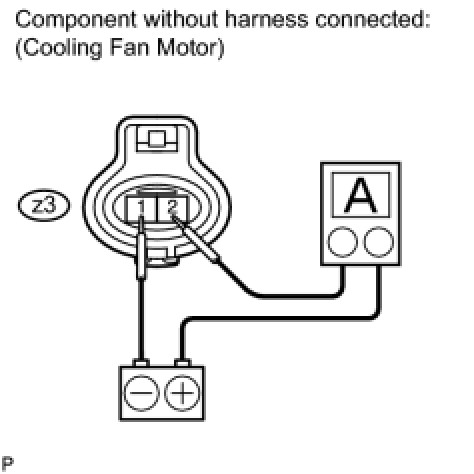

(c) Measure the current according to the value(s) in the table below.





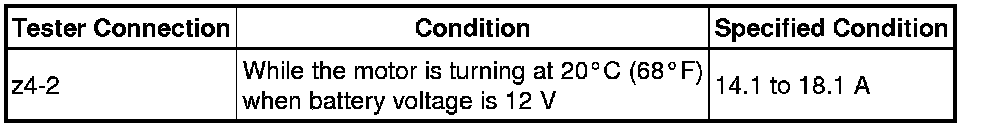

Standard current:





If the result is not as specified, replace the cooling fan motor.

2. CHECK NO. 2 COOLING FAN MOTOR

(a) Disconnect the cooling fan motor connector.

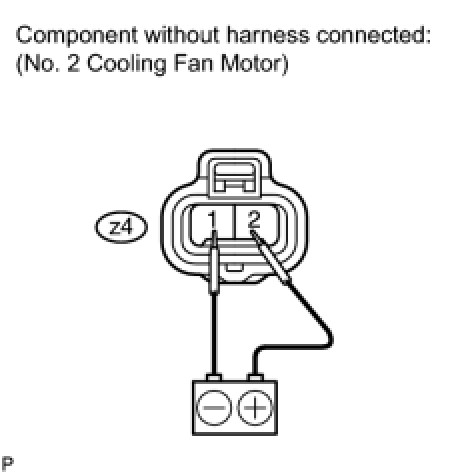

(b) Check that the motor turns smoothly when the battery is connected to the fan motor connector.





(c) Measure the current according to the value(s) in the table below.





Standard current:





If the result is not as specified, replace the No. 2 cooling fan motor.
