Installation

1UR-FSE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

(a) Install a new gasket to the engine coolant temperature sensor.

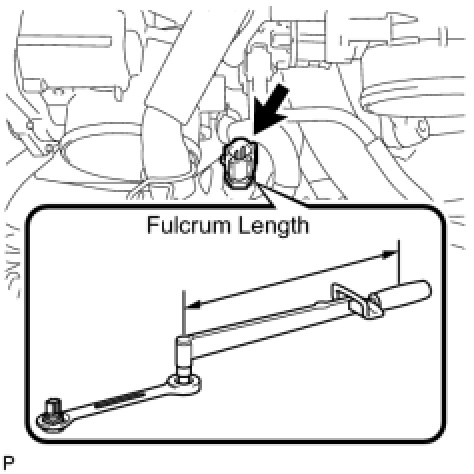

(b) Using a 19 mm ball joint lock nut wrench, install the sensor.

with ball joint lock nut wrench - Torque : 13 Nm (133 kgf-cm, 10 ft-lbf)

without ball joint lock nut wrench - Torque : 20 Nm (200 kgf-cm, 14 ft-lbf)





NOTICE:
Do not use a tool such as an impact wrench or equivalent.

HINT
* Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
* Make sure the ball joint lock nut wrench and torque wrench are connected in a straight line.

(c) Connect the engine coolant temperature sensor connector.

2. ADD ENGINE COOLANT Service and Repair

3. INSPECT FOR COOLANT LEAK Component Tests and General Diagnostics

4. INSTALL INTAKE AIR CONNECTOR PIPE Installation

5. INSTALL NO. 1 AIR CLEANER INLET Installation

6. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

7. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

8. INSTALL NO. 1 ENGINE UNDER COVER Service and Repair
